4.3 Inch Screen Coin Usb Digital Microscope For Circuit Board Repair 150x

Product Details:
Place of Origin: Shenzhen , China
Brand Name: Neutral / Customization
Certification: CE/FCC/RoHS
Model Number: DM041
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Neutral / Customization Giftbox / 16pcs per carton
Delivery Time: 6~36 working days
Payment Terms: L/C, T/T, Western Union, D/A, D/P
Supply Ability: 60000pcs/month
  • Detail Information
  • Product Description

Detail Information

Model Name: DM041 Polarizer: Yes
Magnification: Real 10x~150x, Up To 500x By Digital Zoom Connection: 4.3 Inch LCD / USB 2.0 To PC
PC Software: DigiCapture Pro (Customizable) Customized Support: OEM / ODM / OBM
High Light:

4.3 Inch Usb Digital Microscope For Circuit Board Repair

,

150x Usb Digital Microscope For Circuit Board Repair

,

150x coin microscope with screen

Product Description

4.3 Inch LCD Screen Portable USB Electron Microscope for Teaching , Circuit Boards , Observing Antiques , Jewelry Identification



1: 1x-500x continuous zoom in and out , adjustable bracket , free adjustment of the distance between the lens and the object.

2: The 1050mAh rechargeable lithium ion battery on the host provides power support for 8 LED lights.



Product Specification:

Model Model Name DM041
Features Screen Size 4.3 inch
Connection 4.3 inch LCD / USB 2.0 to PC
Image Sensor 0.3 Megapixel 1/6.5" CMOS Image Sensor
Photo Resolution 2MP / 1.3MP / VGA
Video Resolution 1280*720 / 640*480 / 320*240
Magnification Ratio Real 10x~150x, Up To 500x By Digital Zoom(Based On 21 inch Display)
Light Source 8Pcs SMT White LED
LED Brightness Adjustable Yes
Focus Range From 0mm to 55mm on metal stand
Lens Type Optical Glass
Advantage Switchable Polarizer Yes
Brand Name Toproview / Neutral / Customization
Customized Support OEM / ODM / OBM
Certification CE / FCC / RoHS
Focus Mode Manual Continuous Focus
Rechargeable And Replaceable Battery 1050mAh BL-5C Lithium-Ion
SD Card Slot Support SD Card Storage Up To 32G (Not Included In The Neutral Package)
Warranty 1 Year
Software PC Software DigiCapture Pro (Customizable)
PC Software Supported Operation Systems Windows 7 / 8 / 10 , macOS 11.2.1 or above
PC Software OSD Language There Are 16 Languages Built In The Software
PC Software With Professional Measurement Yes
PC Software Support Four Display Concurrently Yes
PC Software Support Photo,Video Recording,Timed Photo And Timed Video Yes
PC Software Support Plug and Play Yes
Package details Accessories CD, USB Cable,Rechargeable Battery,Calibration Ruler, Metal Stand
Body Dimension 235x123x65mm
Gross Weight 0.2KG
Gift Box 27.5*18.5*10.5cm
Gross Weight 0.75KG
Carton Box 46.5*33*37.5cm
Gross Weight 13.5KG
Carton 16Pcs



Product Advantages:

1: Observe microscopic details , widely used in teaching , circuit boards , antique observation , jewelry appraisal , PCB repair , welding ,precision painting.

2: Amazing images and videos on a 4.3-inch screen.Its head rotates smoothly, making it easy to use the microscope.Precise focusing allows the specimen to be focused quickly and clearly.

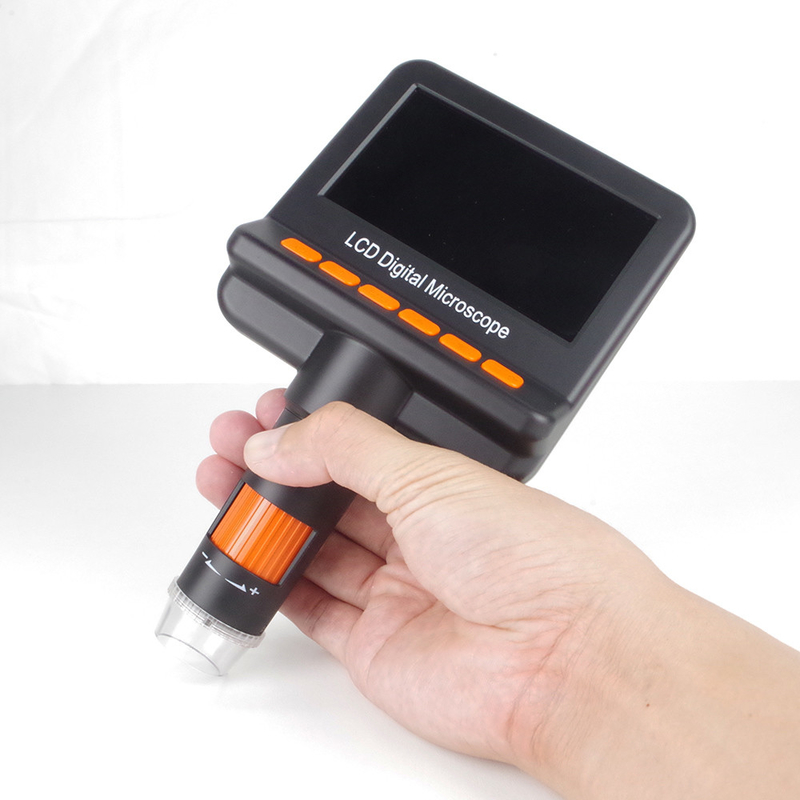

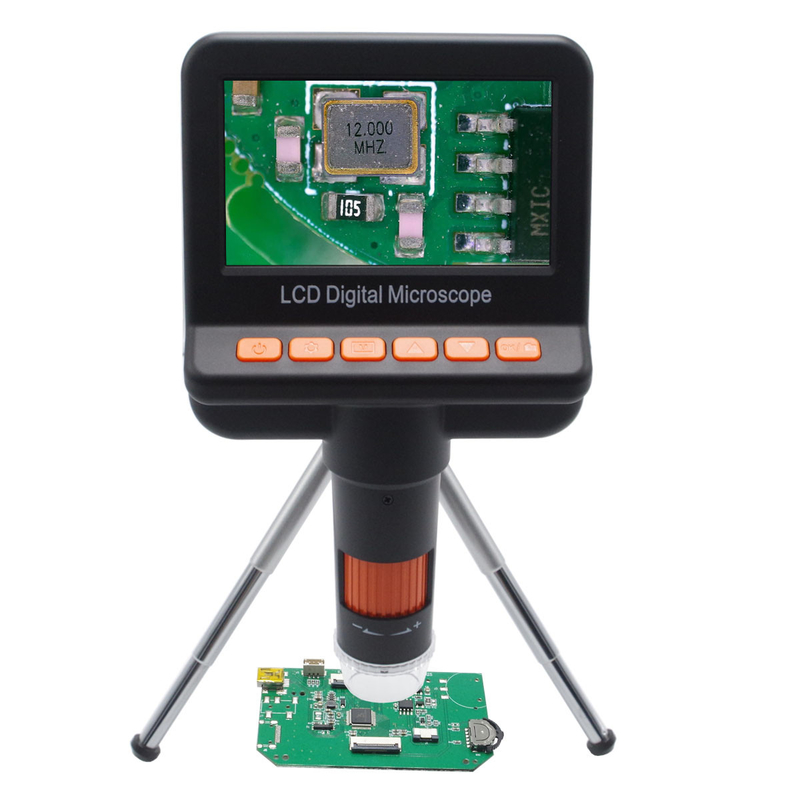

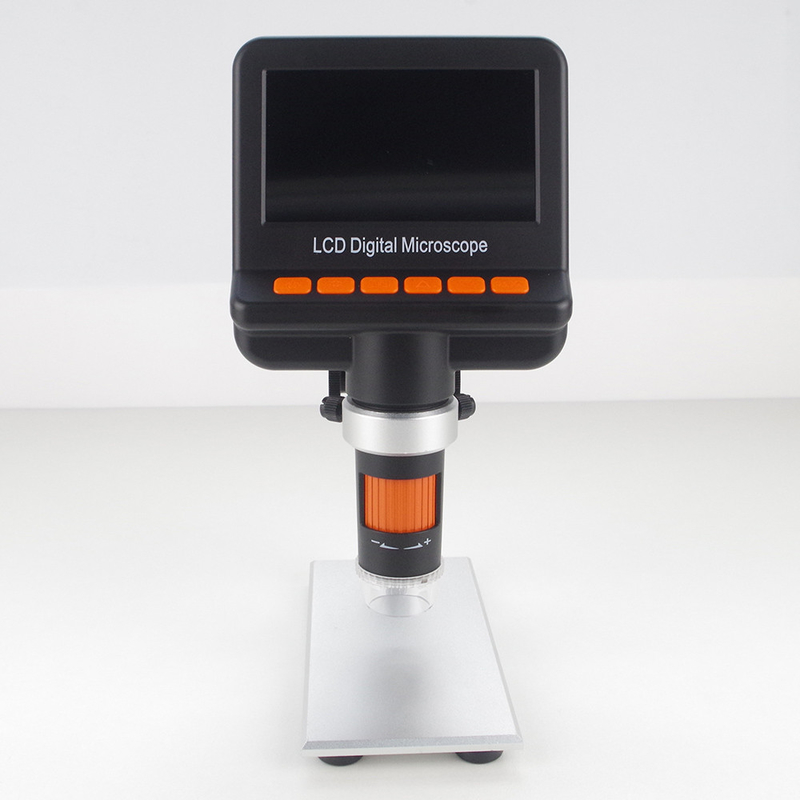

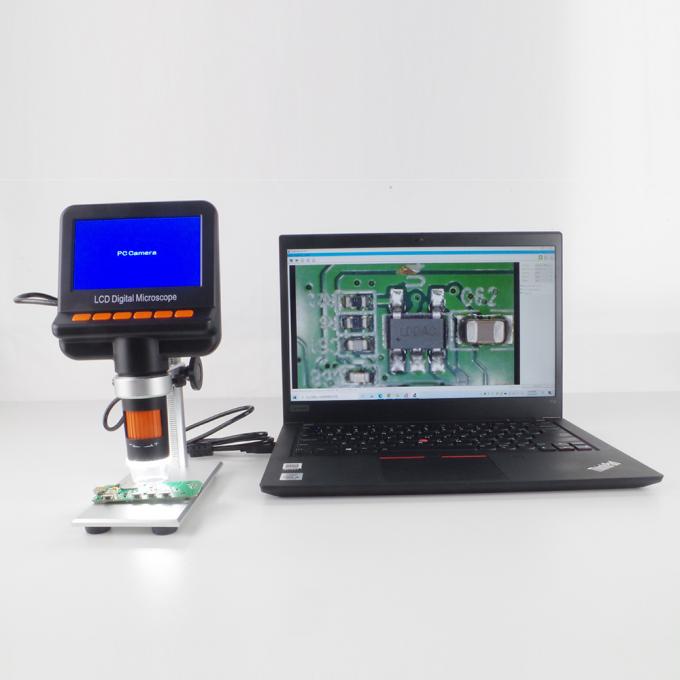

Product picture:

4.3 Inch Screen Coin Usb Digital Microscope For Circuit Board Repair 150x 0



FAQ:

4.3 Inch Screen Coin Usb Digital Microscope For Circuit Board Repair 150x 1
