Shenzhen Toproview Technology Co., Ltd

1280x720 Mini USB Electron Microscope FCC Plugable Digital Usb Microscope IOS

Product Details:
Place of Origin: Shenzhen , China
Brand Name: Neutral / Customization
Certification: CE / FCC / RoHS
Model Number: DM023A
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Neutral / Customization Giftbox / 20pcs per carton
Delivery Time: 6~36 working days
Payment Terms: L/C, T/T, Western Union, D/A, D/P
Supply Ability: 60000pcs/month
  • Detail Information
  • Product Description

Detail Information

Model Name: DM023A Switchable Polarizer: Yes
Resolution: 1920*1088 / 1280*720 / 864*480 Light: 8Pcs SMT White LED
Battery: 2000mAh Lithium-Ion Brand Name: Toproview / Neutral / Customization
High Light:

1280x720 Mini USB Electron Microscope


USB Electron Microscope FCC


FCC Plugable Digital Usb Microscope IOS

Product Description

1080P Portable WiFi Mini USB Electron Microscope 10X-200X Magnification With 8 LED Lights Compatible With Android , iOS , MAC , Windows


1: It’s easy to charge and the battery lasts about 2.5 hours after fully charged, is very convenient, and is environmentally friendly.

2: This USB Electron Microscope can provide high quality 1080p images for clearer viewing.


Product Specification:

Model Model Name DM023A
Features Connection WiFi to Smart Devices / USB 2.0 to PC
Image Sensor 2 Megapixel CMOS
Photo And Video Resolution 1920*1088 / 1280*720 / 864*480
Magnification Ratio Real 10x~200x(Based On 24 inch Display)
Max.Frame Rate 25 fps at 2MP Output
Light Source 8Pcs SMT White LED
LED Brightness Adjustable Yes
Focus Range From 0mm to 110mm
Lens Type Optical Glass
Brand Name Toproview / Neutral / Customization
Customized Support OEM / ODM / OBM
Certification CE / FCC / RoHS
Advantage Switchable Polarizer Yes
Capture Microtouch On Microscope Yes
Recording Button On Microscope Yes
Digital Zoom Button On Microscope Yes
Rechargeable And Replaceable Battery 2000mAh 18650 Lithium-Ion
Battery Working Time Continue working for 2.5 hours
Charging Time 2.5hrs (When WiFi Digital Microscope Power Off)
SD Card Slot Support SD Card Storage Up To 32G (Not Included In The Neutral Package)
Warranty 1 Year
Software APP for Smart Devices Topscope Pro (Customizable)
APP Supported Operation Systems iOS 12.0 or later, Android 4.2 or later
APP Supported Photo And Video Recording Yes
APP Supported Battery Capacity Display Yes
PC Software DigiCapture Pro (Customizable)
PC Software Supported Operation Systems Windows 7/8/10 , macOS 11.2.1 or above
PC Software OSD Language There Are 16 Languages Built In The Software
PC Software With Professional Measurement Yes
PC Software Support Four Display Concurrently Yes
PC Software Support Photo,Video Recording,Timed Photo And Timed Video Yes
PC Software Support Plug and Play Yes
Package details Accessories CD, USB cable,replaceable battery,calibration ruler,metal stand,Quick Start Guide
Body Dimension 16.6*4.5*4.0cm
Gross Weight 0.2KG
Gift Box 26*18*8cm
Gross Weight 0.65KG
Carton Box 54.2*37*42cm
Gross Weight 14.5KG
Carton 20Pcs


Product Advantages:

1: To use the microscope on the PC, connect them with the provided USB cable, which is suitable for indoor home/office use. To use the microscope on the phone/pad/tablet, just connect them with the WiFi signal (emits from the microscope) and run the App to use. Lightweight and small size allows you to bring it outside easily, very suitable for outdoor use.

2: The microscope can be wildly used to coin/stamp collection, Printed Circuit Board(PCB) check, soldering skin/scalp care, plant(rhizome) observation, jewelry/watch repair, Scientific interest development, textile quality check and etc.

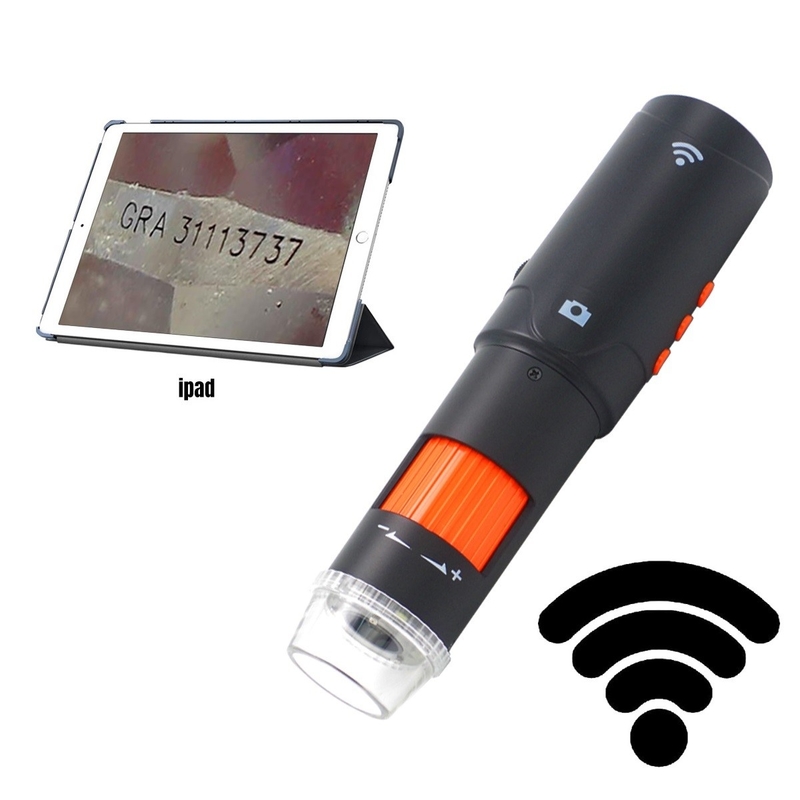

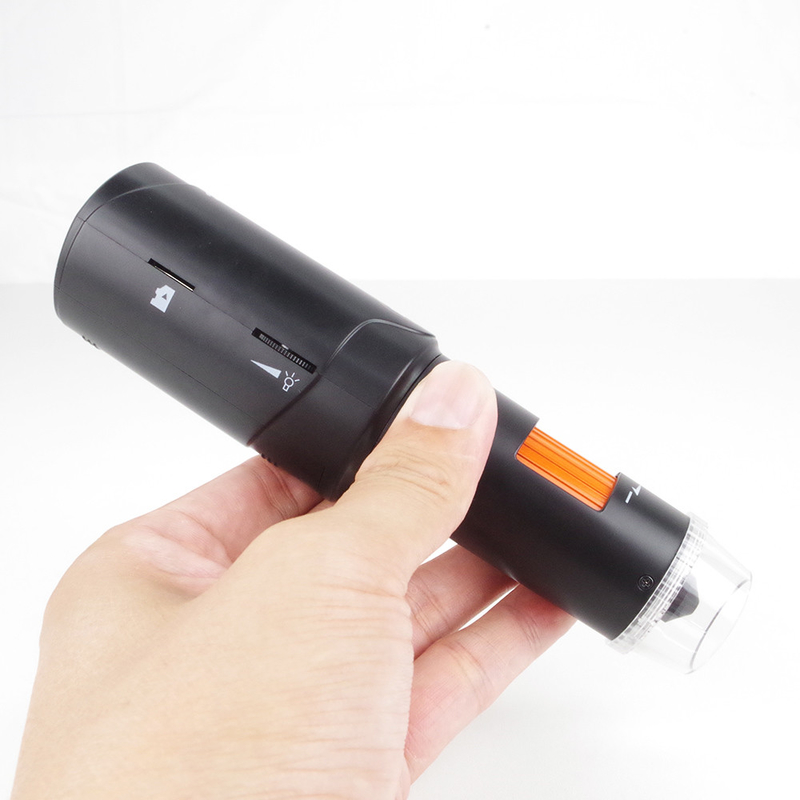

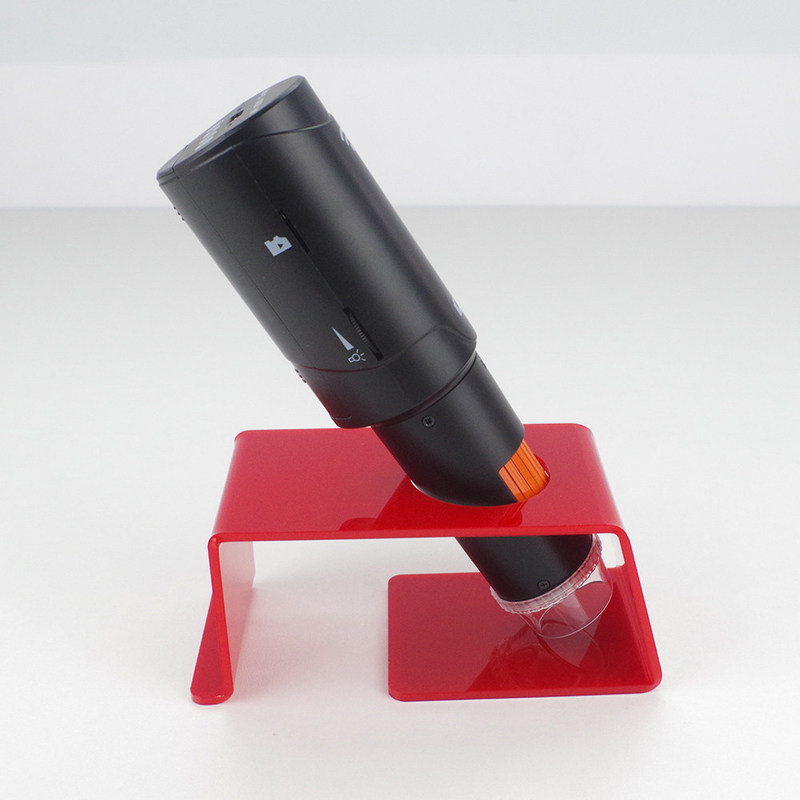

Product picture:

1280x720  Mini USB Electron Microscope  FCC Plugable Digital Usb Microscope IOS 0

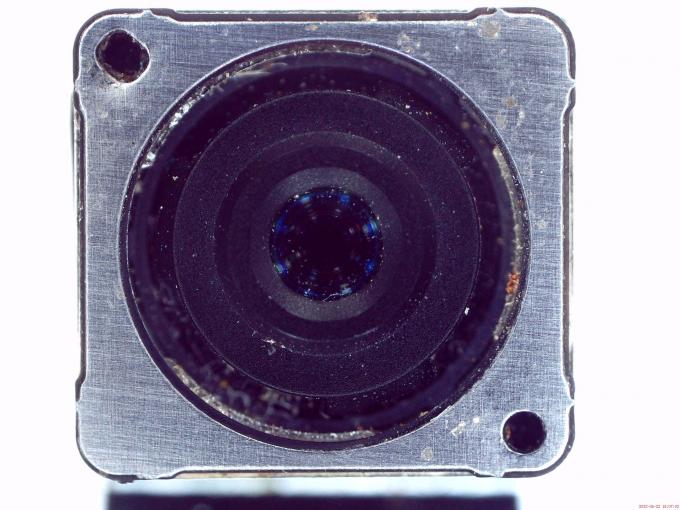

                                                   Before Polarizer Adjustment


1280x720  Mini USB Electron Microscope  FCC Plugable Digital Usb Microscope IOS 1

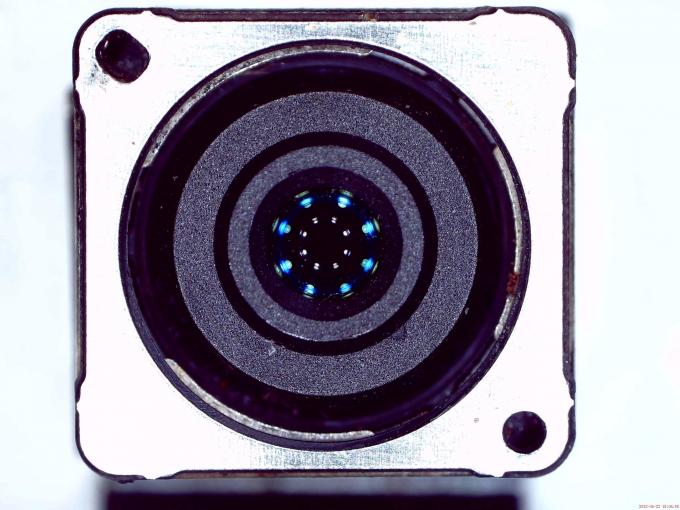

                                                           After Polarizer Adjustment



1280x720  Mini USB Electron Microscope  FCC Plugable Digital Usb Microscope IOS 2
