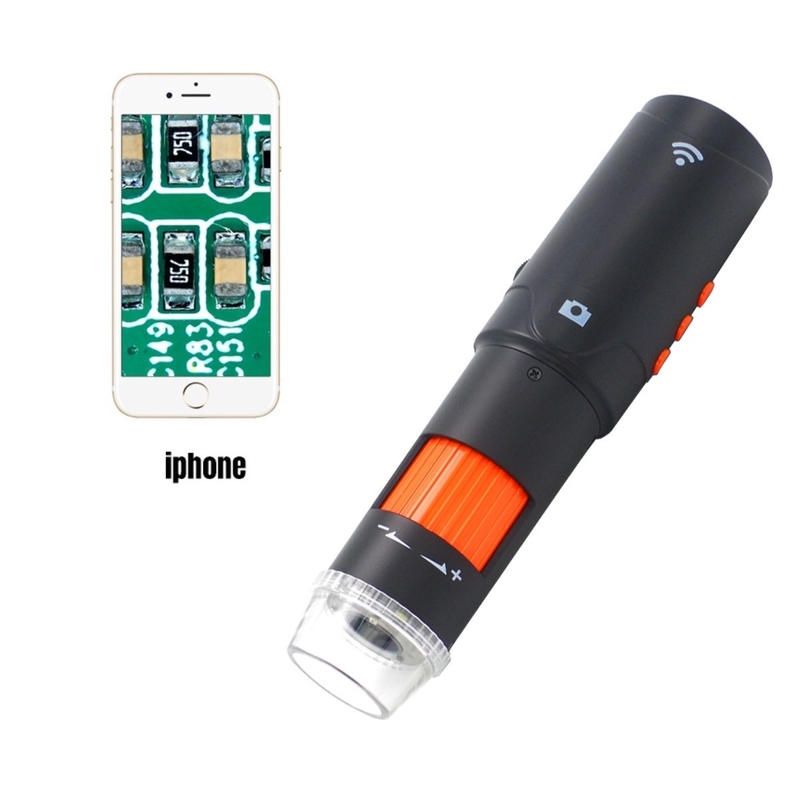

Polarizer 200X, HD 1080P Handheld USB Electron Microscope for Industry Usage
DESCRIPTION
Main Features
WIRELESS MEANS MORE - 'Cut the cord' and use a digital microscope in clinics, machine shops, in the field, under the hood, or anywhere your work takes you.* Supported operation systems for smart devices is iOS 12.0 or later, Android 4.2 or later. It wil compatible with at least 90% smart devices in the market.
* With replaceable and rechargeable battery, 18650 lithium-Ion battery 2000mAh. Support continue working up to 2.5 hours.
WIRELESS DIGITAL MICROSCOPE SPECIFICATION
|
MODEL |
Model Name |
DM023A |
|
|
Connection |

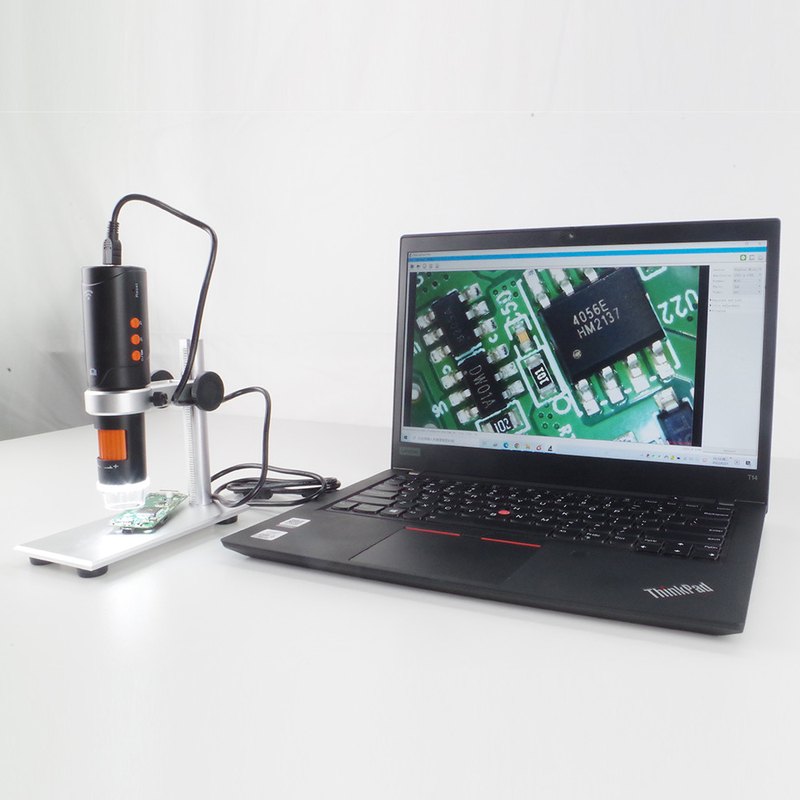

WiFi to smart devices; USB 2.0 to PC |
|
OPTICS |
Polarizer |
Yes |
|
|
Magnification |
Real 10x~200x |
|
|
Lens type |
Optical glass |
|
|
Focus range |
Manual focus 0~110mm(with stand) |
|
|
Illumination |
8 adjustable white LED |
|
SENSOR |
Sensor type |
CMOS |
|
|
Size |
2 megapixel |
|
|
Resolution |
1920*1080 |
|
|
Max.Fr |
25 fps at 2MP output |
|
FEATURES |
APP |
TopScope Pro for iOS/Android (customizable) |
|
|
Software |
DigiCapture Pro for Windows/MacOS (customizable) |
|
|
Measurement function(PC Software) |
Yes |
|
|
Supported operation systems |
iOS 12.0 or later, Android 4.2 or later |
|
|
Supported operation systems |
Windows 7/8/10,macOS 11.2.1 or above |
|
|
Capturing by microscope |
Yes, with recording button on microscope |
|
|
Recording by microscope |
Yes, with digital zoom button on microscope |
|
|
Certification |
CE/FCC/RoHS |
|
REPLACEABLE BATTERY |
18650 Lithium-Ion Battery |
2000mAh rechargeable and replaceable |
|
|
Battery working time |
Continue working for 2.5 hours |
|
|
Charging time |
2.5hrs (when WiFi Digital Microscope power off) |
|
PHYSICAL |
Body dimensions |
16.6*4.5*4.0cm |
|
|
Gross weight |
0.2kg |
|
|
Stand |
Metal stand for neutral product; support to customize |
PACKING WAYS
Neutral product with individual box, 16pcs per carton.
According to export standard packing.
FAQ
Q: Do you offer custom solution?
Toproview: Yes, we can offer custom solution if standard products couldn't meet buyer' requirements. OEM&ODM order are welcome.
Q:Why choose Toproview microscopes?
Toproview: If the selection of products do not meet your needs, custom options are available
