1.3MP USB Electron Microscope 250x Digital Microscope For Pcb Inspection Portable

Product Details:
Place of Origin: Shenzhen , China
Brand Name: Neutral / Customization
Certification: CE / FCC / RoHS
Model Number: DM022C
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Neutral / Customization Giftbox / 16pcs per carton
Delivery Time: 6~36 working days
Payment Terms: L/C, T/T, Western Union, D/A, D/P
Supply Ability: 60000pcs/month
  • Detail Information
  • Product Description

Detail Information

Model Name: DM022C Switchable Polarizer: Yes
Magnification Ratio: Real 10x~250x Resolution: 5MP / 4MP / 3MP / 2MP / 1.3MP
PC Software: DigiCapture Pro (Customizable) Warranty: 1 Year
High Light:

1.3MP USB Electron Microscope

,

USB Electron Microscope 250x

,

250x Digital Microscope For Pcb Inspection Portable

Product Description

Portable USB Electron Microscope Mini Adjustable Microscope With Metal Base For Windows , PCB checking , jewelry appraisal



1: Allows you to zoom in and view incredible details at magnification range from 10X to 250X.

2: Support multi-version computer system connection view, such as Windows win7, win8, win10, Mac OS Just open the software on the CD to view.



Product Specification:

Model Model Name DM022C
Features Connection USB 2.0 to PC
Image Sensor 5 Megapixel 1/3.2" CMOS Image Sensor
Photo And Video Resolution 5MP / 4MP / 3MP / 2MP / 1.3MP
Magnification Ratio Real 10x~250x(Based On 21 inch Display)
Max.Frame Rate 25 fps at 5MP Output
Light Source 8Pcs SMT White LED
LED Brightness Adjustable Yes
Focus Range From 0mm to 55mm on metal stand
Lens Type Optical Glass
Advantage Switchable Polarizer Yes
Brand Name Toproview / Neutral / Customization
Customized Support OEM / ODM / OBM
Certification CE / FCC / RoHS
Focus Mode Manual Continuous Focus
Warranty 1 Year
Software PC Software DigiCapture Pro (Customizable)
PC Software Supported Operation Systems Windows 7 / 8 / 10 , macOS 11.2.1 or above
PC Software OSD Language There Are 16 Languages Built In The Software
PC Software With Professional Measurement Yes
PC Software Support Four Display Concurrently Yes
PC Software Support Photo,Video Recording,Timed Photo And Timed Video Yes
PC Software Support Plug and Play Yes
Package details Accessories CD, USB cable,calibration ruler,metal stand
Body Dimension 110x35x25mm
Gross Weight 0.06KG
Gift Box 22*16*9cm
Gross Weight 0.6KG
Carton Box 46.5*33*37.5cm
Gross Weight 10.5KG
Carton 16Pcs



Product Advantages:

1: You can achieve up to 1000 times magnification to see up close specimens such as stamps, bugs, plants, skins, circuit boards, etc.

2: Designed for precise measurements, image capture, documentation, video record and general use, the USB digital microscope can provide you with all functions for various uses. this great portable digital microscope makes you successfully capture the clearest pictures of the minute structure of the object.

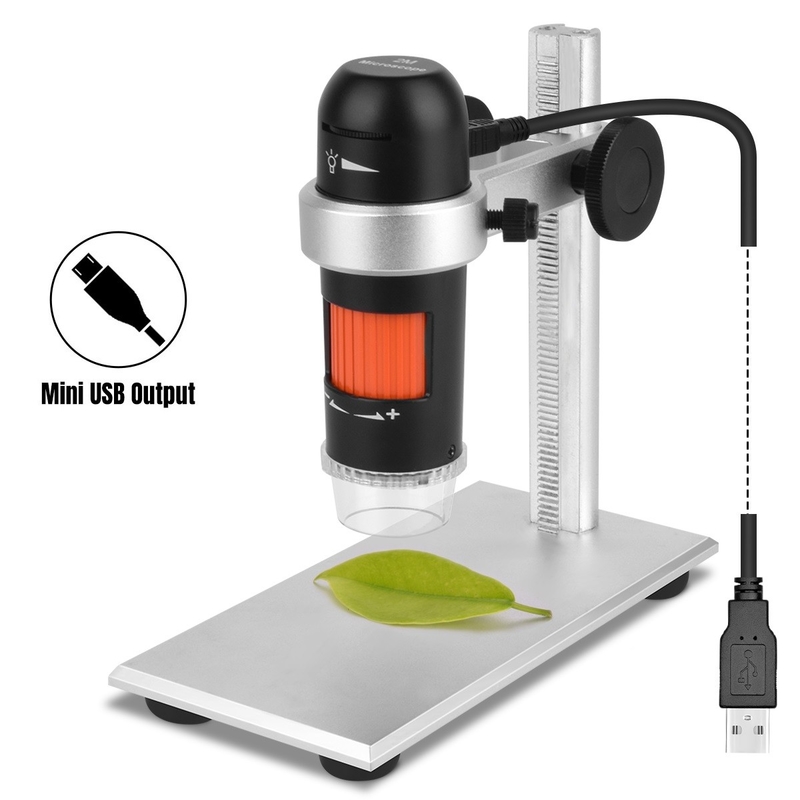

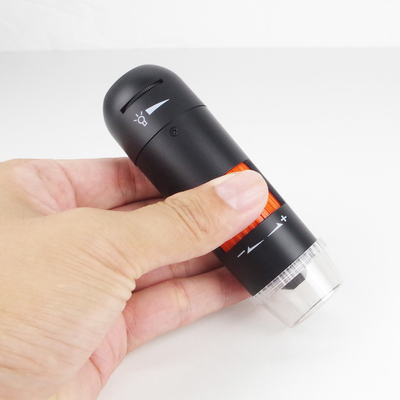

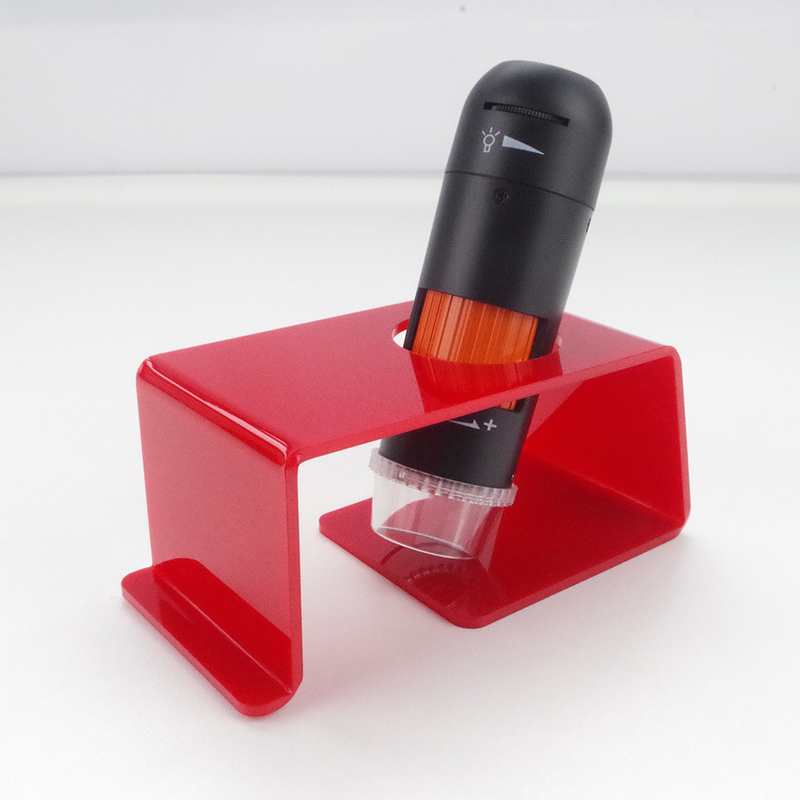

Product picture:

1.3MP USB Electron Microscope 250x Digital Microscope For Pcb Inspection Portable 0



FAQ:

1.3MP USB Electron Microscope 250x Digital Microscope For Pcb Inspection Portable 1
