200X Magnification USB Electron Microscope for Antique Authentication and Children Biology Slides Observation
1: The pulley on the bracket can be adjusted up and down easily.
2: Also you can transfer the captured images and videos to PC easily via USB cable, and then transfer to your friends or customers easily.
Product Specification:
| Model | Model Name | DM022B |
| Features | Connection | USB 2.0 to PC |
| Image Sensor | 2 Megapixel 1/3" CMOS Image Sensor | |
| Photo And Video Resolution | 1920*1080 / 1280*720 / 640*480 | |
| Magnification Ratio | Real 10x~200x(Based On 21 inch Display) | |
| Max.Frame Rate | 30 fps at 2MP Output | |
| Light Source | 8Pcs SMT White LED | |
| LED Brightness Adjustable | Yes | |
| Focus Range | From 0mm to 55mm on metal stand | |
| Lens Type | Optical Glass | |
| Advantage | Switchable Polarizer | Yes |
| Brand Name | Toproview / Neutral / Customization | |
| Customized Support | OEM / ODM / OBM | |
| Certification | CE / FCC / RoHS | |
| Focus Mode | Manual Continuous Focus | |
| Warranty | 1 Year | |
| Software | PC Software | DigiCapture Pro (Customizable) |
| PC Software Supported Operation Systems | Windows 7 / 8 / 10 , macOS 11.2.1 or above | |
| PC Software OSD Language | There Are 16 Languages Built In The Software | |
| PC Software With Professional Measurement | Yes | |
| PC Software Support Four Display Concurrently | Yes | |
| PC Software Support Photo,Video Recording,Timed Photo And Timed Video | Yes | |
| PC Software Support Plug and Play | Yes | |
| Package details | Accessories | CD, USB cable,calibration ruler,metal stand |
| Body Dimension | 110x35x25mm | |
| Gross Weight | 0.06KG | |
| Gift Box | 22*16*9cm | |
| Gross Weight | 0.6KG | |
| Carton Box | 46.5*33*37.5cm | |
| Gross Weight | 10.5KG | |
| Carton | 16Pcs |
Product Advantages:
1: Portable Microscope suitable for learning detection, mobile phone maintenance, identification of jewelry, print detection, circuit board repair, textile industrial and biological inspection.
2: Up to 200X continuous magnification for simulative microscopic observation, let children step into the microcosmos.

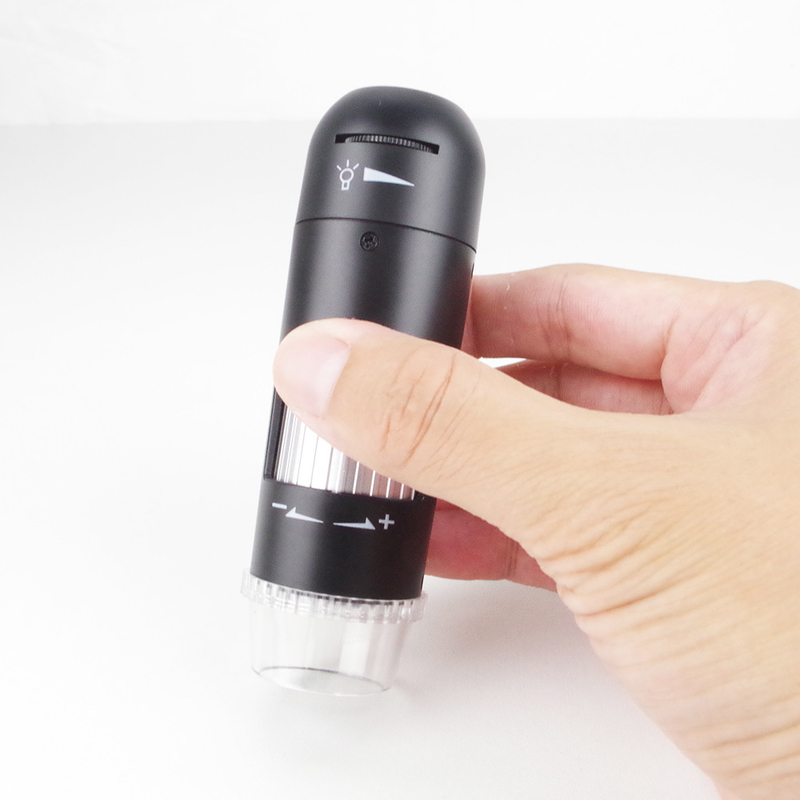

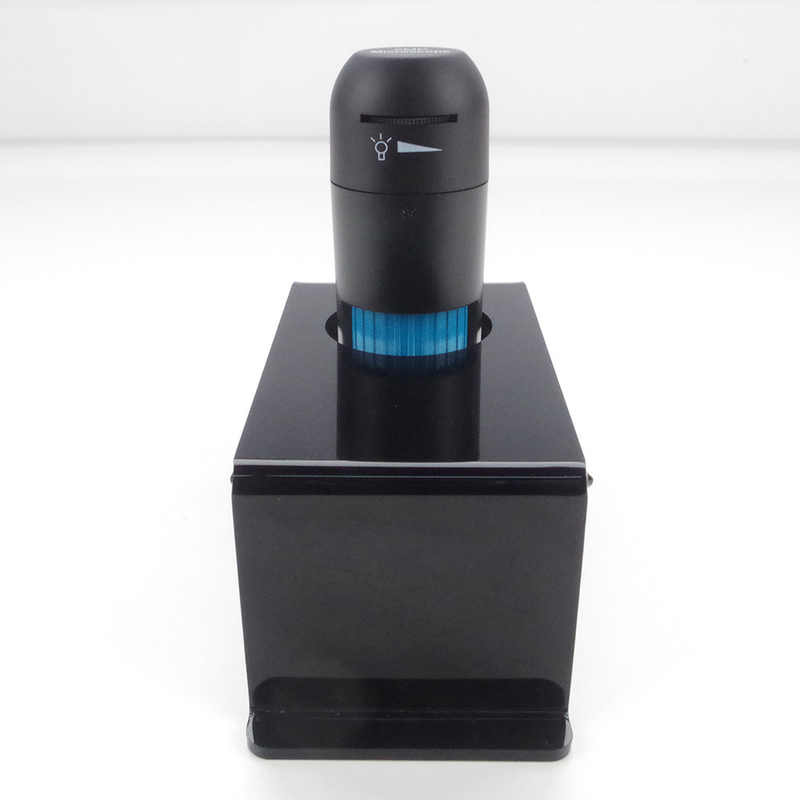

Product picture:
