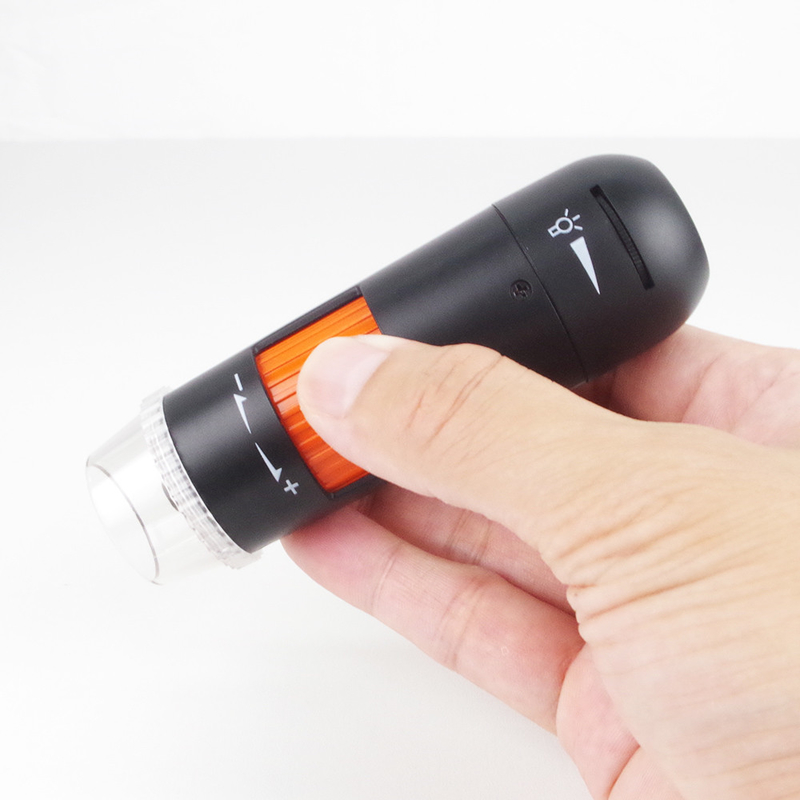

Polarizer Electron USB Digital Microscopes Camera 5MP 250x Magnification Sensor Sensor

Product Details:
Place of Origin: China
Brand Name: Toproview/Neutral/Customization
Certification: CE/FCC/RoHS
Model Number: DM022C
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: $45~$70/pc
Packaging Details: Neutral/Customization Giftbox/16pcs per carton
Delivery Time: 5~35 working days
Payment Terms: L/C, T/T, Western Union, D/A, D/P
Supply Ability: 50000pcs/month
  • Detail Information
  • Product Description

Detail Information

Polarizer:: Yes Image Sensor:: 1/3.2" CMOS Image Sensor
Sensor Resolution:: 5M Pixels (2592*1944) Photo & Video Resolution:: Optional 5MP/4MP/3MP/ 2MP/1.3MP
Max. Frame:: 25fps@5MP Adjustable Magnification:: 10x~250x
Connection Type:: USB 2.0 To PC Supported Operation Systems:: Windows 7/8/10,macOS 10.14 And Above
High Light:

Polarizer USB Electron Microscope

,

Microscope Iphone Camera 5MP

,

250x USB Electron Microscope

Product Description


Polarizer Electron USB Digital Microscopes Camera 5MP 250x Magnification Sensor Sensor

All of Toproview USB digital microscopes are built-in adjustable polarizer, allows to freely remove the unwanted reflection or glare from the object surface for a better contrast.

Empowered with USB 2.0 interface, our usb type microscopes support connecting through USB to Windows or macOS computer to observe and analyse the captures&recordings or live images&video with our powerful user-friendly software "DigiCapture Pro" for advanced image processing.

Main Features

• View live image on computer screen

Image sensor is the high resolution 5M pixels (2592*1944), 1/3.2" CMOS Image Sensor.

Max frame rate is up to 25fps at 5MP output, user can get the super high quality and smooth viewing and recording.

Supported operation systems with both Windows 7/8/10, and macOS 10.14 and above. No matter Windows computer/laptop or OS system Macbook are compatible. User can also do some mesuring and remard with the attached PC software.


SPECIFICATIONS

MODELModel NameDM022C
 ConnectionUSB 2.0
OPTICSPolarizerYes
 MagnificationReal 10x~250x(based on 21 inch Display)
 Lens typeOptical glass
 Focus rangeManual focus 0~110mm
 Illumination8 adjustable white LED
SENSORSensor typeCMOS
 Size5 megapixel
 Resolution2590*1944
 Frame rate25 fps at 5MP output;
35 fps at 2MP output
FEATURESSoftwareDigiCapture Pro for
Windows/MacOS
 Measurement functionYes
 CertificationCE/FCC/RoHS
PHYSICALDimensions18*34*30cm
 Gross weight0.2kg
 StandComes with metal stand



APPLICATIONS

• Industrial and Electronic Inspection

• Skin | Dermatoscope

• Hair | Scalp | Trichology

• Research & Scientific Analysis

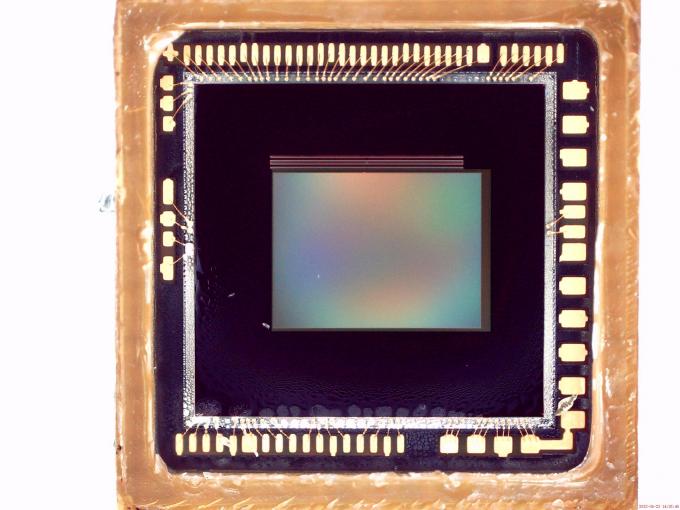

Sensor inspection with polarizer adjusting
Polarizer Electron USB Digital Microscopes Camera 5MP 250x Magnification Sensor Sensor 0

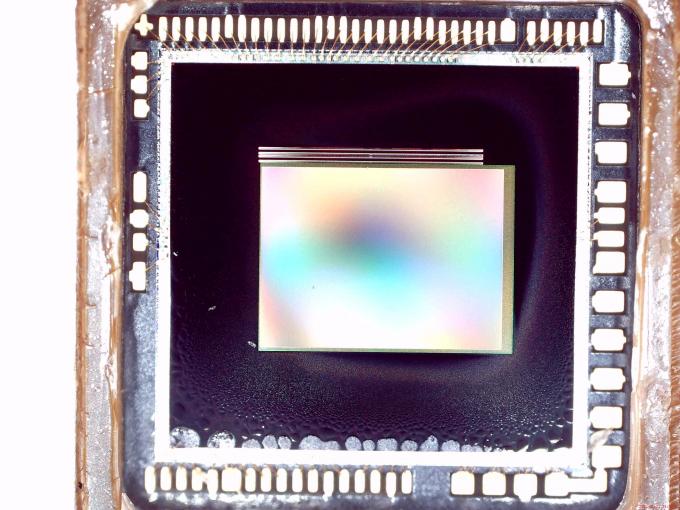

Sensor inspection without polarizer adjusting

Polarizer Electron USB Digital Microscopes Camera 5MP 250x Magnification Sensor Sensor 1
FAQ
Q: Can you accept OEM or ODM?
A: Yes, OEMand ODM are welcome. We have the fully ability to customize any design, shape and size as per customer’s specific requirements.
Q: What certificate do you have?
A: For all products we supply CE, FCC, RoHs.
Q:How could I get samples?
A: We support sample test before bulk order, contact me for more details just now!
