Product Details:
|
|
| Place of Origin: | Shenzhen , China |
|---|---|
| Brand Name: | Neutral / Customization |
| Certification: | CE/FCC/RoHS |
| Model Number: | CA025M-TTL_5V |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | Negotiation |
| Price: | Negotiation |
| Packaging Details: | Neutral / Customization Giftbox / 16pcs per carton |
| Delivery Time: | 6~36 working days |
| Payment Terms: | L/C, T/T, Western Union, D/A, D/P |
| Supply Ability: | 60000pcs/month |
|
Detail Information |
|||
| Model Name: | CA025M-TTL_5V | Interface: | Output TTL |
|---|---|---|---|
| Protocol: | OV528 Protocol | Image Compression: | Output JPEG |
| Sensor: | OV7725 Sensor | Working Current: | About 70mA (Standby: 50mA) |
| High Light: | OV528 TTL Serial Camera Module,TTL Serial Camera Module JPEG,JPEG Communication Protocol Camera Module |
||
Product Description
OV7725 OV528 Communication Protocol Camera Module TTL Serial Camera Module For Industial Control System
1: TTL OV7725 OV528 Communication Protocol serial interface camera with Limited One-Year Warranty and Lifetime Product Support.
2: This serial interface camera with 0.3 Megapixel OV7725 1/4" CMOS and output HD JPEG image compression.
Product Specification:
| Model | Model Name | CA025M-TTL-5V |
| Features | Interface | TTL |
| Working Power | DC 5V | |
| Working Current | About 70mA (Standby: 50mA) | |
| Image sensor | OV7725 1/4" CMOS Image Sensor | |
| Pixels | 0.3 Megapixel | |
| Image Compression | JPEG | |
| Baud Rate | 9600 to 115200bps | |
| Lens | F:2.8mmIR:850nmFOV:100° | |
| Image Resolution | VGA(640*480) / QVGA(320*240) / QQVGA(160*120) | |
| Advantage | White Balance | Automatic |
| Exposure | Automatic | |
| Auto Gain Control | Automatic | |
| Working Temperature | -10 to 70 degree Celsius | |
| Warranty | Limited One-Year Warranty and Lifetime Product Support | |
| Software | JPEG Serial Port Camera Test Software | Yes |
| User Manual OV528 Protocol | Yes | |
| Communication protocol | OV528 | |
| Package details | Size | 38mm*38mm / 32mm*32mm |
| Gross Weight | 0.01KG | |
| Package Included | 1 x TTL JPEG Camera Module |
Product Advantages:
1: Our 0.3MP OV7725 serial camera is used to Industial Control System.
2: 0.3MP OV7725 OV528 Communication Protocol Camera Module TTL Serial Camera Module For Industial Control System.

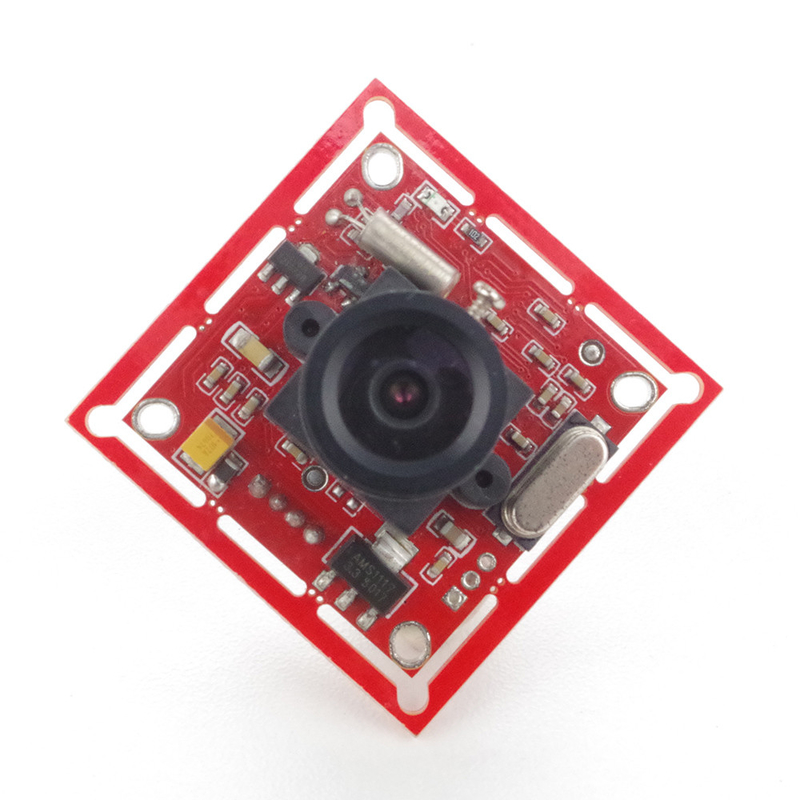

Product picture:
