JPEG OV7725 Module RS232 UART Camera Module For Remote Unattended Photography

Product Details:
Place of Origin: Shenzhen , China
Brand Name: Neutral / Customization
Certification: CE/FCC/RoHS
Model Number: CA025M-RS232-5V
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Neutral / Customization Giftbox / 16pcs per carton
Delivery Time: 6~36 working days
Payment Terms: L/C, T/T, Western Union, D/A, D/P
Supply Ability: 60000pcs/month
  • Detail Information
  • Product Description

Detail Information

Model Name: CA025M-RS232-5V Interface: RS232 Out
Working Power: DC : 5V Size: 38mm*38mm / 32mm*32mm
Image Compression: JPEG Out Working Current: About 70mA (Standby: 50mA)
High Light:

JPEG OV7725 Module

,

OV7725 Module RS232

,

RS232 UART Camera Module

Product Description

RS232 JPEG OV528 Communication Protocol Serial UART Interface Camera Module For remote unattended photography

1: This 0.3MP RS232 OV528 Communication Protocol serial interface camera module with Lens F:2.8mm IR:850nm .
2: The 0.3MP rs232 serial interface camera module with Limited One-Year Warranty.
3: The serial interface camera module with rs232 output.
4: The camera module baud rate from 9600 to 115200bps.

Product Specification:

Model Model Name CA025M-RS232-5V
Features Interface RS232
Working Power DC 5V
Working Current About 70mA (Standby: 50mA)
Image sensor OV7725 1/4" CMOS Image Sensor
Pixels 0.3 Megapixel
Image Compression JPEG
Baud Rate 9600 to 115200bps
Lens F:2.8mmIR:850nmFOV:100°
Image Resolution VGA(640*480) / QVGA(320*240) / QQVGA(160*120)
Advantage White Balance Automatic
Exposure Automatic
Auto Gain Control Automatic
Working Temperature -10 to 70 degree Celsius
Warranty Limited One-Year Warranty and Lifetime Product Support
Software JPEG Serial Port Camera Test Software Yes
User Manual OV528 Protocol Yes
Communication protocol OV528
Package details Size 38mm*38mm / 32mm*32mm
Gross Weight 0.01KG
Package Included 1 x RS232 JPEG Camera Module


Product Advantages:

1: This 0.3MP rs232 serial camera module is used in GPS positioning and taking pictures.
2: The RS232 JPEG OV528 Communication Protocol Serial UART Interface Camera Module For remote unattended photography.
3: The rs232 serial camera module with OV528 Communication protocol with JPEG Serial Port Camera Test Software.

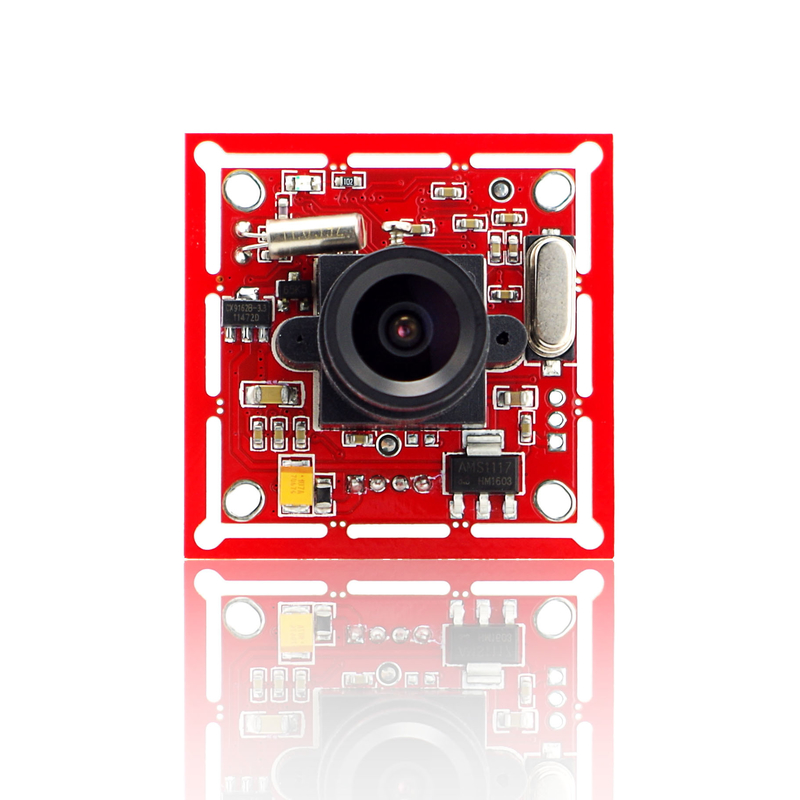

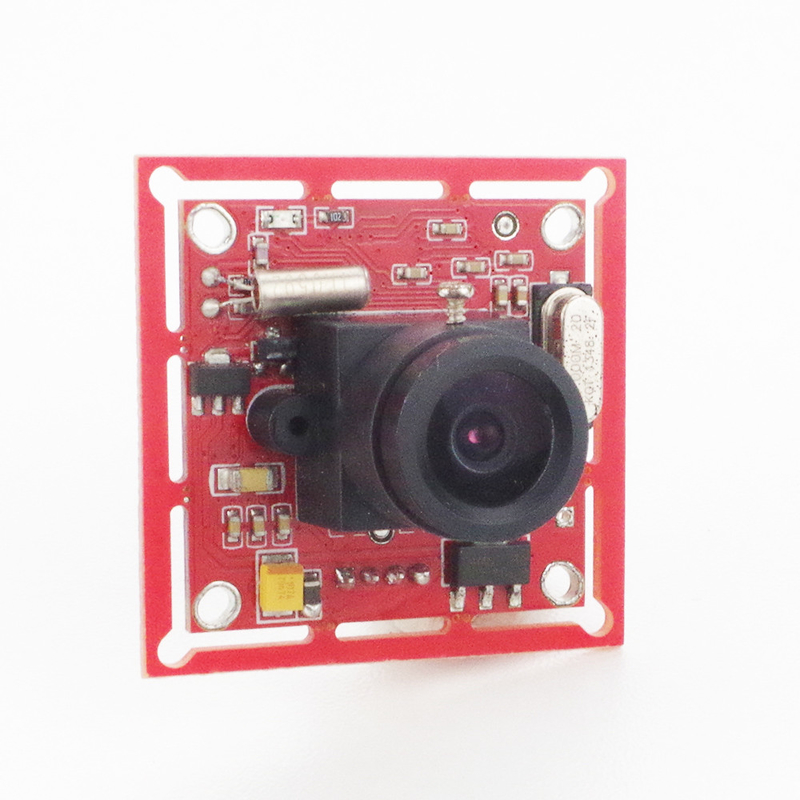

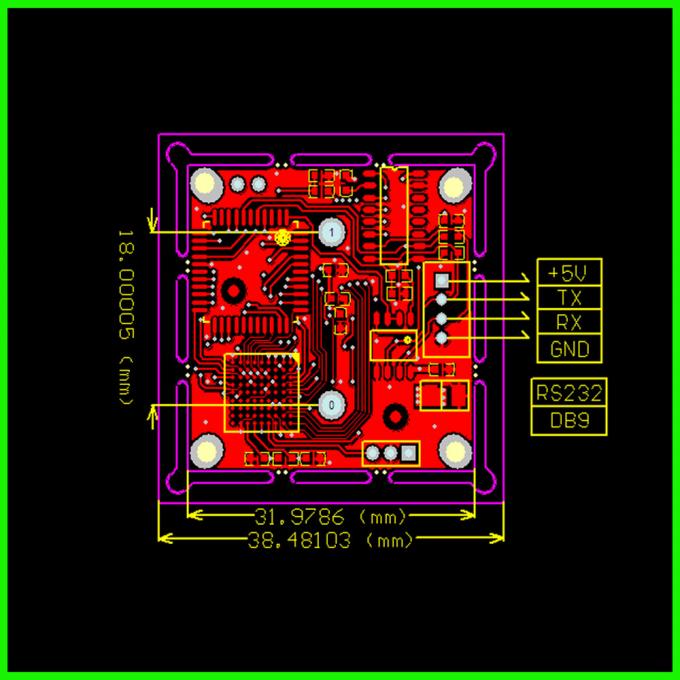

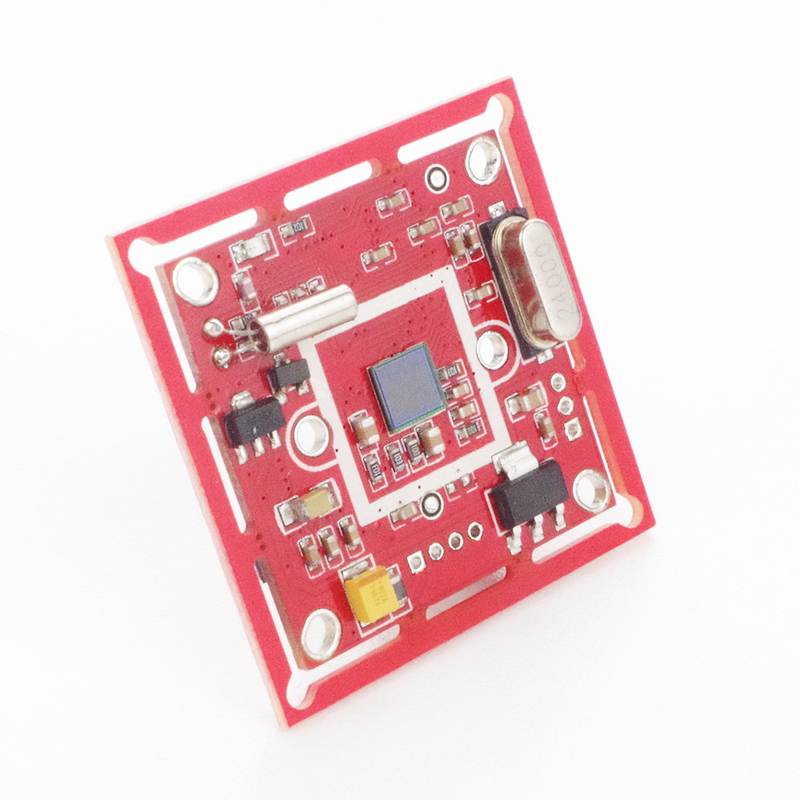

Product picture:
JPEG OV7725 Module RS232  UART Camera Module For Remote Unattended Photography 0
