QVGA Ttl Serial Jpeg Camera 0.3MP Rs232 Camera Module Communication Protocol

QVGA Ttl Serial Jpeg Camera 0.3MP Rs232 Camera Module Communication Protocol

OV7725 Ttl Serial Jpeg Camera

Ttl Serial Jpeg Camera 0.3MP

0.3MP Rs232 Camera Module

Place of Origin:

Shenzhen , China

Brand Name:

Neutral / Customization

Certification:

CE / FCC / RoHS

Model Number:

CA025M-RS485_5V

Contact Us

Request A Quote
Product Details
Model Name:
CA025M-RS485_5V
Interface:
RS485 Out
Working Power:
5V
Image Resolution:
VGA(640*480) / QVGA(320*240) / QQVGA(160*120)
Image Sensor:
OV7725 Image Sensor
Image Compression:
JPEG Out
Payment & Shipping Terms
Minimum Order Quantity
Negotiation
Price
Negotiation
Packaging Details
Neutral / Customization Giftbox / 16pcs per carton
Delivery Time
6~36 working days
Payment Terms
L/C, T/T, Western Union, D/A, D/P
Supply Ability
60000pcs/month
Product Description

OV7725 0.3MP RS485 JPEG Serial Camera Module OV528 Communication Protocol Camera Module

1: This 0.3MP RS485 OV7725 serial interface module with 9600 to 115200bps Baud Rate and JPEG image compression.
2: The 0.3MP RS485 OV7725 serial interface module with JPEG Serial Port Camera Test Software.
3: our 0.3MP RS485 OV7725 serial interface module with Limited One-Year Warranty and Lifetime Product Support.

Product Specification:

ModelModel NameCA025M-RS485-5V
FeaturesInterfaceRS485
Working PowerDC 5V
Working CurrentAbout 70mA (Standby: 50mA)
Image sensorOV7725 1/4" CMOS Image Sensor
Pixels0.3 Megapixel
Image CompressionJPEG
Baud Rate9600 to 115200bps
LensF:2.8mmIR:850nmFOV:100°
Image ResolutionVGA(640*480) / QVGA(320*240) / QQVGA(160*120)
AdvantageWhite BalanceAutomatic
ExposureAutomatic
Auto Gain ControlAutomatic
Working Temperature-10 to 70 degree Celsius
WarrantyLimited One-Year Warranty and Lifetime Product Support
SoftwareJPEG Serial Port Camera Test SoftwareYes
User Manual OV528 ProtocolYes
Communication protocolOV528
Package detailsSize38mm*38mm / 32mm*32mm
Gross Weight0.01KG
Package Included1 x RS485 JPEG Camera Module


Product Advantages:

1: The 0.3MP OV7725 serial camera module is used to embedded imaging applications.
2: OV7725 0.3MP RS485 JPEG Serial Camera Module with OV528 Communication Protocol Camera Module.
3: This 0.3MP OV7725 serial camera module with 2.8mmIR:850nmFOV:100° lens.

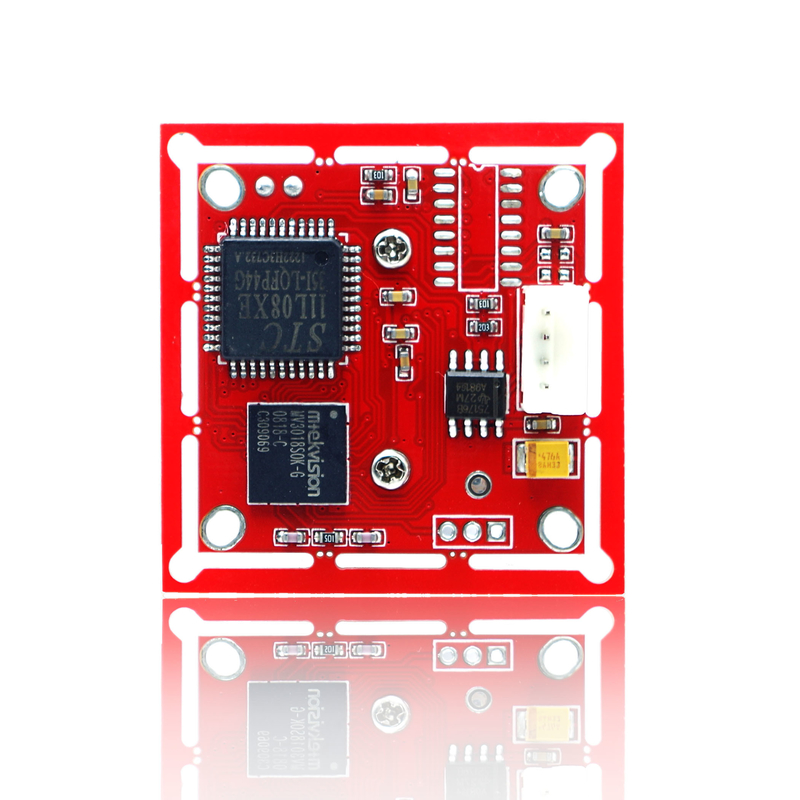

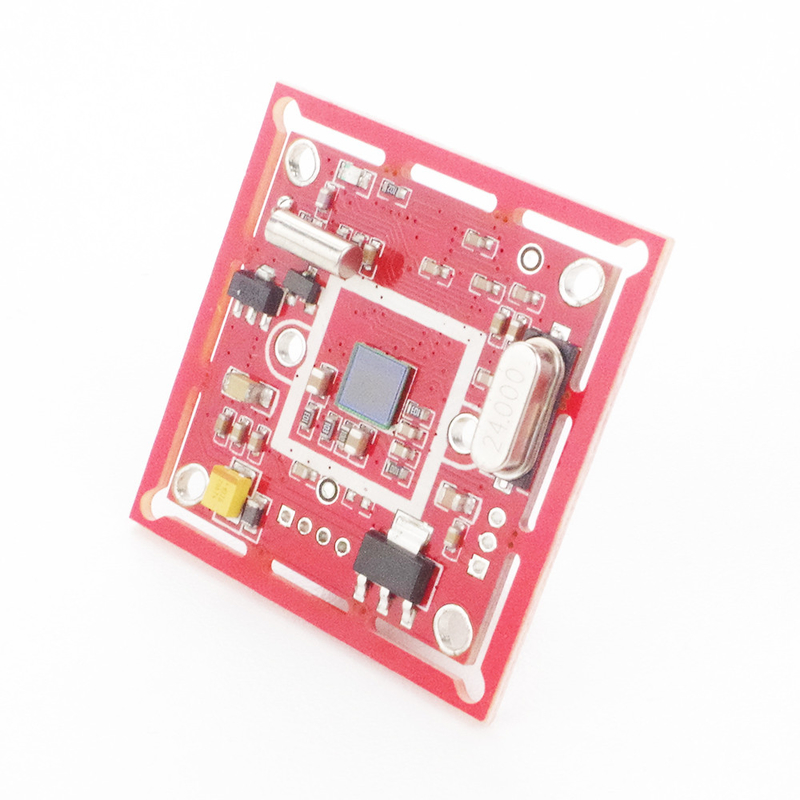

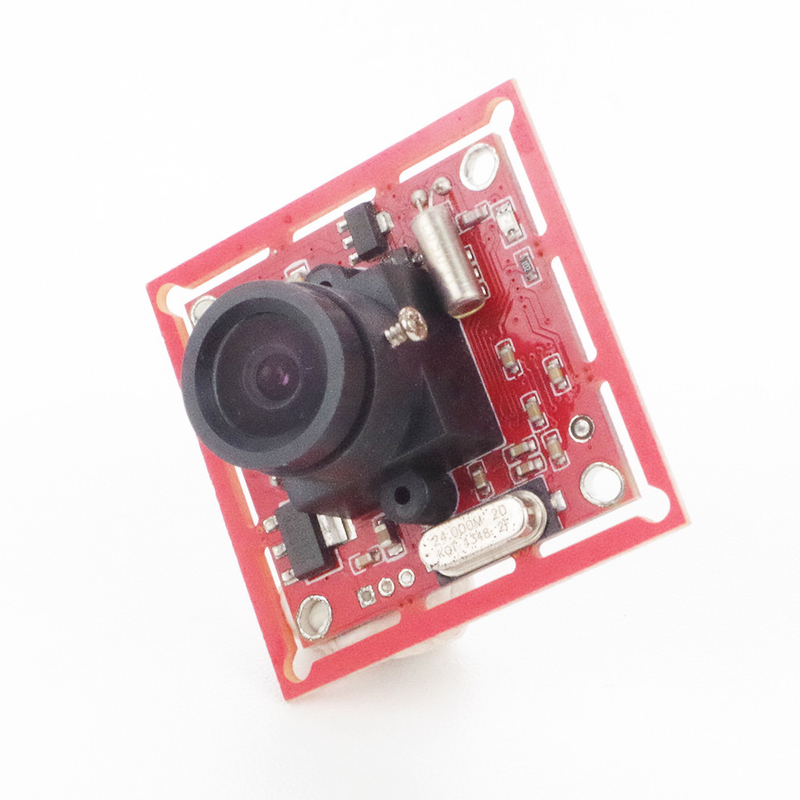

Product picture:
QVGA Ttl Serial Jpeg Camera 0.3MP Rs232 Camera Module Communication Protocol 0



FAQ:
QVGA Ttl Serial Jpeg Camera 0.3MP Rs232 Camera Module Communication Protocol 1
