OV7725 Serial Camera Module 0.3MP OV528 For Embedded Imaging Applications

Product Details:
Place of Origin: Shenzhen , China
Brand Name: Neutral / Customization
Certification: CE/FCC/RoHS
Model Number: CA025M-TTL-5V
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Neutral / Customization Giftbox / 16pcs per carton
Delivery Time: 6~36 working days
Payment Terms: L/C, T/T, Western Union, D/A, D/P
Supply Ability: 60000pcs/month
  • Detail Information
  • Product Description

Detail Information

Model Name: CA025M-TTL-5V Interface: TTL
Protocol: OV528 Pixels: 0.3 Megapixel
Sensor: OV7725 Baud Rate: 9600 To 115200bps
High Light:

OV7725 Serial Camera Module

,

Serial Camera Module 0.3MP

,

0.3MP OV528 For Embedded Imaging

Product Description

0.3MP OV7725 TTL Serial Camera Module OV528 Communication Protocol For embedded imaging applications



1: TTL OV7725 serial interface camera with Automatic Auto Gain Control.

2: The serial interface camera Image Compression is JPEG with 0.3MP sensor.



Product Specification:

Model Model Name CA025M-TTL-5V
Features Interface TTL
Working Power DC 5V
Working Current About 70mA (Standby: 50mA)
Image sensor OV7725 1/4" CMOS Image Sensor
Pixels 0.3 Megapixel
Image Compression JPEG
Baud Rate 9600 to 115200bps
Lens F:2.8mmIR:850nmFOV:100°
Image Resolution VGA(640*480) / QVGA(320*240) / QQVGA(160*120)
Advantage White Balance Automatic
Exposure Automatic
Auto Gain Control Automatic
Working Temperature -10 to 70 degree Celsius
Warranty Limited One-Year Warranty and Lifetime Product Support
Software JPEG Serial Port Camera Test Software Yes
User Manual OV528 Protocol Yes
Communication protocol OV528
Package details Size 38mm*38mm / 32mm*32mm
Gross Weight 0.01KG
Package Included 1 x TTL JPEG Camera Module



Product Advantages:

1: This OV528 Protocol serial interface is used to Automotive System.

2: 0.3MP OV7725 TTL Serial Camera Module OV528 Communication Protocol For embedded imaging applications.



Product picture:

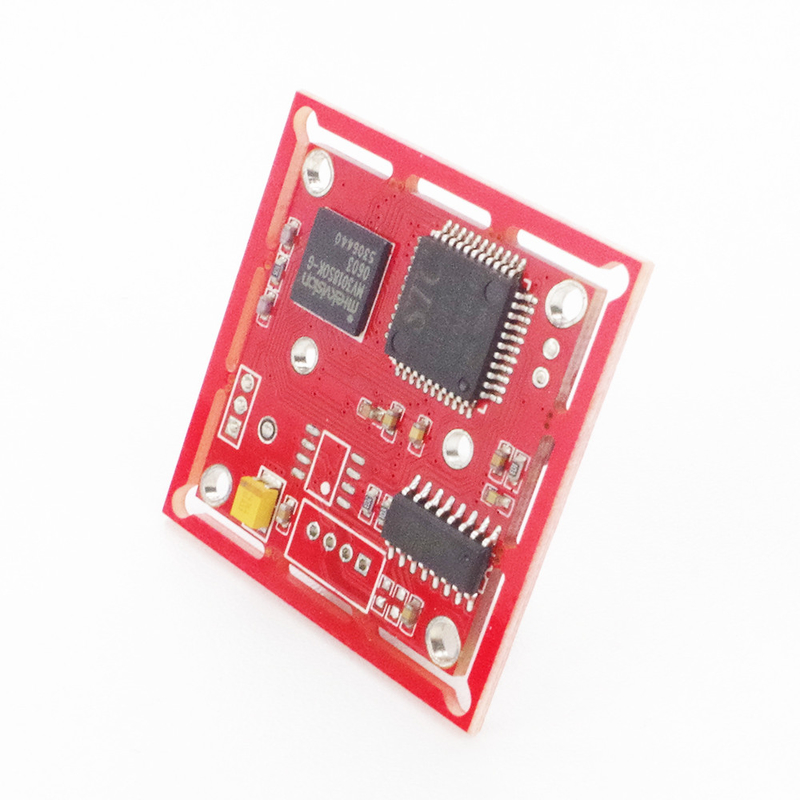

OV7725 Serial Camera Module 0.3MP OV528 For Embedded Imaging Applications 0



FAQ:

OV7725 Serial Camera Module 0.3MP OV528 For Embedded Imaging Applications 1
