Place of Origin:
China
Brand Name:
Toproview/Neutral/Customization
Certification:
CE/FCC/RoHS
Model Number:
DM042
Contact Us
HDMI True 5MP High Resolution LCD Digital Microscope with True 250x Magnification
PRODUCT DESCRIPTION
Main Features

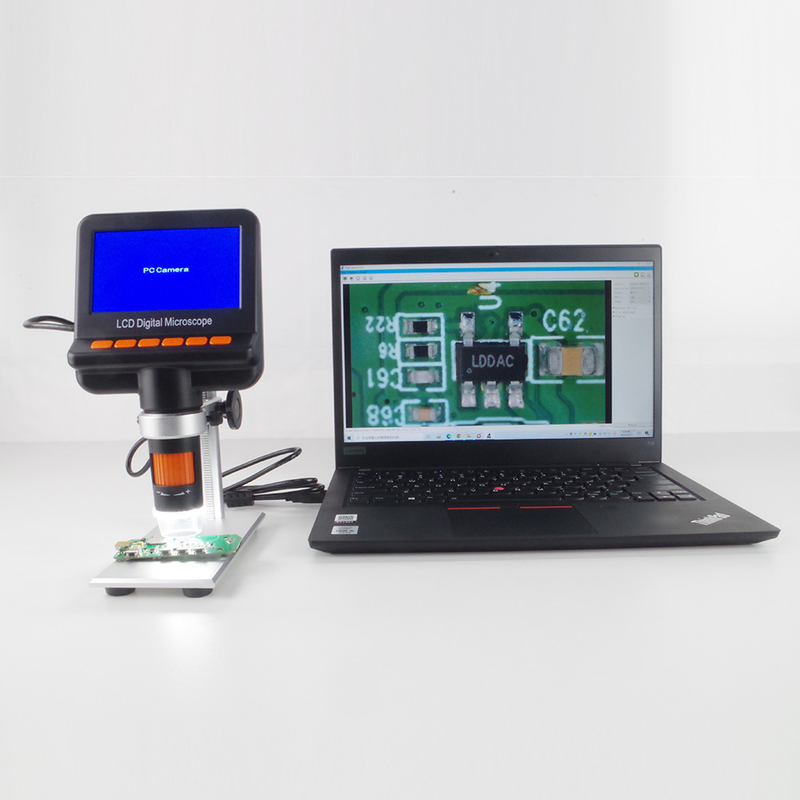

* Multifunctional connection type: supports output through USB port to PC; HDMI port to HD monitor; TV port to monitor. Also allow to work with the LCD screen directly, can take photo, video and playback etc., without any connection.
* Polarizer build in: allows to reduce reflection, very usefual for observing objects with shiny surface like diamond, jewelry, metal etc.,
* High magnification: real 250x and up to 1200x by digital zoom.
* High resolution: real 5MP resolution sensor, and up to 12MP resolution by digital zoom.
Quick Details

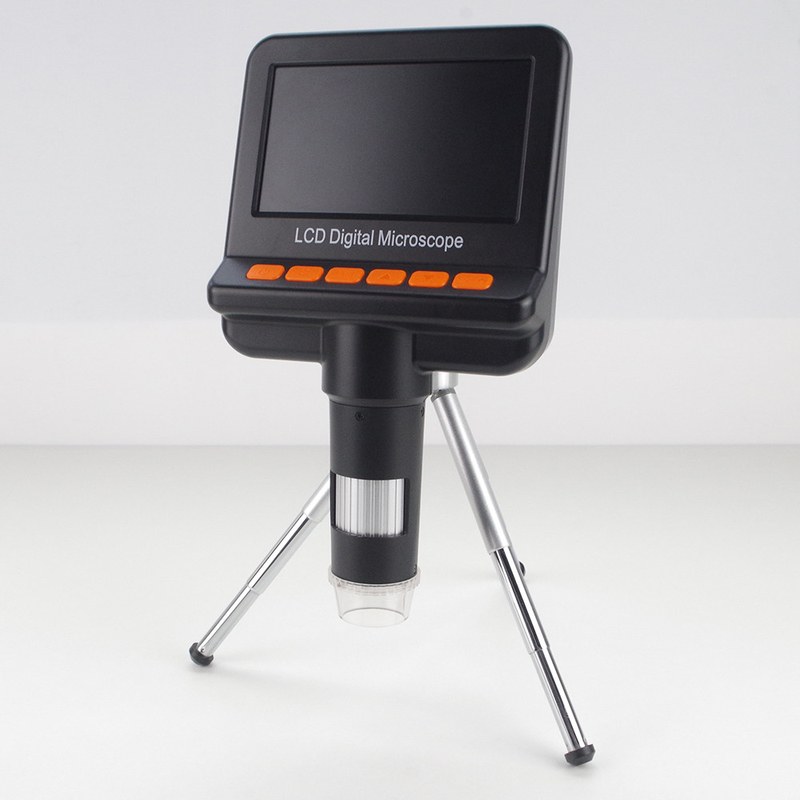

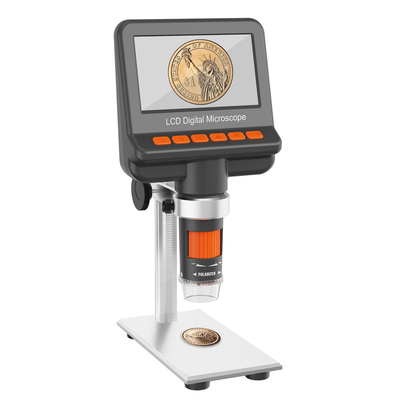

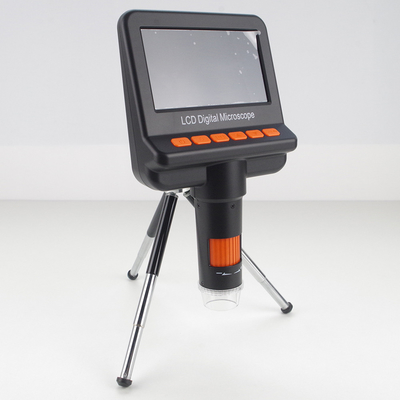

Toproview DM042 is built-in 4.3 inch LCD screen, with assembled adjustable polarizer for reflective object. Support HDMI & TV output, provide user the larger and clear visual experience. Also support USB output for PC connection and to work measurement software.
Different from other LCD digital microscope in the market, LCD digital microscope built-in polarizer switch, do not need extra light filling to the reflection on observation surface, which will make the working more convenient and more efficent.
LCD DIGITAL MICROSCOPE SPECIFICATIONS
|
MODEL |
Model Name |
DM042 |
|
|
Connection |
USB 2.0 to PC/HDMI port to monitor/TV port to monitor |
|
OPTICS |
Polarizer |
Yes |
|
|
Magnification |
Real 10x~250x(ba |
|
|
Lens type |
Optical glass |
|
|
Focus range |
Manual focus 0~110mm |
|
|
Illumination |
8 adjustable white LED |
|
SENSOR |
Sensor type |
CMOS |
|
|
Size |
5 megapixel |
|
|
Resolution |
2590*1944 |
|
|
Fr |
25 fps at 5MP output; |
|
FEATURES |
Software |
DigiCapture Pro for |
|
|
Measurement function |
Yes |
|
|
Certification |
CE/FCC/RoHS |
|
PHYSICAL |
Dimensions |
18*34*30cm |
|
|
Gross weight |
0.2kg |
|
|
Stand |
Comes with me |
OEM&ODM Service
Our R&D team is very experienced in video-related products.
We are with the strong Research and Development ability. We warmly welcome customers to cooperate with us to develop new products. Customers need only give us an idea, then we will do the rest including cosmetic, structure, electronics circuit design etc.
Please feel free to send your needs to us at jessie.zhuang@toproview.com or send us info online.
