5 Mega High Resolution Digital Microscope With USB Port Polarizing Handheld

5 Mega High Resolution Digital Microscope With USB Port Polarizing Handheld

5 Mega digital Microscope with USB

Polarizing Handheld digital Microscope

Real 10x digital Microscope

Place of Origin:

China

Brand Name:

Toproview/Neutral/Customization

Certification:

CE/FCC/RoHS

Model Number:

DM022C

Contact Us

Request A Quote
Product Details
Polarizer:
Yes
Connection Type:
USB Port To PC
Supported Operation Systems:
Windows 7/8/10,macOS 10.14 And Above
High Frame:
30fps At 5MP
Magnification:
Real 10x~250x
Measuring Software:
Yes
Payment & Shipping Terms
Minimum Order Quantity
Negotiation
Price
Negotiation
Packaging Details
Neutral/Customization Giftbox/16pcs per carton
Delivery Time
5~35 working days
Payment Terms
L/C, T/T, Western Union, D/A, D/P
Supply Ability
50000pcs/month
Product Description



5 Mega Digital Microscope with USB Port Polarizer Polarizing Handheld,High Resolution Microscope



PRODUCT DESCRIPTION

Main features

* With polarizer to filter the reflection on objection’s surface

* Photo and video resolution are optional from 5MP, 4MP, 3MP, 2MP, 1.3MP.

* PC Software supports four living windows concurrently, user with special applications can support to use 4 microscope seeing the living at the same time.

* PC Software with 16 optional languages can reach most of the uses in the worldwide.

* Light source is the dimmable LED ring illuminator (8pcs SMT White LED).



Quick Details

This compact magnifying tool offers handheld and stand-mounted operating options. Using the included wide stand with a metal rod, it allows you to adjust and secure your working distance and the horizontal position of the microscope above your samples. The base also provides two pre-loaded clips to hold your slides or flat samples. With its 5.0MP imaging sensor (capable of capturing still images and videos), infrared-reducing 5-element glass lens, and an 8-LED illumination ring, you capture bright and crisp high-resolution images and 30 fps videos. Optimized for 3D examination of larger objects, this kit also can be useful to study miniature artifacts by bumping up the magnification power. The effective magnifying power depends on the size of your monitor and can be increased up to 800x. The device also provides a wide angle of view, an unlimited focusing distance starting from 0.4" (10mm), and an integrated USB cord shutter control.



PRODUCT SPECIFICATIONS

MODEL

Model Name

DM022C



Connection

USB 2.0

OPTICS

Polarizer

Yes



Magnification

Real 10x~250x(based on 21 inch Display)



Lens type

Optical glass



Focus range

Manual focus 0~110mm



Illumination

8 adjustable white LED

SENSOR

Sensor type

CMOS



Size

5 megapixel



Resolution

2590*1944



Frame rate

25 fps at 5MP output;
35 fps at 2MP output

FEATURES

Software

DigiCapture Pro for
Windows/MacOS



Measurement function

Yes



Certification

CE/FCC/RoHS

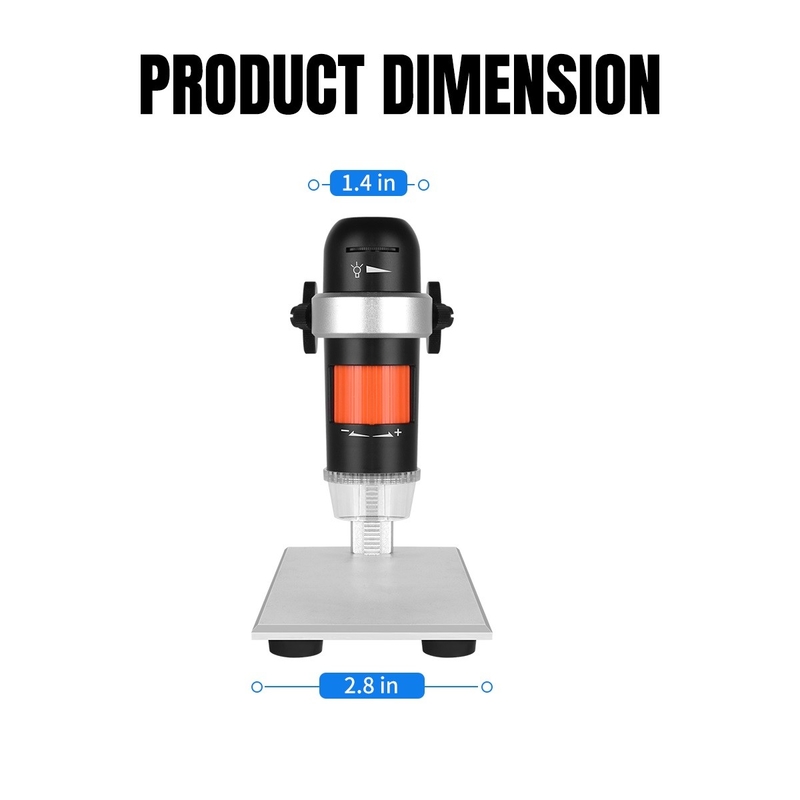

PHYSICAL

Dimensions

18*34*30cm



Gross weight

0.2kg



Stand

Comes with metal stand



5 Mega High Resolution Digital Microscope With USB Port Polarizing Handheld 05 Mega High Resolution Digital Microscope With USB Port Polarizing Handheld 1



OEM&ODM Service

OEM/ODM service: Our digital microscope products OEM and ODM service is always ready!

If you want to show your own brand LOGO on the product microscope, product package or software icon, it’s available. Come to us for more details right now!

Please feel free to send your needs to us online.
