Real 5MP LCD High Resolution Digital Microscope Video Biological USB 2.0 FCC

Real 5MP LCD High Resolution Digital Microscope Video Biological USB 2.0 FCC

5MP LCD High Resolution Digital Microscope

FCC LCD High Resolution Digital Microscope

Microscope Video Biological USB 2.0

Place of Origin:

China

Brand Name:

Toproview/Neutral/Customization

Certification:

CE/FCC/RoHS

Model Number:

DM042

Contact Us

Request A Quote
Product Details
Model:
DM042
Resolution:
Up To 12MP
Magnification:
Up To 1200x
Supported Operation Systems:
Windows 7/8/10,macOS 10.14 And Above
Connection Type:
USB 2.0/HDMI Port /TV Port
Screen Size:
4.3 Inch
Payment & Shipping Terms
Minimum Order Quantity
Negotiation
Price
Negotiation
Packaging Details
Neutral/Customization Giftbox/16pcs per carton
Delivery Time
5~35 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union
Supply Ability
50000pcs/month
Product Description


Real 5MP LCD High Resolution Digital Microscope Biogical Video Microscope


PRODUCT DESCRIPTION

Quick Details

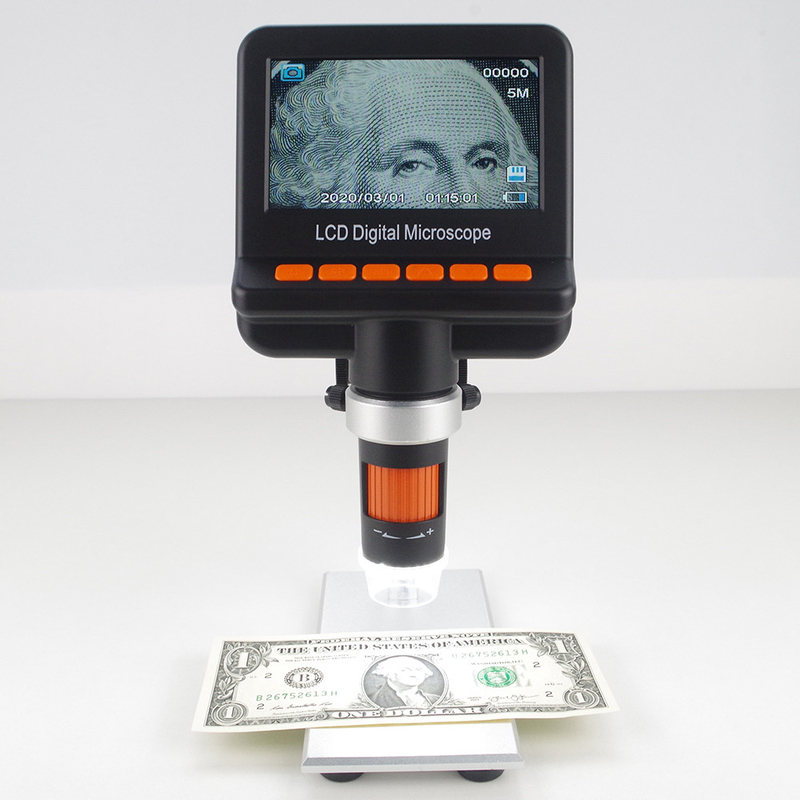

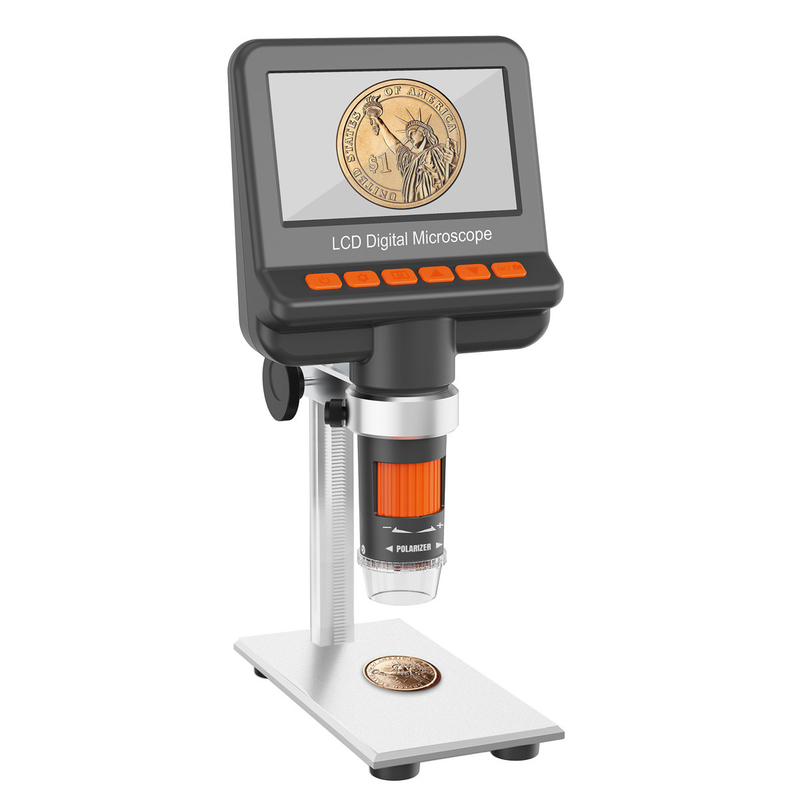

Equipped with 5 mega pixels HD sensor and industrial lens, Toproview DM042 3D HDMI Digital Microscope features 4.3 inch screen, enabling users to view parts and components of the PCB clearly so as to improve the precision and efficiency of their soldering and repair work.

With multifunctional connection type: supports output through USB port to PC; HDMI port to HD monitor; TV port to monitor. Also allow to work with the LCD screen directly, can take photo, video and playback etc., without any connection.



Main Features

* Multifunctional connection type: supports output through USB port to PC; HDMI port to HD monitor; TV port to monitor. Also allow to work with the LCD screen directly, can take photo, video and playback etc., without any connection.

* High resolution: real 5MP resolution sensor, and up to 12MP resolution by digital zoom.

* High magnification: real 250x and up to 1200x by digital zoom.


LCD DIGITAL MICROSCOPE SPECIFICATIONS

MODEL

Model Name

DM042



Connection

USB 2.0 to PC/HDMI port to monitor/TV port to monitor

OPTICS

Polarizer

Yes



Magnification

Real 10x~250x(based on 21 inch Display)



Lens type

Optical glass



Focus range

Manual focus 0~110mm



Illumination

8 adjustable white LED

SENSOR

Sensor type

CMOS



Size

5 megapixel



Resolution

2590*1944



Frame rate

25 fps at 5MP output;
35 fps at 2MP output

FEATURES

Software

DigiCapture Pro for
Windows/MacOS



Measurement function

Yes



Certification

CE/FCC/RoHS

PHYSICAL

Dimensions

18*34*30cm



Gross weight

0.2kg



Stand

Comes with metal stand

 Real 5MP LCD High Resolution Digital Microscope Video Biological USB 2.0 FCC 0
Real 5MP LCD High Resolution Digital Microscope Video Biological USB 2.0 FCC 1

Packing ways

Neutral product with colorful gift box, 16pcs per carton.

According to export standard packing.

Packing way with customization available.
