2MP USB UV Light Microscope For Jewelry Inspection With 1920x1080

2MP USB UV Light Microscope For Jewelry Inspection With 1920x1080

2MP USB UV Light Microscope

2MP Microscope For Jewelry Inspection

400nm USB UV Light Microscope

Place of Origin:

Shenzhen , China

Brand Name:

Neutral / Customization



Model Number:

DM022D(400nm UV)

Contact Us

Request A Quote
Product Details
Model Name:
DM022D(400nm UV)
1920*1080 / 1280*720 / 640*480
Focus Range:
From 0mm To 55mm On Metal Stand
Frame Rate:
30 Fps At 2MP Output
Light Source:
4pcs White LED+4pcs 400nm UV LED
Image Sensor:
2 Megapixel 1/3" CMOS Image Sensor
Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
Neutral / Customization Giftbox / 16pcs per carton
Delivery Time
6~36 working days
Payment Terms
L/C, T/T, Western Union, D/A, D/P
Supply Ability
Product Description

2MP USB UV Light Microscope For Computer with Holder Lab Microscopes for Industrial Checking, Jewelry Appraisal, Detecting


1: When connected to the PC,It is powered via USB port , It has up to 250x continuous magnification when connect with large monitor.

2: The height adjustable stand of this USB microscope can adjust the magnification and the distance between the camera and the object by the controller.Sturdy and nicely weighted base enable to minimize shaking and keep your specimen in sharp focus.


Product Specification:

Model Model Name DM022D(400nm UV)
Features Connection USB 2.0 to PC
Image Sensor 2 Megapixel 1/3" CMOS Image Sensor
Photo And Video Resolution 1920*1080 / 1280*720 / 640*480
Magnification Ratio Real 10x~200x(Based On 21 inch Display)
Max.Frame Rate 30 fps at 2MP Output
Light Source 4pcs white LED+4pcs 400nm UV LED
LED Brightness Adjustable Yes
Focus Range From 0mm to 55mm on metal stand
Lens Type Optical Glass
Advantage Switchable Polarizer No
Brand Name Toproview / Neutral / Customization
Customized Support OEM / ODM / OBM
Certification CE / FCC / RoHS
Focus Mode Manual Continuous Focus
Warranty 1 Year
Software PC Software DigiCapture Pro (Customizable)
PC Software Supported Operation Systems Windows 7 / 8 / 10 , macOS 11.2.1 or above
PC Software OSD Language There Are 16 Languages Built In The Software
PC Software With Professional Measurement Yes
PC Software Support Four Display Concurrently Yes
PC Software Support Photo,Video Recording,Timed Photo And Timed Video Yes
PC Software Support Plug and Play Yes
Package details Accessories CD, USB cable,calibration ruler,metal stand
Body Dimension 110x35x25mm
Gross Weight 0.06KG
Gift Box 22*16*9cm
Gross Weight 0.6KG
Carton Box 46.5*33*37.5cm
Gross Weight 10.5KG
Carton 16Pcs


Product Advantages:

1: This digital microscope can be used for coin stamps collection,skin inspection, industrial inspection(PCB),Animals and plants,insect observation, learning detection, distinguishing between true and false, identification of jewelry, print detection,circuit board repair.It's the best gift for children, students, collectors, testers, and anyone interested in exploring the microscopic world.


Product picture:

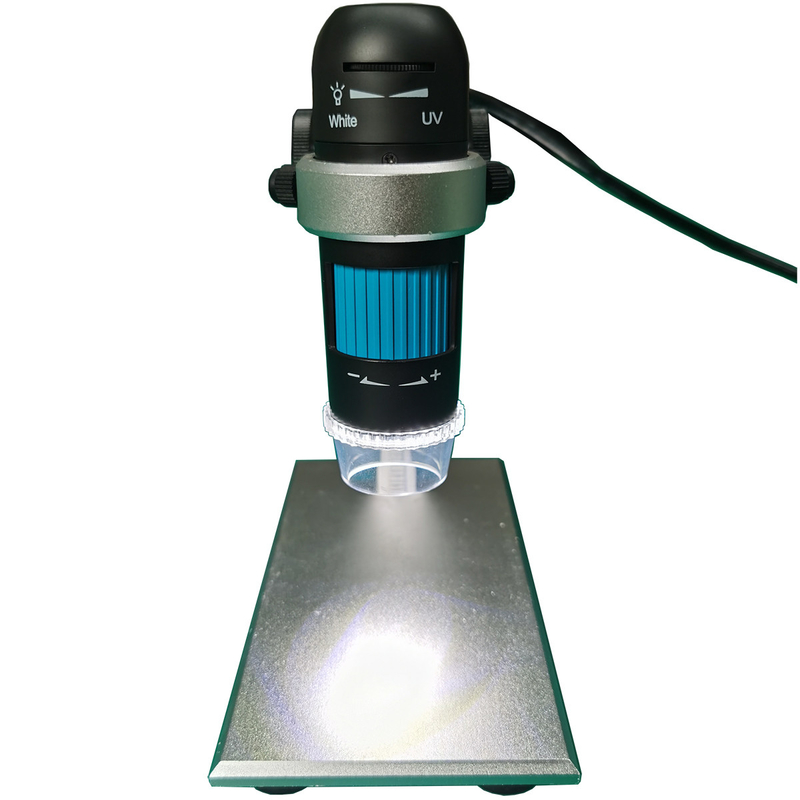

2MP USB UV Light Microscope For Jewelry Inspection With 1920x1080 0

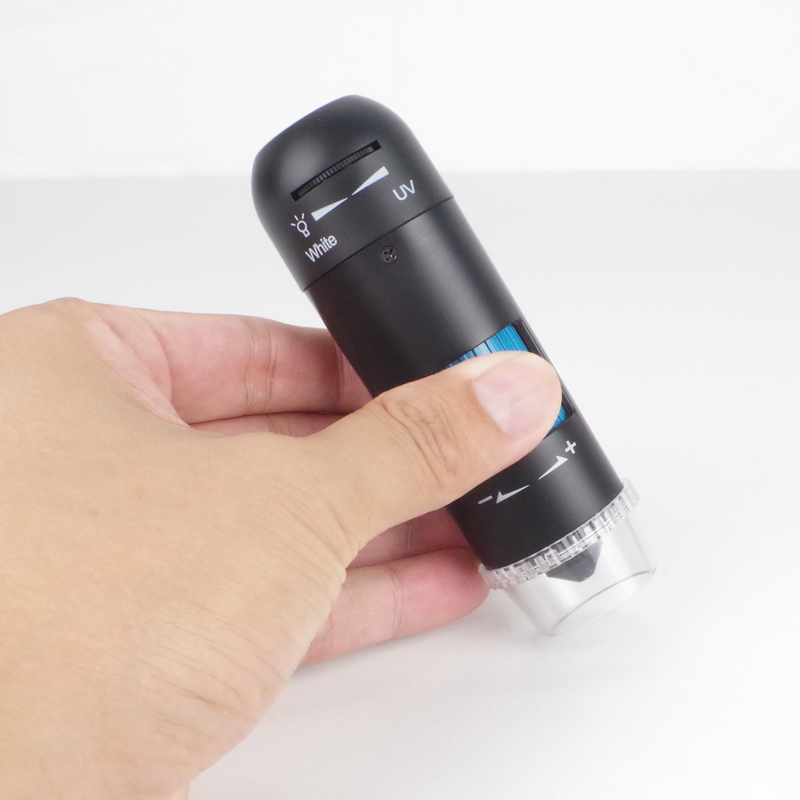

2MP USB UV Light Microscope For Jewelry Inspection With 1920x1080 1
