Place of Origin:
China
Brand Name:
Toproview/Neutral/Customization
Certification:
CE/FCC/RoHS
Model Number:
DM023B
Contact Us

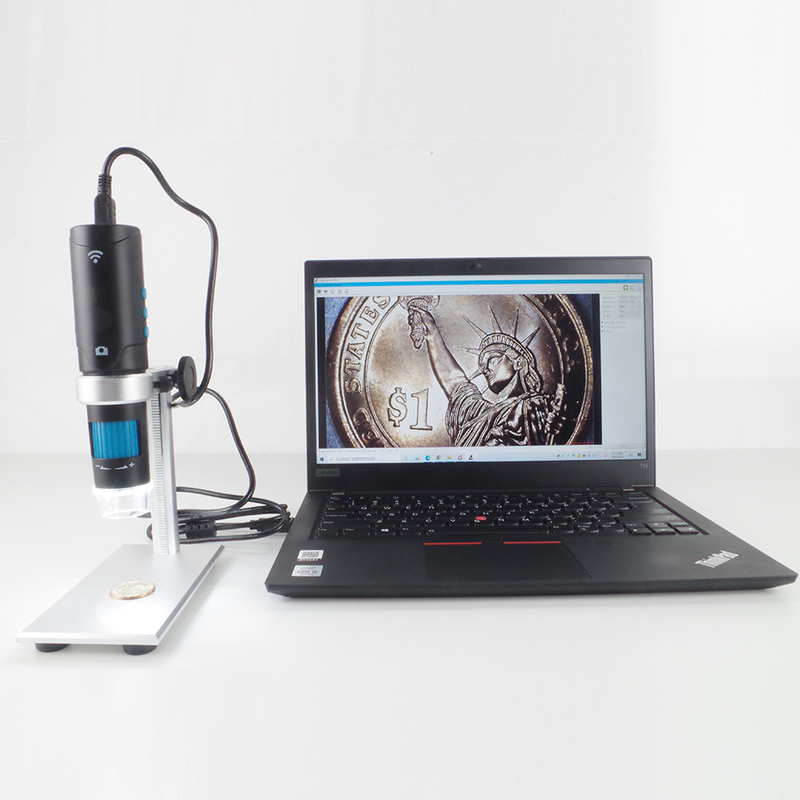

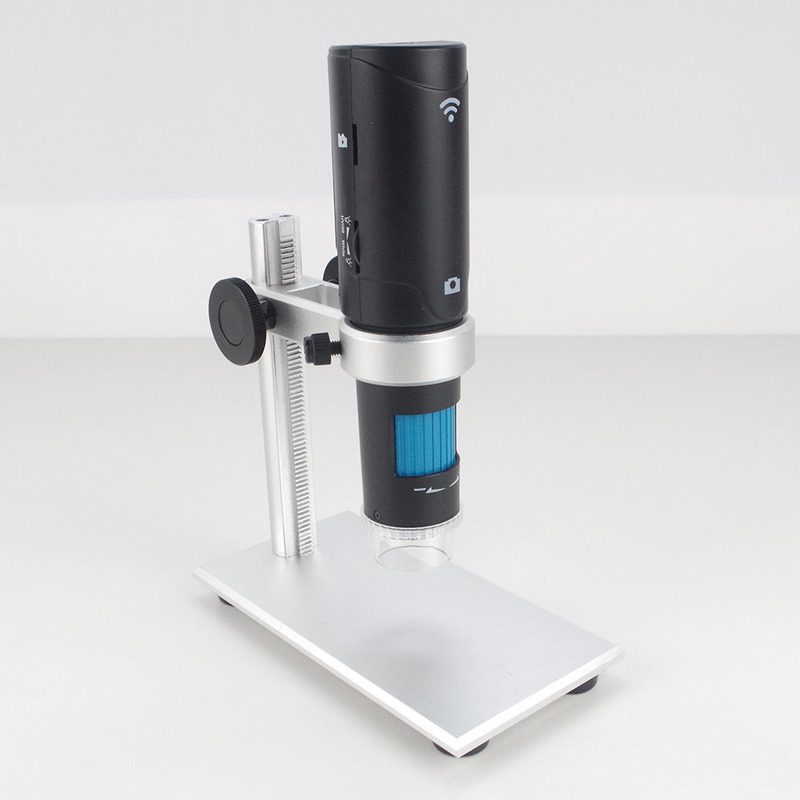

Mobile Compatible Handheld UV Light Microscope with True High Quality 2 Mega Pixel Sensor
Main Features
* Image and video resolution: 1920x1088/1280x720/864x480.
* Max. Frame is up to 25 fps at the highest resolution 2MP, that means you will get the smooth video even in the high resolution without any stuck and stop.
* Support to output through WiFi and USB connection, which is with the wonderful compatibility with smart devices like iPhone, iPad, Android; Windows computer; Macbook etc.,
* Digital zoom by microscope is available, user can zoom out or zoom in to see the partial view with this function.
* With SD card slot on microscope body, support SD card storage up to 32G. User can use the microscope with or without SD card inserted. The SD card slot is designed for people who is required the data transmission but not in the good network status.
SPECIFICATION
| MODEL | Model Name | DM023B |
| Connection | WiFi to smart devices; USB 2.0 to PC | |
| OPTICS | UV light | Yes |
| Magnification | Real 10x~200x | |
| Lens type | Optical glass | |
| Focus range | Manual focus 0~110mm(with stand) | |
| Illumination | 8 adjustable LEDs(white + purple) | |
| SENSOR | Sensor type | CMOS |
| Size | 2 megapixel | |
| Resolution | 1920*1080 | |
| Max.Frame rate | 25 fps at 2MP output | |
| FEATURES | APP | TopScope Pro for iOS/Android (customizable) |
| Software | DigiCapture Pro for Windows/MacOS (customizable) | |
| Measurement function(PC Software) | Yes | |
| Supported operation systems (Smart device) |
iOS 12.0 or later Android 4.2 or later | |
| Supported operation systems (Computer) |
Windows 7/8/10macOS 11.2.1 or above | |
| Capturing by microscope | Yes with recording button on microscope | |
| Recording by microscope | Yes with digital zoom button on microscope | |
| Certification | CE/FCC/RoHS | |
| REPLACEABLE BATTERY | 18650 Lithium-Ion Battery | 2000mAh rechargeable and replaceable |
| Battery working time | Continue working for 2.5 hours | |
| Charging time | 2.5hrs (when WiFi Digital Microscope power off) | |
| PHYSICAL | Body dimensions | 16.6*4.5*4.0cm |
| Gross weight | 0.2kg | |
| Stand | metal stand for neutral product; support to customize |
APPLICATIONS
* DM023B Handheld UV Light Microscope can be used in beauty salons, beauty chain agencies, cosmetics distribution sales, beauty products distribution sales, skin care products distribution sales, health products distribution sales, personal and family self-test and so on! Choosing a suitable cosmetic skin analyzer can improve the scientific basis of analysis, the quality of service and the efficiency of work, giving consumers a better experience.
* Fiber and textiles check
* Cosmetic effects corroboration
* Laboratory and classroom research
* Field use for agricultural close quality control
* Mineral prospections
* Education and on-site classroom demonstrations.
