Shenzhen Toproview Technology Co., Ltd

Polarizer Plug and Play Pc Camera Microscope 110mm Usb Microscope Camera

Product Details:
Place of Origin: China
Brand Name: Toproview/Neutral/Customization
Certification: CE/FCC/RoHS
Model Number: DM022C
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Neutral/Customization Giftbox/16pcs per carton
Delivery Time: 5~35 working days
Payment Terms: L/C, T/T, Western Union, D/A, D/P
Supply Ability: 50000pcs/month
  • Detail Information
  • Product Description

Detail Information

Polarizer Switch: Yes Image Sensor: CMOS Image Sensor
Sensor Resolution: 2592*1944 Light Source: Dimmable LED Ring Illuminator
Accessories: USB Cable,CD,calibration Ruler,metal Or Acrylic Stand Max. Frame: 25fps At 5MP
High Light:

Polarizer Pc Camera Microscope

,

Pc Camera Microscope 110mm

,

110mm Usb Microscope Camera

Product Description



Built-on polarizer USB Hight Resolutio Digital Microscope True 250x Optical Magnification

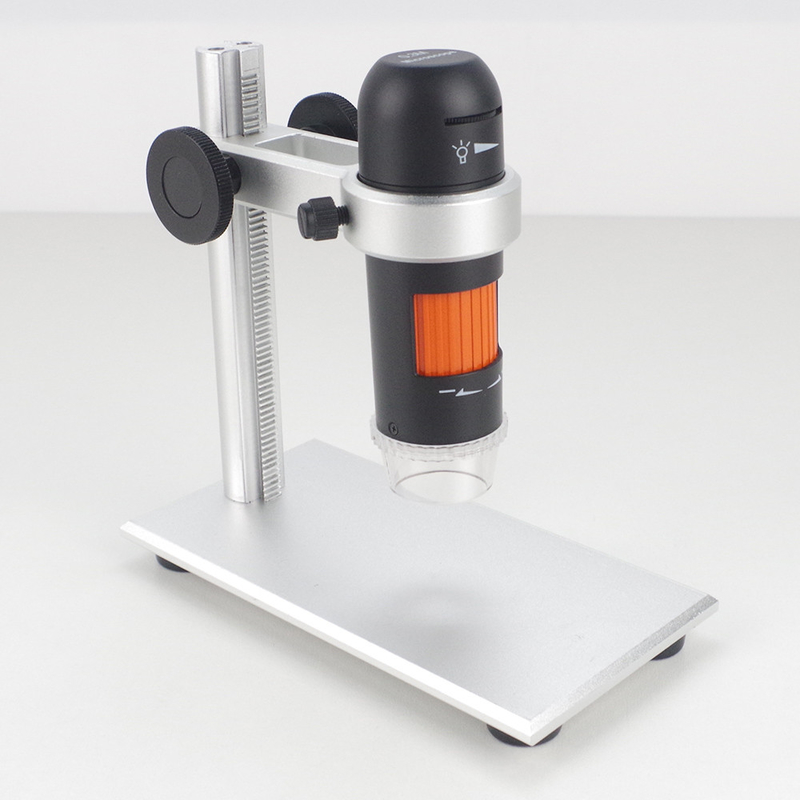

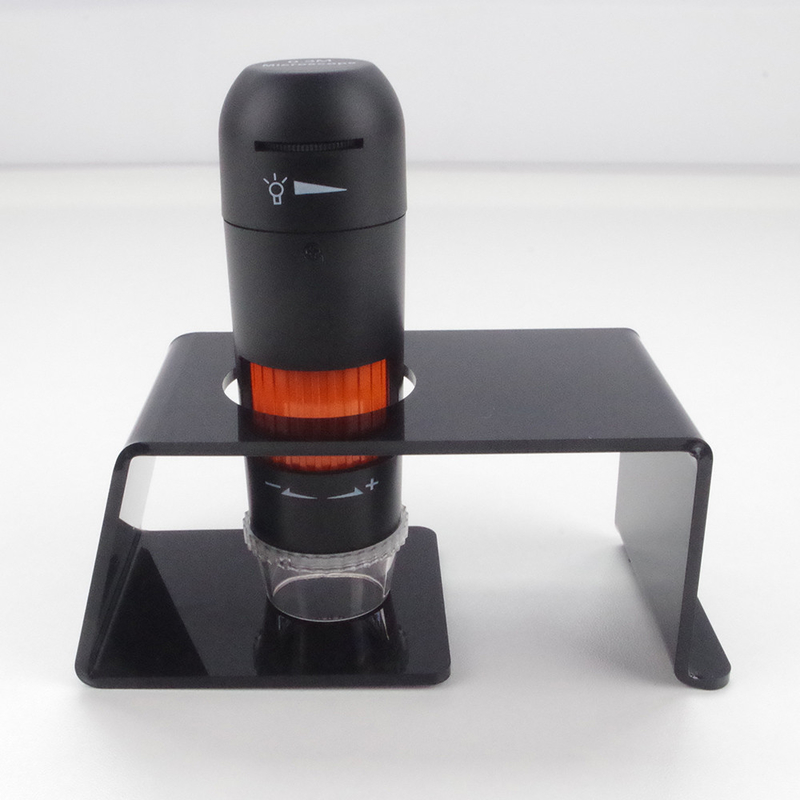

DM022C 5MP High resolution digital microscope features a plug-and-play USB interface for an easy computer link, as well as adjustable magnification, image and video capture, a large working distance, and a broad magnification range from 10x up to 200x.

Also, you can capture a video or photo, analyze and save images with enclosed free software too.



Main features

* Image sensor is the high resolution 5M pixels (2592*1944), 1/3.2" CMOS Image Sensor.

* Photo and video resolution are optional from 5MP, 4MP, 3MP, 2MP, 1.3MP.

* Max frame rate is up to 25fps at 5MP output, user can get the super high quality and smooth viewing and recording.



PRODUCT SPECIFICATIONS

MODEL

Model Name

DM022C



Connection

USB 2.0

OPTICS

Polarizer

Yes



Magnification

Real 10x~250x(based on 21 inch Display)



Lens type

Optical glass



Focus range

Manual focus 0~110mm



Illumination

8 adjustable white LED

SENSOR

Sensor type

CMOS



Size

5 megapixel



Resolution

2590*1944



Frame rate

25 fps at 5MP output;
35 fps at 2MP output

FEATURES

Software

DigiCapture Pro for
Windows/MacOS



Measurement function

Yes



Certification

CE/FCC/RoHS

PHYSICAL

Dimensions

18*34*30cm



Gross weight

0.2kg



Stand

Comes with metal stand





Polarizer Plug and Play Pc Camera Microscope 110mm Usb Microscope Camera 0Polarizer Plug and Play Pc Camera Microscope 110mm Usb Microscope Camera 1





FAQ

Q: What's polarizer feature for digital microscope?

Toproview: This is the new technology in current digital microscope field. This new technology is creatively using the integrated polariscope knob to adjust the light intensity from the digital microscope and external environment, and attempt to reflect, reduce, filtrate the light and make it easy to observe the reflective objects. Like SMD board, diamond, crystal, porcelain, polishing metal etc., will be easy to observed with the help of this function.

Q: Do you offer custom solution?

Toproview: Yes, we can offer custom solution if standard products couldn't meet buyer' requirements. OEM&ODM order are welcome.
