Micro Soldering Usb 2.0 Uvc Pc Camera Microscope For Computer Usb Polarizer

Micro Soldering Usb 2.0 Uvc Pc Camera Microscope For Computer Usb Polarizer

Usb 2.0 Uvc Pc Camera Microscope

Polarizer Usb 2.0 Uvc Pc Camera Microscope

Microscope For Computer Usb Polarizer

Place of Origin:

Shenzhen , China

Brand Name:

Neutral / Customization



Model Number:


Contact Us

Request A Quote
Product Details
Model Name:
Switchable Polarizer:
2000mAh Lithium-Ion
PC Software:
DigiCapture Pro (Customizable)
APP For Smart Devices:
Topscope Pro (Customizable)
1 Year
Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
Neutral / Customization Giftbox / 20pcs per carton
Delivery Time
6~36 working days
Payment Terms
L/C, T/T, Western Union, D/A, D/P
Supply Ability
Product Description

Professional Handheld High Resolution Digital Microscope With Polarizer For Adults Micro Soldering Microscope


1: The microscope device has TF card slot, you can capture and record a video when observing.

2: 8 x built-in LED lights on the botton of lens : adjustable, there is a light controller on the microscope. If have requestment at the brightness, you can adjust it by yourself.


Product Specification:

Model Model Name DM023A
Features Connection WiFi to Smart Devices / USB 2.0 to PC
Image Sensor 2 Megapixel CMOS
Photo And Video Resolution 1920*1088 / 1280*720 / 864*480
Magnification Ratio Real 10x~200x(Based On 24 inch Display)
Max.Frame Rate 25 fps at 2MP Output
Light Source 8Pcs SMT White LED
LED Brightness Adjustable Yes
Focus Range From 0mm to 110mm
Lens Type Optical Glass
Brand Name Toproview / Neutral / Customization
Customized Support OEM / ODM / OBM
Certification CE / FCC / RoHS
Advantage Switchable Polarizer Yes
Capture Microtouch On Microscope Yes
Recording Button On Microscope Yes
Digital Zoom Button On Microscope Yes
Rechargeable And Replaceable Battery 2000mAh 18650 Lithium-Ion
Battery Working Time Continue working for 2.5 hours
Charging Time 2.5hrs (When WiFi Digital Microscope Power Off)
SD Card Slot Support SD Card Storage Up To 32G (Not Included In The Neutral Package)
Warranty 1 Year
Software APP for Smart Devices Topscope Pro (Customizable)
APP Supported Operation Systems iOS 12.0 or later, Android 4.2 or later
APP Supported Photo And Video Recording Yes
APP Supported Battery Capacity Display Yes
PC Software DigiCapture Pro (Customizable)
PC Software Supported Operation Systems Windows 7/8/10 , macOS 11.2.1 or above
PC Software OSD Language There Are 16 Languages Built In The Software
PC Software With Professional Measurement Yes
PC Software Support Four Display Concurrently Yes
PC Software Support Photo,Video Recording,Timed Photo And Timed Video Yes
PC Software Support Plug and Play Yes
Package details Accessories CD, USB cable,replaceable battery,calibration ruler,metal stand,Quick Start Guide
Body Dimension 16.6*4.5*4.0cm
Gross Weight 0.2KG
Gift Box 26*18*8cm
Gross Weight 0.65KG
Carton Box 54.2*37*42cm
Gross Weight 14.5KG
Carton 20Pcs


Product Advantages:

1: Used to coin and stamp collecting: take images of coins and stamps; look at fossils, bugs, plants and so on.

2: Built-in 8 adjustable LED lights, 1080P FullHD camera, adjusting knob to zoom in or out, digital microscope provides excellent details and optimal clarity. It is good for any inspection environment and ensures the magnified images are clear and bright.

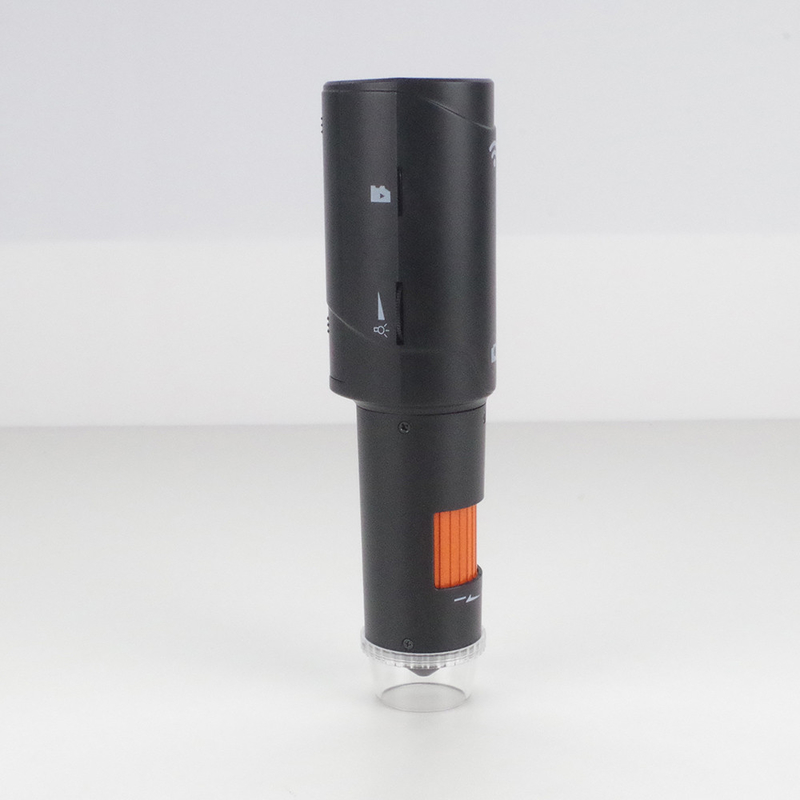

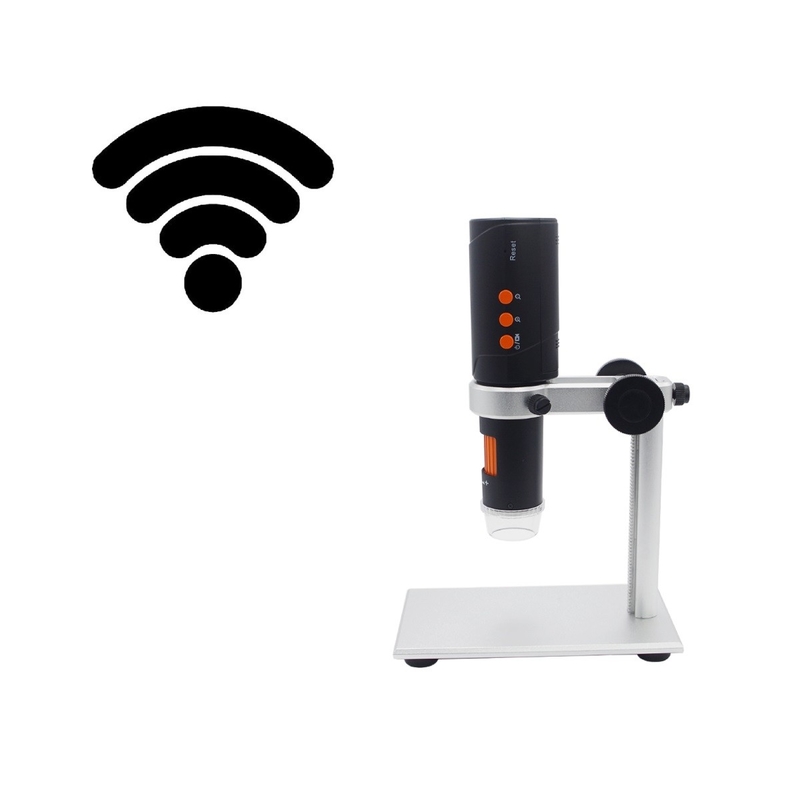

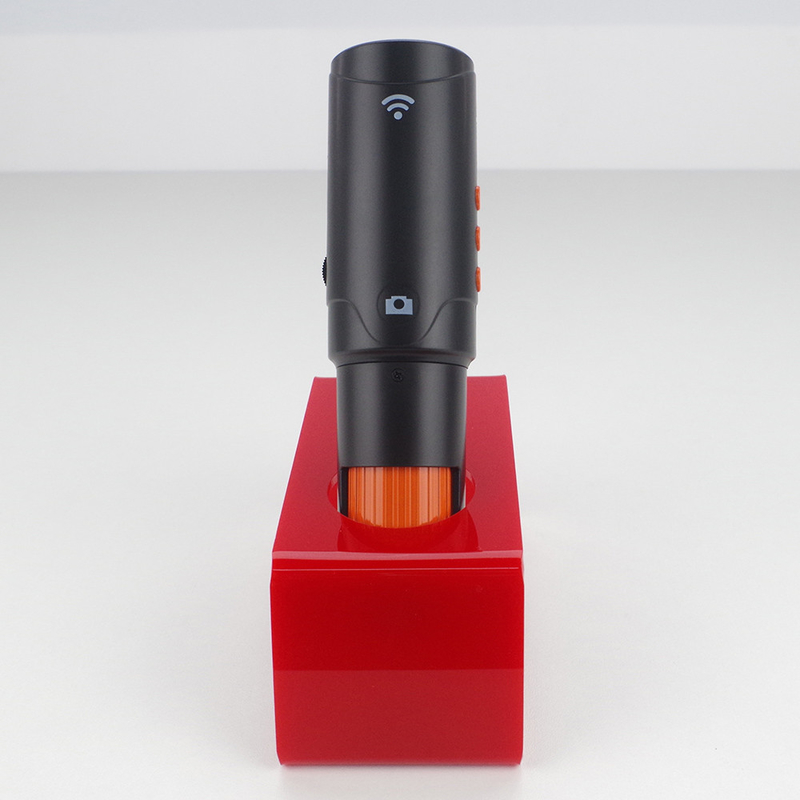

Product picture:

Micro Soldering Usb 2.0 Uvc Pc Camera Microscope For Computer Usb Polarizer 0



Micro Soldering Usb 2.0 Uvc Pc Camera Microscope For Computer Usb Polarizer 1
