10 To 200X High Resolution Usb Microscope WiFi

Product Details:
Place of Origin: Shenzhen , China
Brand Name: Neutral / Customization
Certification: CE / FCC / RoHS
Model Number: DM023A
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Neutral / Customization Giftbox / 20pcs per carton
Delivery Time: 6~36 working days
Payment Terms: L/C, T/T, Western Union, D/A, D/P
Supply Ability: 60000pcs/month
  • Detail Information
  • Product Description

Detail Information

Model Name: DM023A Resolution: 1920*1088 / 1280*720 / 864*480
Light Source: 8Pcs SMT White LED Battery: 2000mAh 18650 Lithium-Ion
LED Brightness Adjustable: Yes Lens Type: Optical Glass
High Light:

Toproview 200X High Resolution Usb Microscope


FCC High Resolution Usb Microscope


FCC 10x WiFi Digital Microscope

Product Description

WiFi Digital Microscope 10 To 200X High Resolution Digital Microscope 8 LED Compatible with iOS Android Mac Windows


1: This microscope have a native 2MP CMOS HD sensor and micro-SD card slot. Insert the TF card(not come with microscope), you could take a photo and shoot a video, also it's possible to take a still photo while the video is being recorded.

2: The microscope is equipped with built-in battery. It's convenient for you to go outside to inspect the plants & insects etc.


Product Specification:

Model Model Name DM023A
Features Connection WiFi to Smart Devices / USB 2.0 to PC
Image Sensor 2 Megapixel CMOS
Photo And Video Resolution 1920*1088 / 1280*720 / 864*480
Magnification Ratio Real 10x~200x(Based On 24 inch Display)
Max.Frame Rate 25 fps at 2MP Output
Light Source 8Pcs SMT White LED
LED Brightness Adjustable Yes
Focus Range From 0mm to 110mm
Lens Type Optical Glass
Brand Name Toproview / Neutral / Customization
Customized Support OEM / ODM / OBM
Certification CE / FCC / RoHS
Advantage Switchable Polarizer Yes
Capture Microtouch On Microscope Yes
Recording Button On Microscope Yes
Digital Zoom Button On Microscope Yes
Rechargeable And Replaceable Battery 2000mAh 18650 Lithium-Ion
Battery Working Time Continue working for 2.5 hours
Charging Time 2.5hrs (When WiFi Digital Microscope Power Off)
SD Card Slot Support SD Card Storage Up To 32G (Not Included In The Neutral Package)
Warranty 1 Year
Software APP for Smart Devices Topscope Pro (Customizable)
APP Supported Operation Systems iOS 12.0 or later, Android 4.2 or later
APP Supported Photo And Video Recording Yes
APP Supported Battery Capacity Display Yes
PC Software DigiCapture Pro (Customizable)
PC Software Supported Operation Systems Windows 7/8/10 , macOS 11.2.1 or above
PC Software OSD Language There Are 16 Languages Built In The Software
PC Software With Professional Measurement Yes
PC Software Support Four Display Concurrently Yes
PC Software Support Photo,Video Recording,Timed Photo And Timed Video Yes
PC Software Support Plug and Play Yes
Package details Accessories CD, USB cable,replaceable battery,calibration ruler,metal stand,Quick Start Guide
Body Dimension 16.6*4.5*4.0cm
Gross Weight 0.2KG
Gift Box 26*18*8cm
Gross Weight 0.65KG
Carton Box 54.2*37*42cm
Gross Weight 14.5KG
Carton 20Pcs


Product Advantages:

1: Used to PCB assembly inspection, especially SMT work; jewelry repair and jeweler’s/maker’s mark identification.

2: This portable microscope is compatible with Andriod/IOS system phones and tablets. Also, this digital microscope supports camera, video and file storage.


Product picture:

10 To 200X High Resolution Usb Microscope WiFi 0

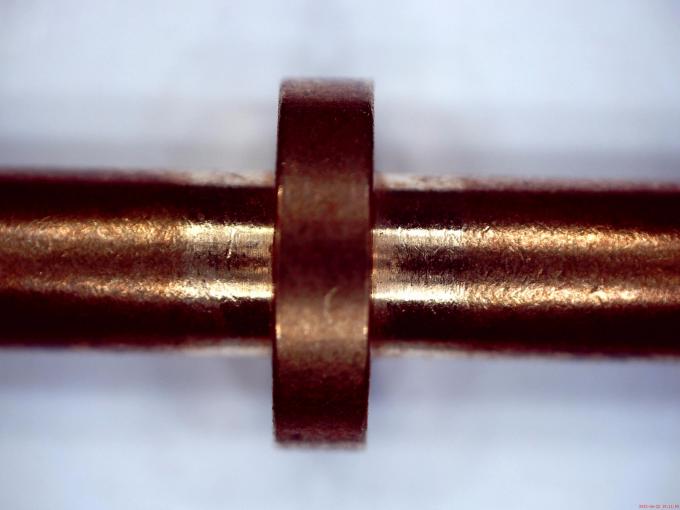

                                                   Before Polarizer Adjustment


10 To 200X High Resolution Usb Microscope WiFi 1

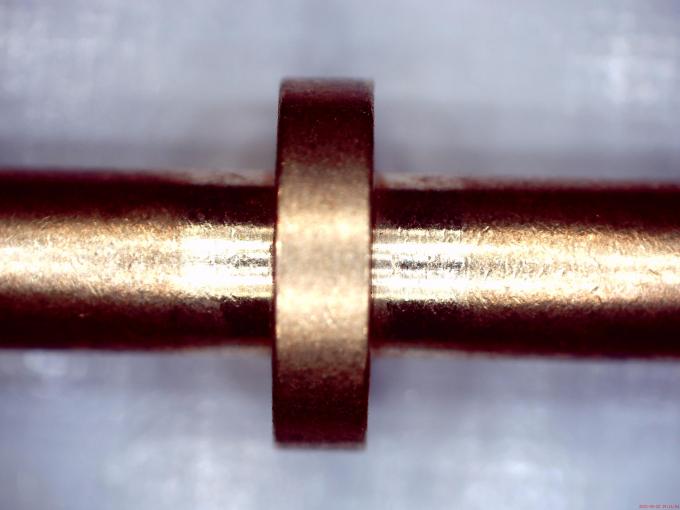

                                                    After Polarizer Adjustment



10 To 200X High Resolution Usb Microscope WiFi 2
