RoHS JPEG Camera Module OV528 RS485

Product Details:
Place of Origin: Shenzhen , China
Brand Name: Neutral / Customization
Certification: CE/FCC/RoHS
Model Number: CA025M-RS485-3.3V
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Neutral / Customization Giftbox / 16pcs per carton
Delivery Time: 6~36 working days
Payment Terms: L/C, T/T, Western Union, D/A, D/P
Supply Ability: 60000pcs/month
  • Detail Information
  • Product Description

Detail Information

Model Name: CA025M-RS485-3.3V Interface: RS485
Baud Rate: 9600 To 115200bps Image Resolution: VGA(640*480) / QVGA(320*240) / QQVGA(160*120)
Image Sensor: OV7725 1/4" CMOS Image Sensor Image Compression: JPEG
High Light:

RoHS JPEG Camera Module

,

JPEG Camera Module OV528

,

OV528 RS485 Camera Module

Product Description

RS485 JPEG Serial Camera Module OV528 Communication Protocol Very Suitable For GPS Outdoor remote photography



1: RS485 OV7725 serial interface with OV528 Communication Protocol.

2: The camera lens adopt full glass material, camera lens with the base both use magnesium alloy material.



Product Specification:

Model Model Name CA025M-RS485-3.3V
Features Interface RS485
Working Power DC 3.3V
Working Current About 70mA (Standby: 50mA)
Image sensor OV7725 1/4" CMOS Image Sensor
Pixels 0.3 Megapixel
Image Compression JPEG
Baud Rate 9600 to 115200bps
Lens F:2.8mmIR:850nmFOV:100°
Image Resolution VGA(640*480) / QVGA(320*240) / QQVGA(160*120)
Advantage White Balance Automatic
Exposure Automatic
Auto Gain Control Automatic
Working Temperature -10 to 70 degree Celsius
Warranty Limited One-Year Warranty and Lifetime Product Support

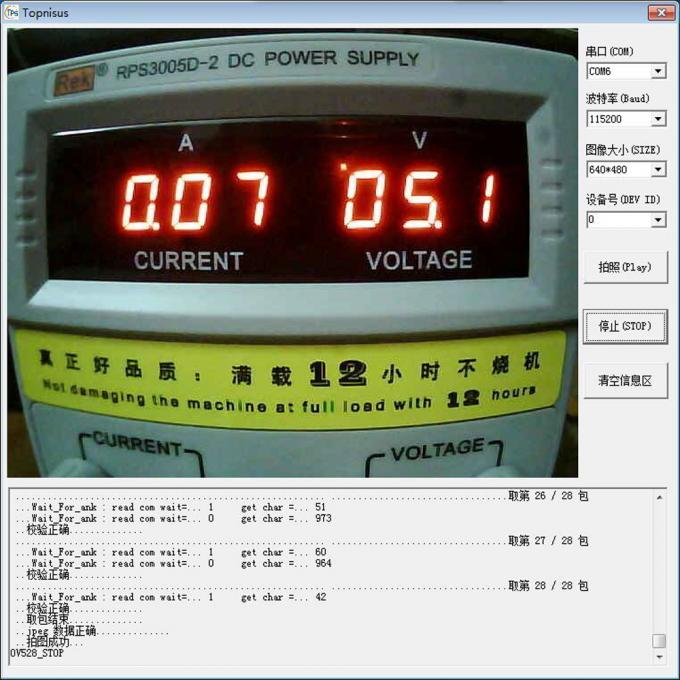

Software JPEG Serial Port Camera Test Software Yes
User Manual OV528 Protocol Yes
Communication protocol OV528
Package details Size 38mm*38mm / 32mm*32mm
Gross Weight 0.01KG
Package Included 1 x RS485 JPEG Camera Module



Product Advantages:

1: Low cost and low powered camera for embedded imaging applications.

2: On-board EEPROM provides a command-based interface to external host via RS232,RS485 and TTL serial link.

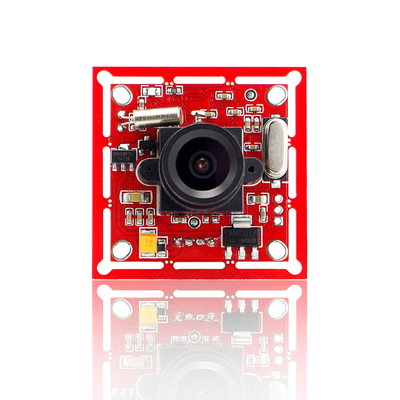

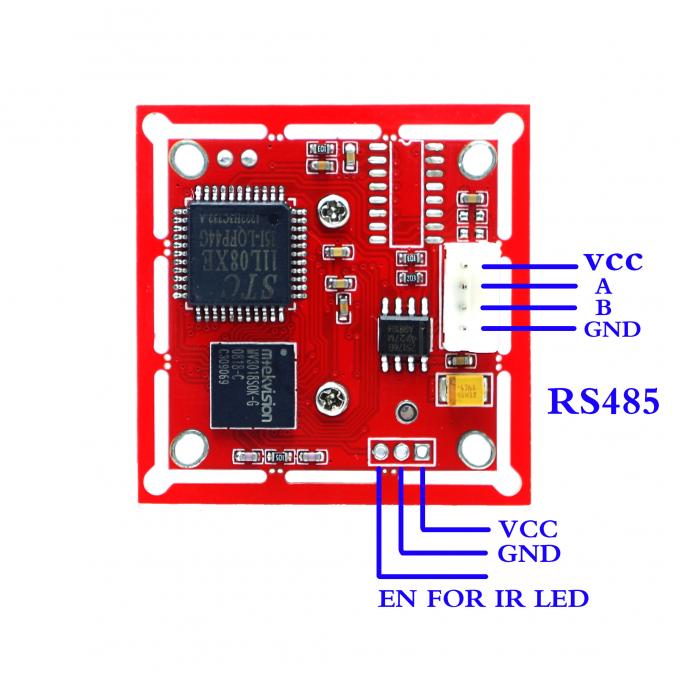

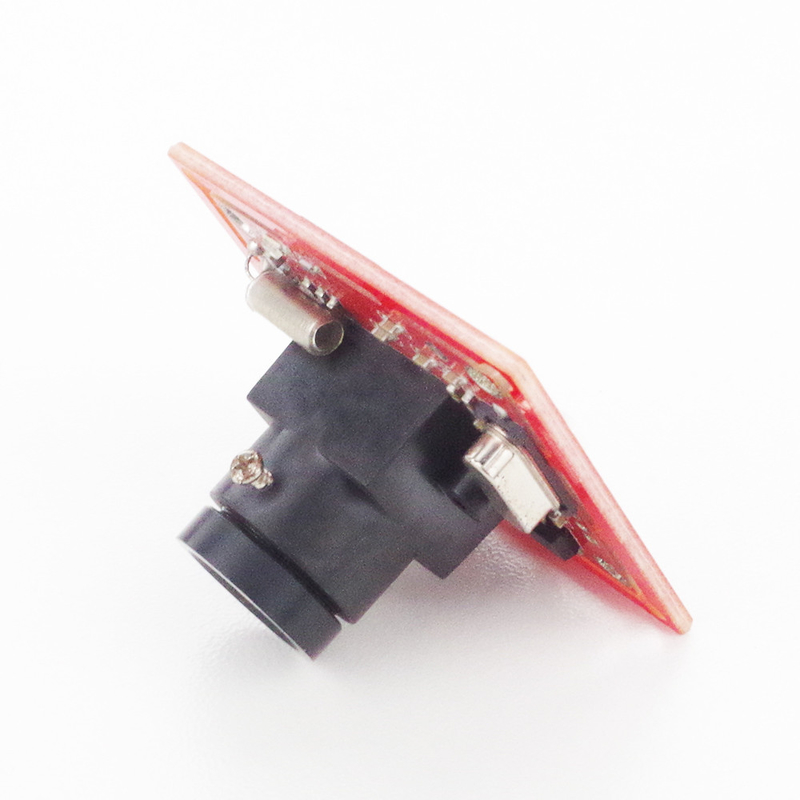

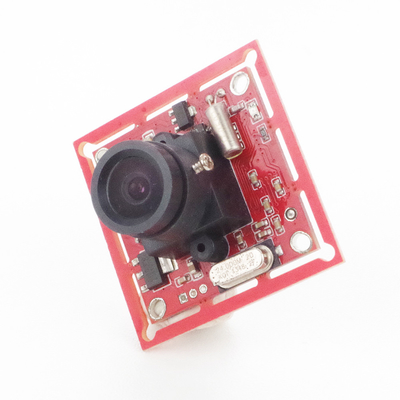

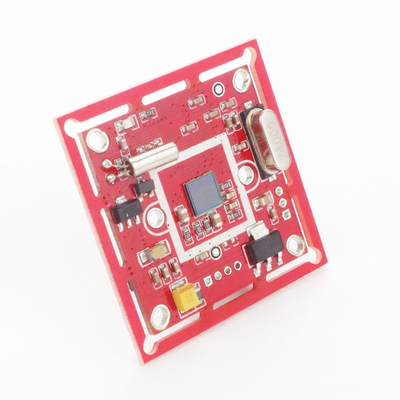

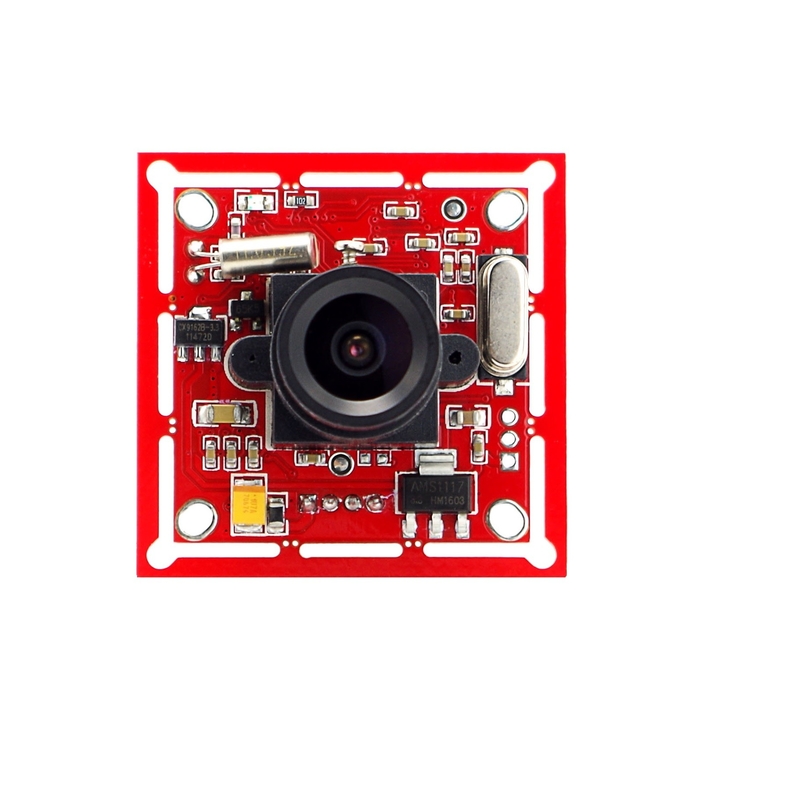

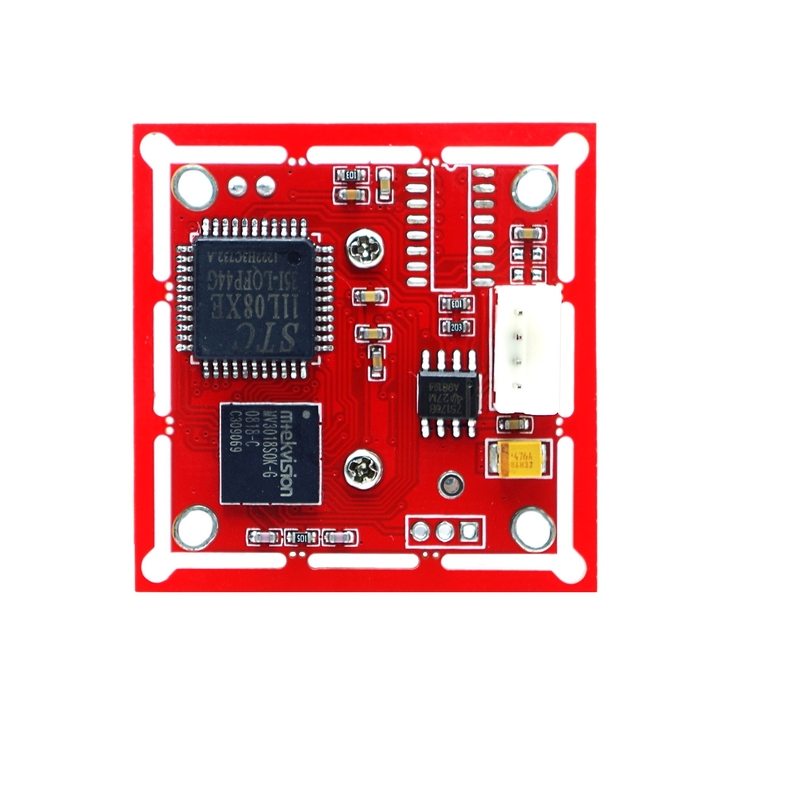

Product picture:

RoHS JPEG Camera Module OV528 RS485 0



RoHS JPEG Camera Module OV528 RS485 1



FAQ:

RoHS JPEG Camera Module OV528 RS485 2
