Shenzhen Toproview Technology Co., Ltd

Polarizer Professional Digital Microscope RoHS Handheld Microscope For Iphone

Product Details:
Place of Origin: China
Brand Name: Toproview/Neutral/Customization
Certification: CE/FCC/RoHS
Model Number: DM023A
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Neutral/Customization Giftbox/16pcs per carton
Delivery Time: 5~35 working days
Payment Terms: L/C, T/T, Western Union, D/A, D/P
Supply Ability: 50000pcs/month
  • Detail Information
  • Product Description

Detail Information

Model Name: DM023A Dermatoscope Camera Pixel: 2.0 MP
Max. Frame: 25fps At 2MP Polarizer: Yes
Take Photo: Yes System Support: Android, IOS, IMAC, Windows
High Light:

Professional Digital Microscope RoHS

,

FCC Polarizer Professional Digital Microscope

,

FCC Handheld Microscope For Iphone

Product Description



Polarizer Digital Dermatoscope for iPhone Android Mobile Used in Medical Clinic Mole Analyzer



DESCRIPTION

Main Features

With Polarizer scroll to anti reflective light

A polarized dermatoscope offers specialized lighting which automatically eliminates the glare created from the reflection of the skin, and thus removes the need for the application of a liquid medium to the skin for each imaging session.

* With capture microtouch on microscope, different from the traditional capture press button for other wireless digital microscope in the market, this model allows user to take capture by touch the “microtouch” to avoid the fuzzy captures by trembling.

* Optional photo and video resolution is with FHD(1920*1088)/HD(1280*720)/VGA(864*480), which are available on both smart devices like iPhone, iPad, Android phone, and computer(Windows and Macbook).



WIRELESS DIGITAL MICROSCOPE SPECIFICATION

MODEL

Model Name

DM023A



Connection

WiFi to smart devices; USB 2.0 to PC

OPTICS

Polarizer

Yes



Magnification

Real 10x~200x



Lens type

Optical glass



Focus range

Manual focus 0~110mm(with stand)



Illumination

8 adjustable white LED

SENSOR

Sensor type

CMOS



Size

2 megapixel



Resolution

1920*1080



Max.Frame rate

25 fps at 2MP output

FEATURES

APP

TopScope Pro for iOS/Android (customizable)



Software

DigiCapture Pro for Windows/MacOS (customizable)



Measurement function(PC Software)

Yes



Supported operation systems
(Smart device)

iOS 12.0 or later, Android 4.2 or later



Supported operation systems
(Computer)

Windows 7/8/10,macOS 11.2.1 or above



Capturing by microscope

Yes, with recording button on microscope



Recording by microscope

Yes, with digital zoom button on microscope



Certification

CE/FCC/RoHS

REPLACEABLE BATTERY

18650 Lithium-Ion Battery

2000mAh rechargeable and replaceable



Battery working time

Continue working for 2.5 hours



Charging time

2.5hrs (when WiFi Digital Microscope power off)

PHYSICAL

Body dimensions

16.6*4.5*4.0cm



Gross weight

0.2kg

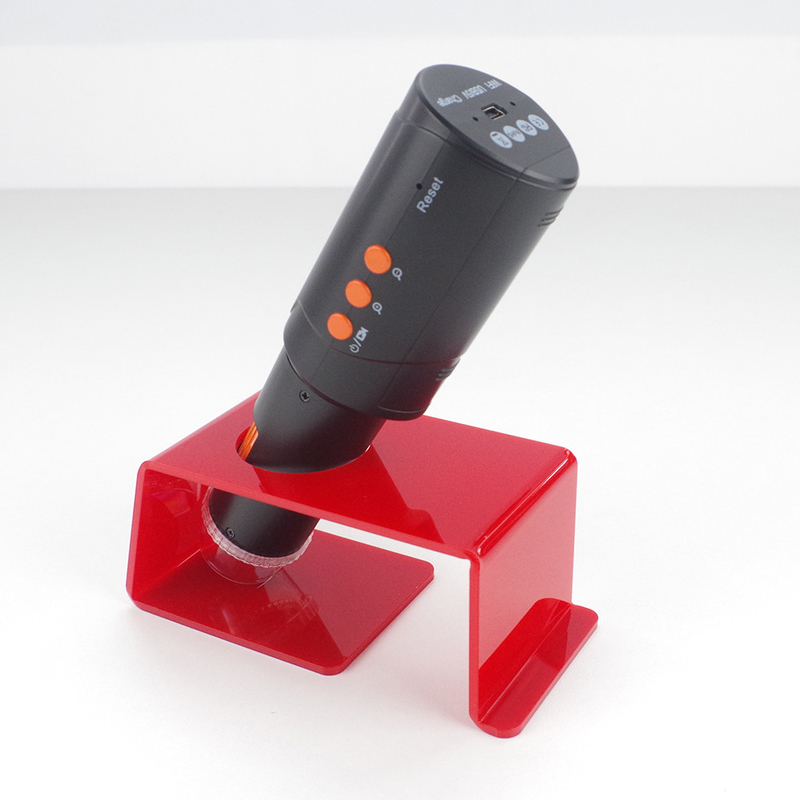

Stand

Metal stand for neutral product; support to customize





PACKING WAYS

Wide application field: Industrial and electronic inspectin, Skin Dermatoscope, Hair Scalp Trichology, Research and scientific analysis, Education forensics, Textile inspection, Print inspection, Collectibles, Jewelry and watch repair etc.,

Polarizer Professional Digital Microscope RoHS Handheld Microscope For Iphone 0

Polarizer Professional Digital Microscope RoHS Handheld Microscope For Iphone 1

PACKING WAYS

Neutral product with individual box, 16pcs per carton.

According to export standard packing.
