Place of Origin:
China
Brand Name:
Toproview/Neutral/Customization
Certification:
CE/FCC/RoHS
Model Number:
DM023B
Contact Us

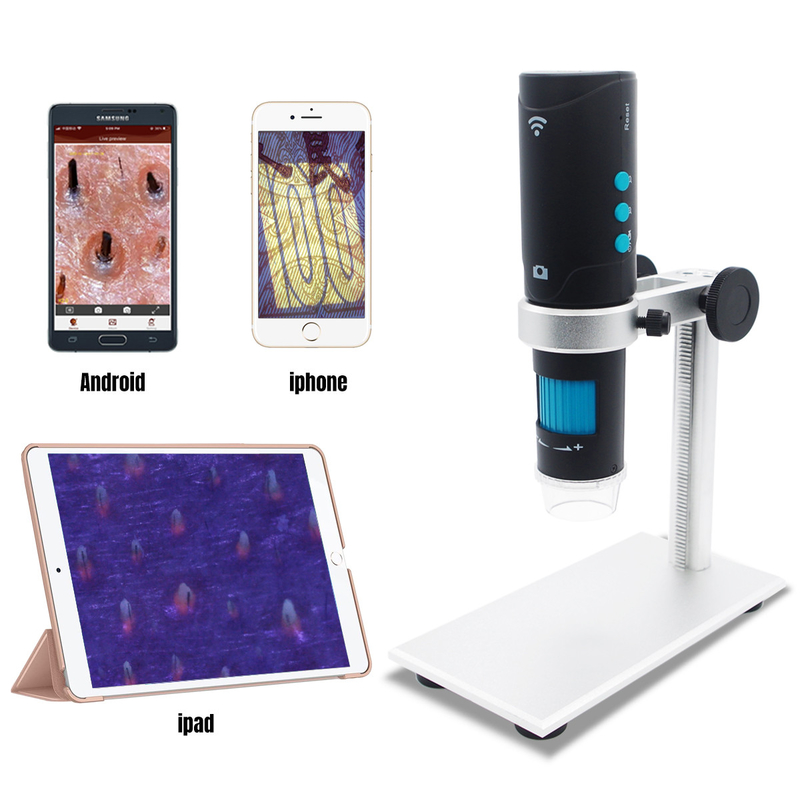

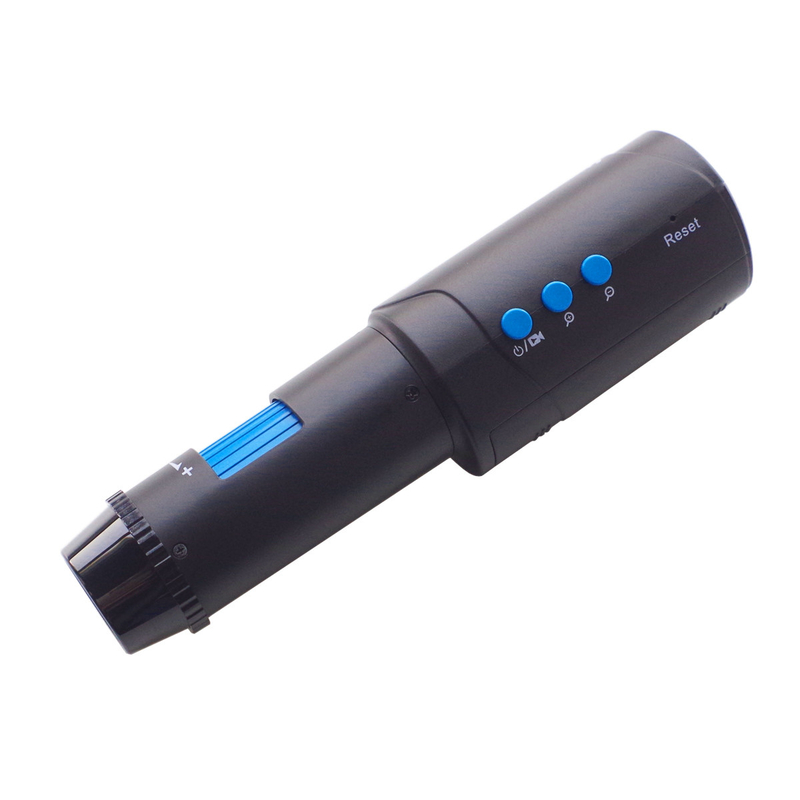

HD 1080P 200X UV Digital Dermatoscope for Home Personal Skin Beauty Usage
PRODUCT ADVANTAGE
* The MicroTouch feature is a touch sensitive trigger area on the body of the microscope that can be used to trigger an image capture. Different from the old and traditional way, we use the “touch” technology instead of “press” button to avoid the vague captures by hand shaking.
Main Features
* With replaceable 18650 battery to get the longer service life for the UV microscope digital dermatoscope.
* With touch area on the microscope body to take the captures, which can avoid shaking by pressing and get the high quality captured images.
* Optional resolution from FHD(1920*1088), HD(1280*720) to VGA(864*480), are both available on mobile(Android and iOS stystem) and PC(Windows and MacOS system).
* Max. Frame is up to 25 fps at the highest resolution 2MP, that means you will get the smooth video even in the high resolution without any stuck and stop.
SPECIFICATION
|
MODEL |
Model Name |
DM023B |
|
|
Connection |
WiFi to smart devices; USB 2.0 to PC |
|
OPTICS |

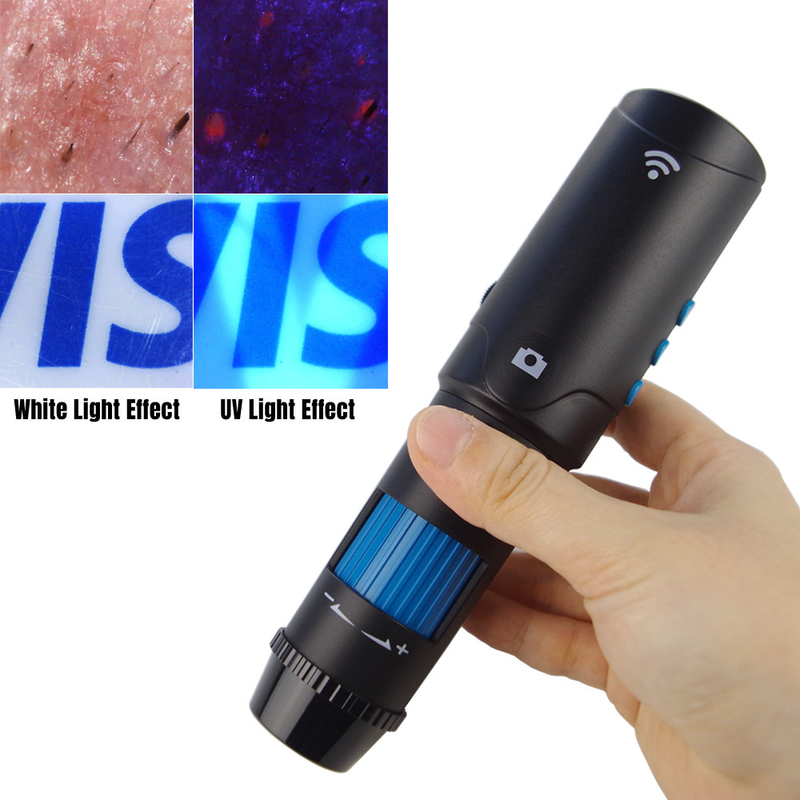

UV light |
Yes |
|
|
Magnification |
Real 10x~200x |
|
|
Lens type |
Optical glass |
|
|
Focus range |
Manual focus 0~110mm(with stand) |
|
|
Illumination |
8 adjustable LEDs(white + purple) |
|
SENSOR |
Sensor type |
CMOS |
|
|
Size |
2 megapixel |
|
|
Resolution |
1920*1080 |
|
|
Max.Fr |
25 fps at 2MP output |
|
FEATURES |
APP |
TopScope Pro for iOS/Android (customizable) |
|
|

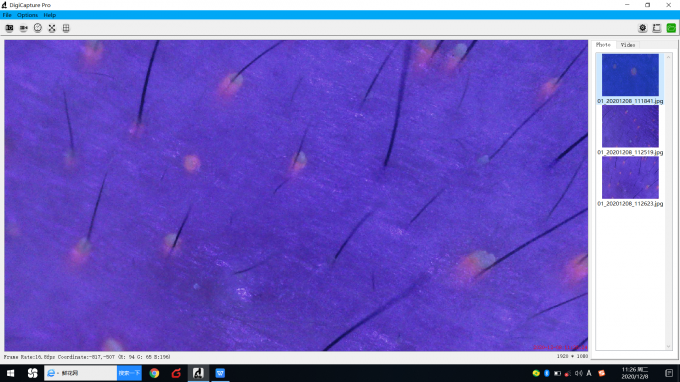

Software |
DigiCapture Pro for Windows/MacOS (customizable) |
|
|
Measurement function(PC Software) |
Yes |
|
|
Supported operation systems |
iOS 12.0 or later Android 4.2 or later |
|
|
Supported operation systems |
Windows 7/8/10macOS 11.2.1 or above |
|
|
Capturing by microscope |
Yes with recording button on microscope |
|
|
Recording by microscope |
Yes with digital zoom button on microscope |
|
|
Certification |
CE/FCC/RoHS |
|
REPLACEABLE BATTERY |
18650 Lithium-Ion Battery |
2000mAh rechargeable and replaceable |
|
|
Battery working time |
Continue working for 2.5 hours |
|
|
Charging time |
2.5hrs (when WiFi Digital Microscope power off) |
|
PHYSICAL |
Body dimensions |
16.6*4.5*4.0cm |
|
|
Gross weight |
0.2kg |
|
|
Stand |
me |
APPLICATION
Medical & Dermatology Usage especially in: Mole, Mole Examination, Blue Nevus, Freckles, Clogged Skin Pores, Hair Folicles, Hair Shaft etc.,
FAQ
Q: Do you offer custom solution?
Toproview: Yes, we can offer custom solution if standard products couldn't meet buyer' requirements. OEM&ODM order are welcome.
Q:Why choose Toproview microscopes?
Toproview: Developed for professionals yet economical for consumer or casual use
