Place of Origin:
China
Brand Name:
Toproview/Neutral/Customization
Certification:
CE/FCC/RoHS
Model Number:
DM023B
Contact Us

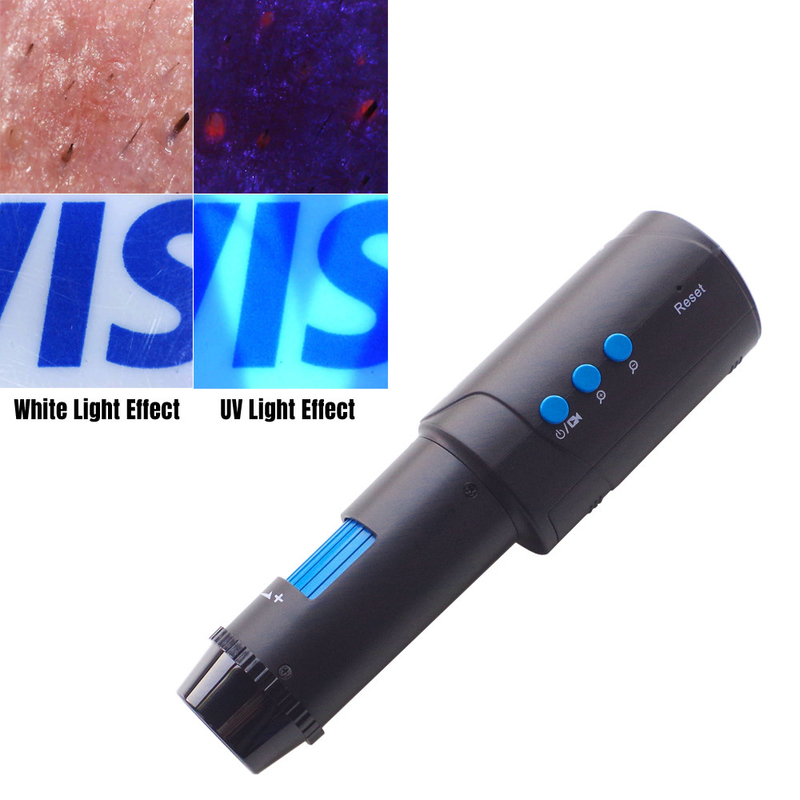

Digital Dermatoscopy HD 1080P with UV Light for Mole Inspection
Company Scope:
Digital Microscope/Digital Dermatoscope manufacturer.
PRODUCT ADVANTAGE
* DM023B UV Wireless Digital Microscope can be used in beauty salons, beauty chain agencies, cosmetics distribution sales, beauty products distribution sales, skin care products distribution sales, health products distribution sales, personal and family self-test and so on! Choosing a suitable cosmetic skin analyzer can improve the scientific basis of analysis, the quality of service and the efficiency of work, giving consumers a better experience.
Main Features
* With replaceable 18650 battery to get the longer service life for the UV microscope digital dermatoscope.
* With touch area on the microscope body to take the captures, which can avoid shaking by pressing and get the high quality captured images.
* Optional resolution from FHD(1920*1088), HD(1280*720) to VGA(864*480), are both available on mobile(Android and iOS stystem) and PC(Windows and MacOS system).
* Max. Frame is up to 25 fps at the highest resolution 2MP, that means you will get the smooth video even in the high resolution without any stuck and stop.
* WIRELESS MEANS MORE - 'Cut the cord' and use an UV digital microscope in clinics, machine shops, in the field, under the hood, or anywhere your work takes you.
SPECIFICATION
|
MODEL |
Model Name |
DM023B |
|
|
Connection |
WiFi to smart devices; USB 2.0 to PC |
|
OPTICS |
UV light |
Yes |
|
|
Magnification |
Real 10x~200x |
|
|
Lens type |
Optical glass |
|
|
Focus range |
Manual focus 0~110mm(with stand) |
|
|
Illumination |
8 adjustable LEDs(white + purple) |
|
SENSOR |
Sensor type |
CMOS |
|
|
Size |
2 megapixel |
|
|
Resolution |
1920*1080 |
|
|
Max.Fr |
25 fps at 2MP output |
|
FEATURES |
APP |
TopScope Pro for iOS/Android (customizable) |
|
|
Software |
DigiCapture Pro for Windows/MacOS (customizable) |
|
|
Measurement function(PC Software) |
Yes |
|
|
Supported operation systems |
iOS 12.0 or later Android 4.2 or later |
|
|
Supported operation systems |
Windows 7/8/10macOS 11.2.1 or above |
|
|
Capturing by microscope |
Yes with recording button on microscope |
|
|
Recording by microscope |
Yes with digital zoom button on microscope |
|
|
Certification |
CE/FCC/RoHS |
|
REPLACEABLE BATTERY |
18650 Lithium-Ion Battery |
2000mAh rechargeable and replaceable |
|
|
Battery working time |
Continue working for 2.5 hours |
|
|
Charging time |
2.5hrs (when WiFi Digital Microscope power off) |
|
PHYSICAL |
Body dimensions |
16.6*4.5*4.0cm |
|
|
Gross weight |
0.2kg |
|
|
Stand |
me |
APPLICATION
Medical & Dermatology Usage especially in: Mole, Mole Examination, Blue Nevus, Freckles, Clogged Skin Pores, Hair Folicles, Hair Shaft etc.,
FAQ
Q: Do you offer custom solution?
Toproview: Yes, we can offer custom solution if standard products couldn't meet buyer' requirements. OEM&ODM order are welcome.
Q:Why choose Toproview microscopes?
Toproview: Developed for professionals yet economical for consumer or casual use
