Shenzhen Toproview Technology Co., Ltd

5 Mega Pixel 250x Zoom Camera FCC High Resolution Sensor Sensor Digital Microscope

Product Details:
Place of Origin: China
Brand Name: Neutral/Customization
Certification: CE/FCC/RoHS
Model Number: DM022C
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Neutral/Customization Giftbox/16pcs per carton
Delivery Time: 5~35 working days
Payment Terms: L/C, T/T, Western Union, D/A, D/P
Supply Ability: 50000pcs/month
  • Detail Information
  • Product Description

Detail Information

Polarizer: Yes Image Sensor: 1/3.2" CMOS Image Sensor
Sensor Resolution: 5M Pixels (2592*1944) Photo & Video Resolution: Optional 5MP/4MP/3MP/ 2MP/1.3MP
Max. Frame: 25fps@5MP Adjustable Magnification: 10x~250x
PC Software With Measurement: Yes Connection Type: USB 2.0 Interface
High Light:

ROHS 5mp 250x Zoom Camera microscope

,

250x Zoom Camera microscope FCC

,

FCC High Resolution Digital Microscope

Product Description

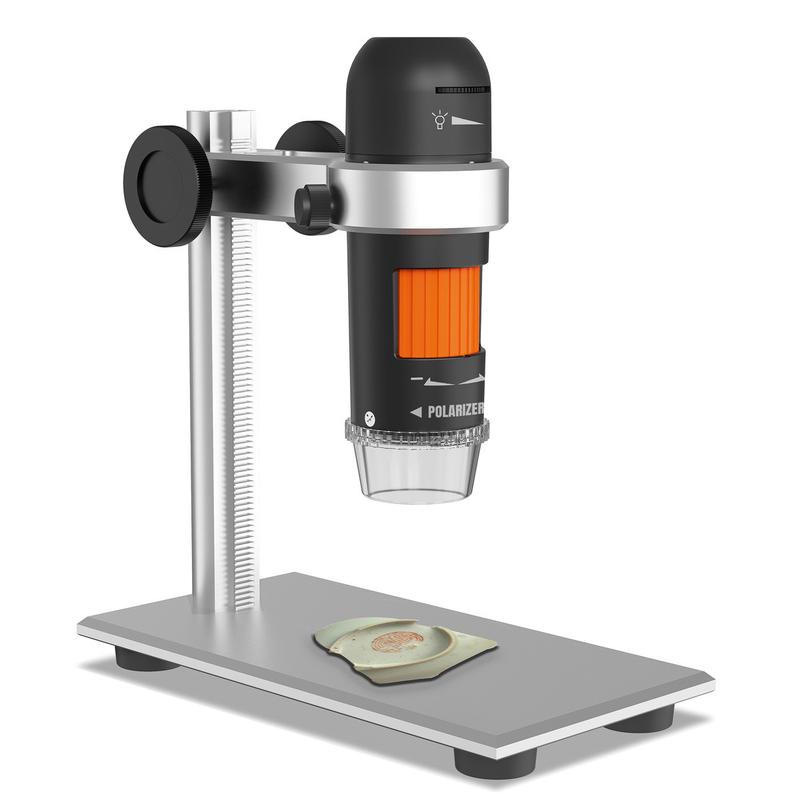

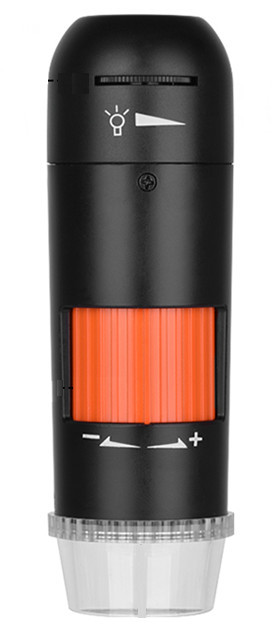

5 Mega Pixel High Resolution Digital Microscope with Computer Software

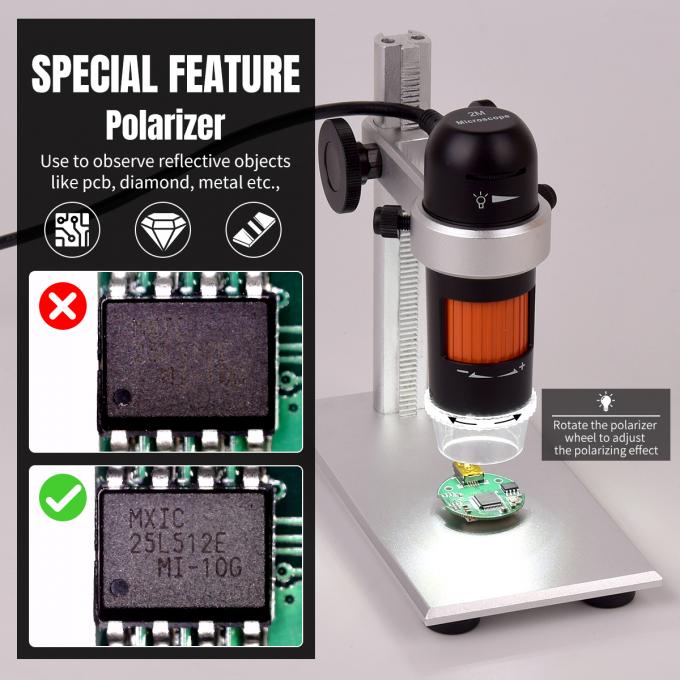

All of Toproview USB digital microscopes are built-in adjustable polarizer, allows to freely remove the unwanted reflection or glare from the object surface for a better contrast.



HIGH RESOLUTION DIGITAL MICROSCOPE DESCRIPTION

Main Features:

* With Polarizer scroll to anti reflective light.

* With Measurement function.

* With real high resolution definition 5MP sensor.



Its 5M image sensor presents vivid and sharp amazing image. 8 LEDs with brightness adjustable are good for any inspection enviornment.

With this unit you may see a unique & “bigger” world. All those excellent features make it a good aid for your daily inspection on tiny objects.

Empowered with USB 2.0 interface, our usb type microscopes support connecting through USB to Windows or macOS computer to observe and analyse the captures&recordings or live images&video with our powerful user-friendly software "DigiCapture Pro" for advanced image processing.



* Photo and video resolution are optional from 5MP, 4MP, 3MP, 2MP, 1.3MP.

* Max frame rate is up to 25fps at 5MP output, user can get the super high quality and smooth viewing and recording.

* PC Software with 16 optional languages can reach most of the uses in the worldwide.

* Light source is the dimmable LED ring illuminator (8pcs SMT White LED).



HIGH RESOLUTION DIGITAL MICROSCOPE SPECIFICATIONS



MODEL

Model Name

DM022C



Connection

USB 2.0

OPTICS

Polarizer

Yes



Magnification

Real 10x~250x(based on 21 inch Display)



Lens type

Optical glass



Focus range

Manual focus 0~110mm



Illumination

8 adjustable white LED

SENSOR

Sensor type

CMOS



Size

5 megapixel



Resolution

2590*1944



Frame rate

25 fps at 5MP output;
35 fps at 2MP output

FEATURES

Software

DigiCapture Pro for
Windows/MacOS



Measurement function

Yes



Certification

CE/FCC/RoHS

PHYSICAL

Dimensions

18*34*30cm



Gross weight

0.2kg



Stand

Comes with metal stand





HIGH RESOLUTION DIGITAL MICROSCOPE APPLICATIONS

• Industrial and Electronic Inspection

• Education | Forensics

• Textile Inspection | Print Inspection

• Collectibles | Jewelry & Watch Repair



5 Mega Pixel 250x Zoom Camera FCC High Resolution Sensor Sensor Digital Microscope 0

5 Mega Pixel 250x Zoom Camera FCC High Resolution Sensor Sensor Digital Microscope 15 Mega Pixel 250x Zoom Camera FCC High Resolution Sensor Sensor Digital Microscope 2

          Coin inspection after polarization adjusting                                                            Coin inspection after polarization adjusting



HIGH RESOLUTION DIGITAL MICROSCOPE Packing ways:

Neutral product with colorful giftbox, 16pcs per carton.

According to export standard packing.

Packing way with customization availble.



Accessories for neutral products:

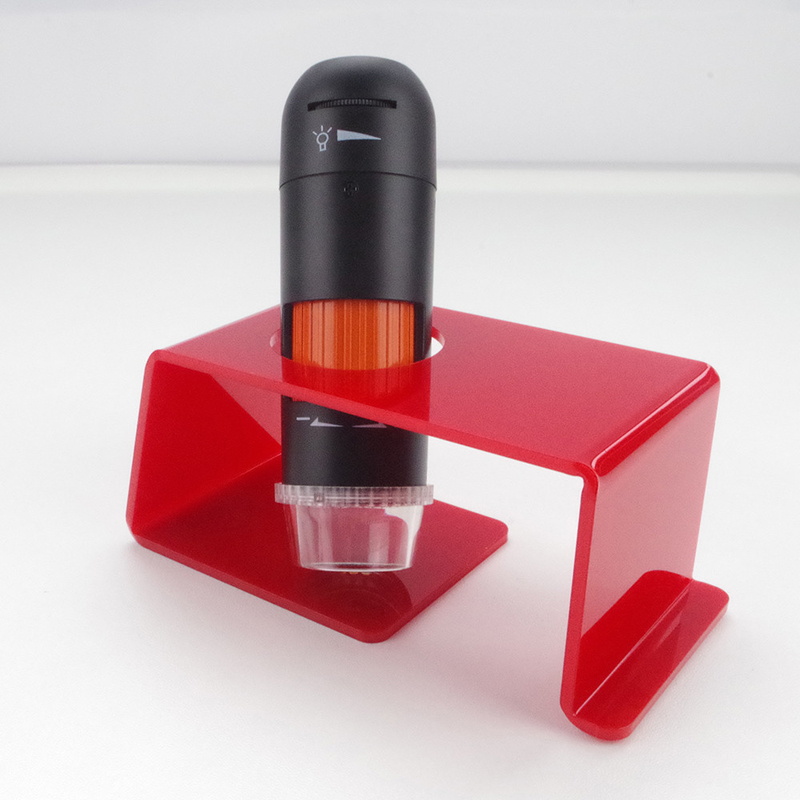

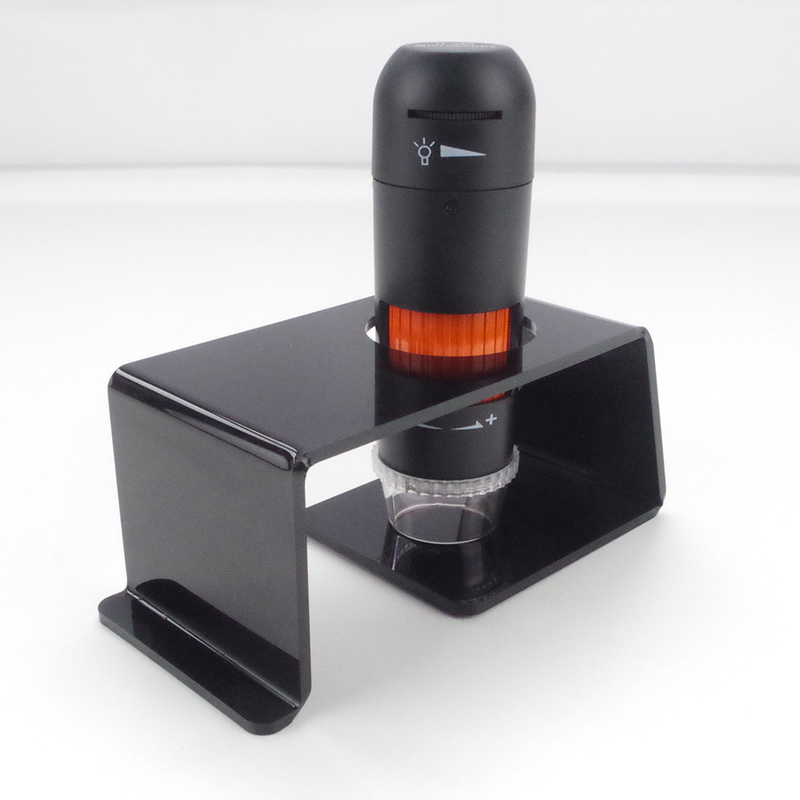

USB cable,CD,calibration ruler,metal or acrylic stand



OEM&ODM Service

OEM/ODM service: Our digital microscope products OEM and ODM service is always ready!

If you want to show your own brand LOGO on the product microscope, product package or software icon, it’s available. Come to us for more details right now!

Just give us an idea, and we will do the rest for you. All are based on exclusivity term!
