HD 2MP Gem Lcd Digital Microscope With Screen 4.3 Inch 150x

Product Details:
Place of Origin: China
Brand Name: Toproview/Neutral/Customization
Certification: CE/FCC/RoHS
Model Number: DM041
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Neutral/Customization Giftbox/16pcs per carton
Delivery Time: 5~35 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 50000pcs/month
  • Detail Information
  • Product Description

Detail Information

Model: DM041 LCD Microscope Polarizer: Yes
Theory: Gem Microscope Application: GEM And Diamond,Gemology
Illumination: LED Illumination Warranty: 12month
High Light:

2MP Gem Lcd Digital Microscope FCC

,

150x Lcd Digital Microscope

,

FCC Digital Microscope With Screen 4.3 Inch

Product Description

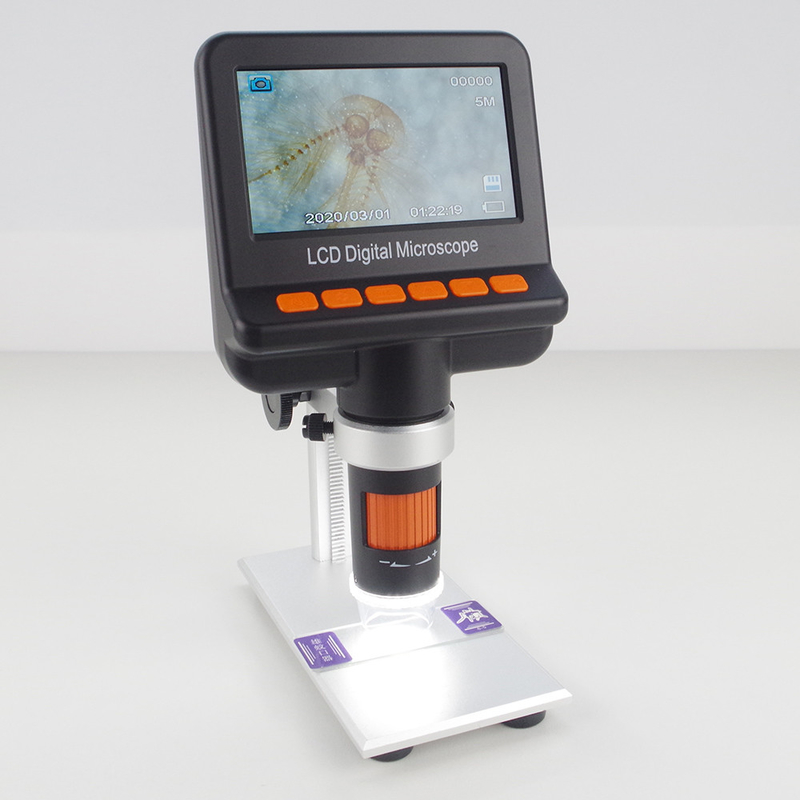

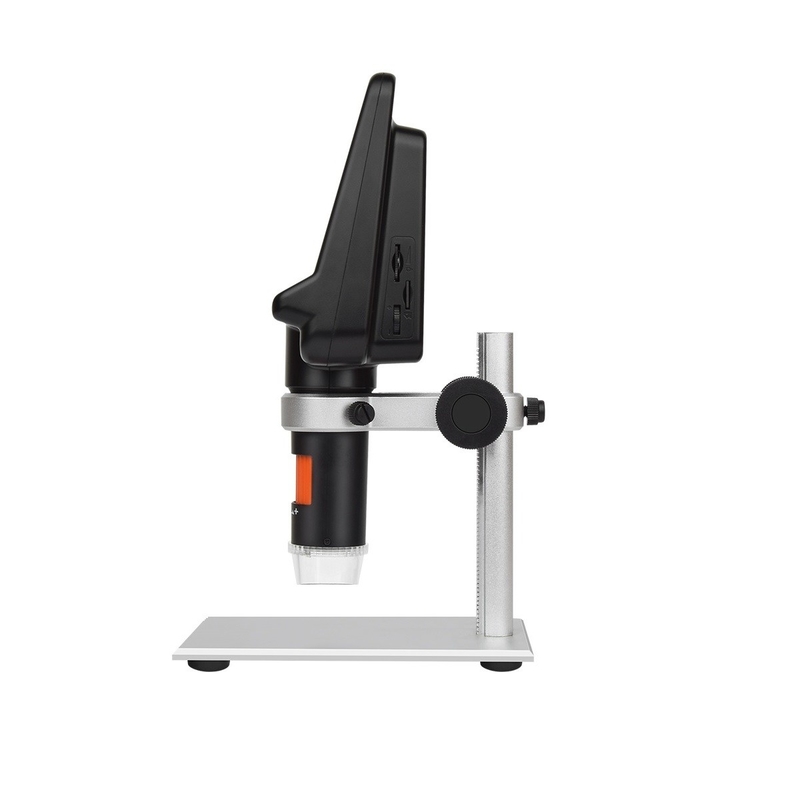

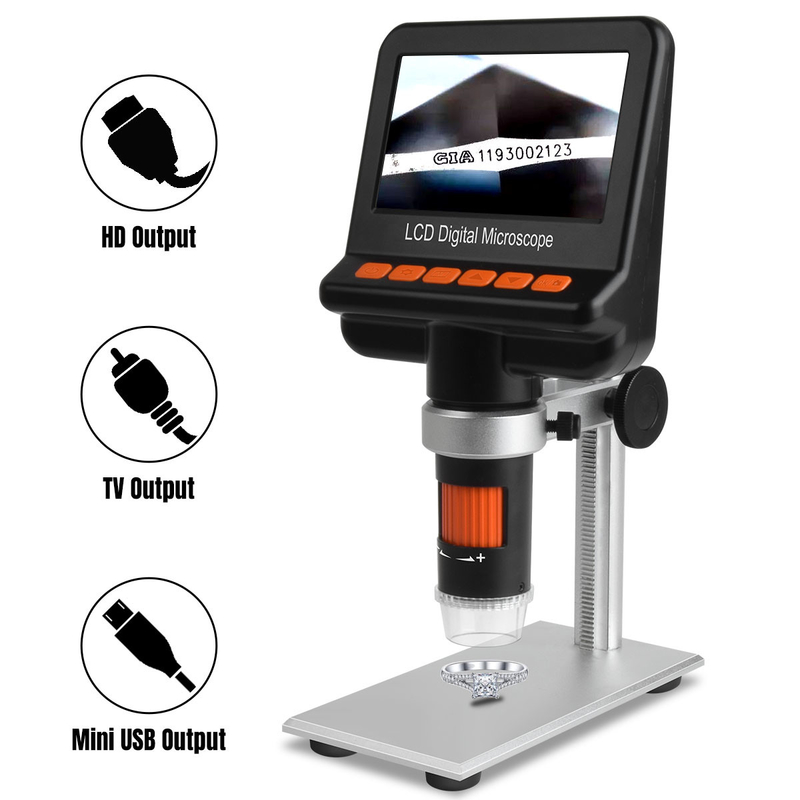

HD 2MP Digital LCD Gem Microscope with 4.3 inch Screen Monitor 150x Magnification


PRODUCT DESCRIPTION

Quick Details

DM041 is the polarizer type LCD digital microscopes, the built-in adjustable polarizer allows to freely remove the unwanted reflection or glare from the object surface for a better contrast. It supports to see the live viewing, capture, recording by the device itself; also supports to connect to Windows, Mac computer or laptop through USB cable, the attached PC software is with powerful functions like measurement, capture, recording video, and support 4 screens/devices working together in the same interface, which makes it easy to compare the objects.


PRODUCT ADVANTAGE

New technology for digital microscope - Polarizer.

An innovative technology for the digital microscope called Polarizer was developed by our R&D team after the long time research and development, and this technology was used to all of our digital microscopes models. This new technology is creatively using the integrated polariscope knob to adjust the light intensity from the digital microscope and external environment, and attempt to reflect, reduce, filtrate the light and make it easy to observe the reflective objects. Like SMD board, diamond, crystal, porcelain, polishing metal etc., will be easy to observed with the help of this function.



LCD DIGITAL MICROSCOPE SPECIFICATIONS

MODEL

Model Name

DM041



Connection

USB 2.0 to PC

OPTICS

Polarizer

Yes



Magnification

Real 10x~150x(based on 21 inch Display)



Lens type

Optical glass



Focus range

Manual focus 0~110mm



Illumination

8 adjustable white LED

SENSOR

Sensor type

CMOS



Size

2 megapixel



Resolution

1920*1080



Frame rate

25 fps at 2MP output

FEATURES

Software

DigiCapture Pro for
Windows/MacOS



Measurement function

Yes



Certification

CE/FCC/RoHS

PHYSICAL

Dimensions

18*34*30cm



Gross weight

0.2kg



Stand

Comes with metal stand

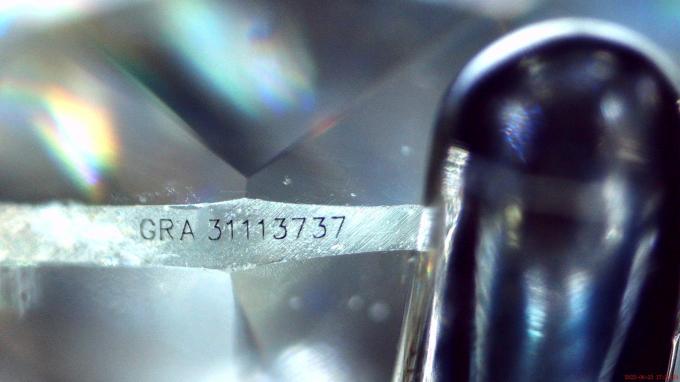

 After adjusting polarizer
HD 2MP Gem Lcd Digital Microscope With Screen 4.3 Inch 150x 0

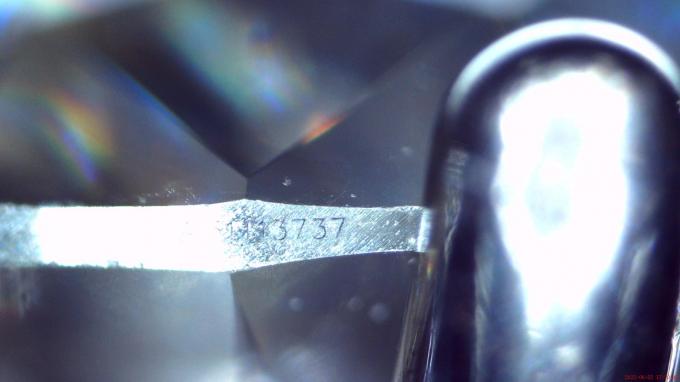

Before adjusting polarizer

HD 2MP Gem Lcd Digital Microscope With Screen 4.3 Inch 150x 1

Packing ways
Neutral product with colorful gift box, 16pcs per carton.
According to export standard packing.
Packing way with customization available.
