Product Details:
|
|
| Place of Origin: | Shenzhen , China |
|---|---|
| Brand Name: | Neutral / Customization |
| Certification: | CE / FCC / RoHS |
| Model Number: | DM023A |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | Negotiation |
| Price: | Negotiation |
| Packaging Details: | Neutral / Customization Giftbox / 20pcs per carton |
| Delivery Time: | 6~36 working days |
| Payment Terms: | L/C, T/T, Western Union, D/A, D/P |
| Supply Ability: | 60000pcs/month |
|
Detail Information |
|||
| Model Name: | DM023A | Switchable Polarizer: | Yes |
|---|---|---|---|
| Image Sensor: | 2 Megapixel CMOS | Resolution: | 1920*1088 / 1280*720 / 864*480 |
| Max.Frame Rate: | 30 Fps At 2MP Output | Lens Type: | Optical Glass |
| High Light: | 2MP Microscope Camera For Android FCC,Toproview Microscope Camera For Android 200X,200X USB Jewelry Microscope Handheld FCC |
||
Product Description
2MP 200X WiFi Wireless USB Jewelry Microscope Handheld Adjustable LED with Stand For Smartphone Mobile Phone
1: Portable wireless WIFI 200X zoom magnification microscope, small and lightweight, durable.
2: Universal compatibility, WiFi connection to mobile phones and tablets, wired connection for Android , iOS and computer.
Product Specification:
| Model | Model Name | DM023A |
| Features | Connection | WiFi to Smart Devices / USB 2.0 to PC |
| Image Sensor | 2 Megapixel CMOS | |
| Photo And Video Resolution | 1920*1088 / 1280*720 / 864*480 | |
| Magnification Ratio | Real 10x~200x(Based On 24 inch Display) | |
| Max.Frame Rate | 25 fps at 2MP Output | |
| Light Source | 8Pcs SMT White LED | |
| LED Brightness Adjustable | Yes | |
| Focus Range | From 0mm to 110mm | |
| Lens Type | Optical Glass | |
| Brand Name | Toproview / Neutral / Customization | |
| Customized Support | OEM / ODM / OBM | |
| Certification | CE / FCC / RoHS | |

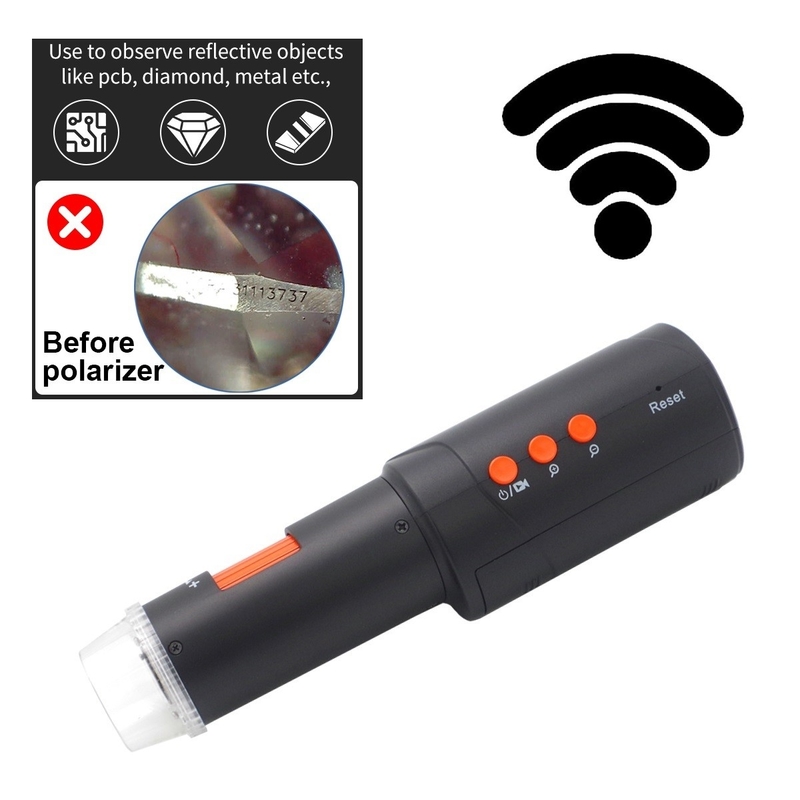

| Advantage | Switchable Polarizer | Yes |
| Capture Microtouch On Microscope | Yes | |
| Recording Button On Microscope | Yes | |
| Digital Zoom Button On Microscope | Yes | |
| Rechargeable And Replaceable Battery | 2000mAh 18650 Lithium-Ion | |
| Battery Working Time | Continue working for 2.5 hours | |
| Charging Time | 2.5hrs (When WiFi Digital Microscope Power Off) | |
| SD Card Slot | Support SD Card Storage Up To 32G (Not Included In The Neutral Package) | |
| Warranty | 1 Year | |

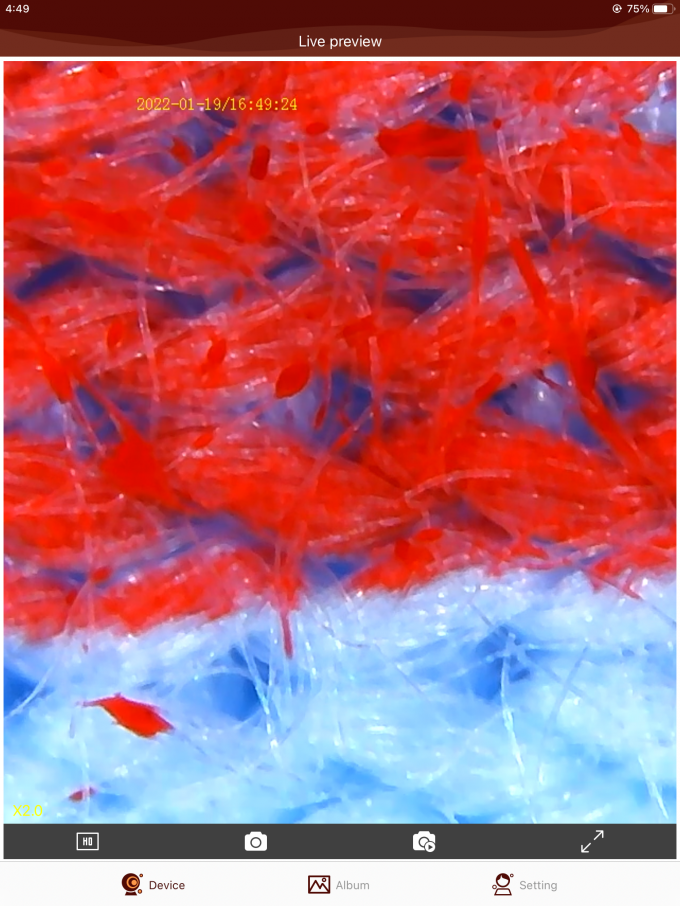

| Software | APP for Smart Devices | Topscope Pro (Customizable) |
| APP Supported Operation Systems | iOS 12.0 or later, Android 4.2 or later | |
| APP Supported Photo And Video Recording | Yes | |
| APP Supported Battery Capacity Display | Yes | |
| PC Software | DigiCapture Pro (Customizable) | |
| PC Software Supported Operation Systems | Windows 7/8/10 , macOS 11.2.1 or above | |
| PC Software OSD Language | There Are 16 Languages Built In The Software | |
| PC Software With Professional Measurement | Yes | |
| PC Software Support Four Display Concurrently | Yes | |
| PC Software Support Photo,Video Recording,Timed Photo And Timed Video | Yes | |
| PC Software Support Plug and Play | Yes | |
| Package details | Accessories | CD, USB cable,replaceable battery,calibration ruler,metal stand,Quick Start Guide |
| Body Dimension | 16.6*4.5*4.0cm | |
| Gross Weight | 0.2KG | |
| Gift Box | 26*18*8cm | |
| Gross Weight | 0.65KG | |
| Carton Box | 54.2*37*42cm | |
| Gross Weight | 14.5KG | |
| Carton | 20Pcs |
Product Advantages:

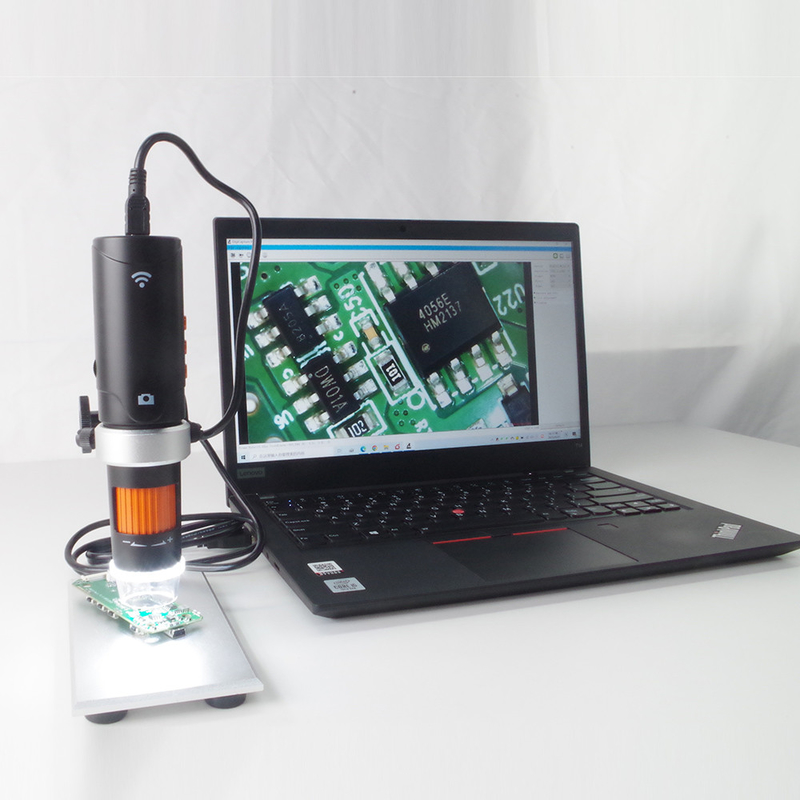

1: As a tool, it's very functional. For engineer, use it in PCB checking, soldering, DIY. For collector, use it in coin stamp collection. For other people, use it in jewelry repair and jeweler’s mark identification; watch inspection:inspect watch parts for damage etc.
2: Digital zoom microscope with WiFi system perfect for skin hair, industrial inspection (PCB, material) education purpose, print industrial. Excellent for textile industrial, biological inspection, jewelry&stamp (collections) inspection.

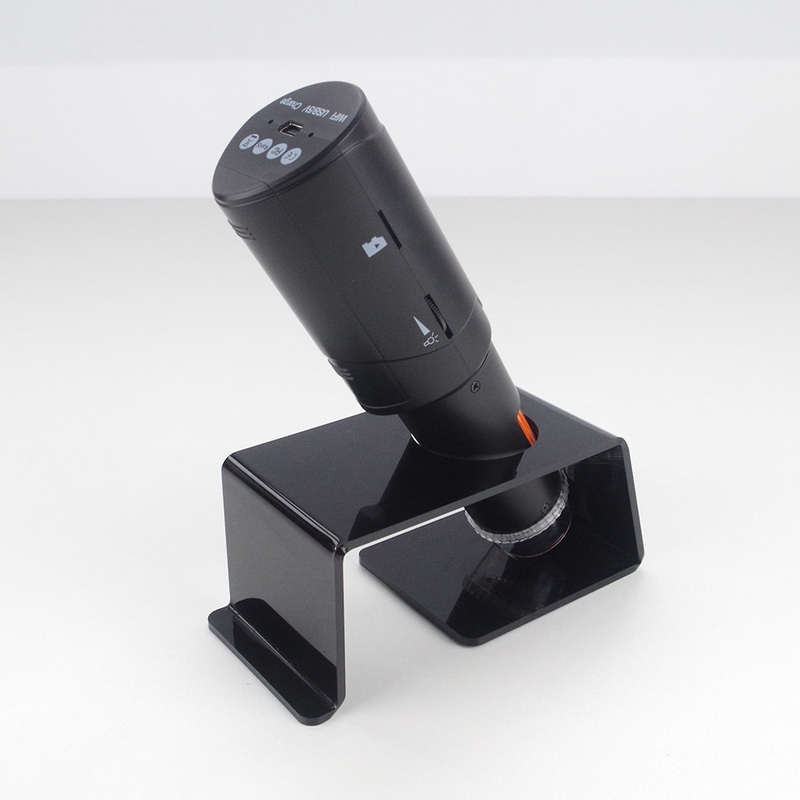

Product picture:
