Gemological Microscope Digital Lcd 110mm Usb Microscope With Screen

Product Details:
Place of Origin: China
Brand Name: Toproview/Neutral/Customization
Certification: CE/FCC/RoHS
Model Number: DM042
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: 68~80
Packaging Details: Neutral/Customization Giftbox/16pcs per carton
Delivery Time: 5~35 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 50000pcs/month
  • Detail Information
  • Product Description

Detail Information

Screen Size: 4.3 Inch Polarizer: Yes
Sensor Resolution: 5M Pixels (2592*1944) Magnification: 10x~250x
Theory: Gem Microscope,Video Microscope Working Distance: 110mm
Power Supply: Rechargeable Lithium Battery
High Light:

Gemological Microscope Digital Lcd

,

Microscope Digital Lcd 110mm

,

110mm Usb Microscope With Screen

Product Description



4.3'' Screen Polarizing Gemological Digital Microscope for Diamend Inspection Anti Reflect



PRODUCT DESCRIPTION

Main Features

* High magnification: real 250x and up to 1200x by digital zoom.

* High resolution: real 5MP resolution sensor, and up to 12MP resolution by digital zoom.

* Polarizer build in: allows to reduce reflection, very usefual for observing objects with shiny surface like diamond, jewelry, metal etc.,

* Features HDMI output enabling the microscope to be connected with external monitors, giving user the unexpected experience of viewing and photographing.



PRODUCT ADVANTAGE

High quality sensor

With a high-quality sensor, model DM042 HDMI output polarizing LCD digital microscope has max 4032x3024 (12M 4032*3024) photo resolution which will provide clear and high-quality images. Moreover, the magnification can reach up to real 250X without interpolation and allows users to view the smallest solder joints on the display or on the external monitor connected with the microscope.



LCD DIGITAL MICROSCOPE SPECIFICATIONS

MODEL

Model Name

DM042



Connection

USB 2.0 to PC/HDMI port to monitor/TV port to monitor

OPTICS

Polarizer

Yes



Magnification

Real 10x~250x(based on 21 inch Display)



Lens type

Optical glass



Focus range

Manual focus 0~110mm



Illumination

8 adjustable white LED

SENSOR

Sensor type

CMOS



Size

5 megapixel



Resolution

2590*1944



Frame rate

25 fps at 5MP output;
35 fps at 2MP output

FEATURES

Software

DigiCapture Pro for
Windows/MacOS



Measurement function

Yes



Certification

CE/FCC/RoHS

PHYSICAL

Dimensions

18*34*30cm



Gross weight

0.2kg

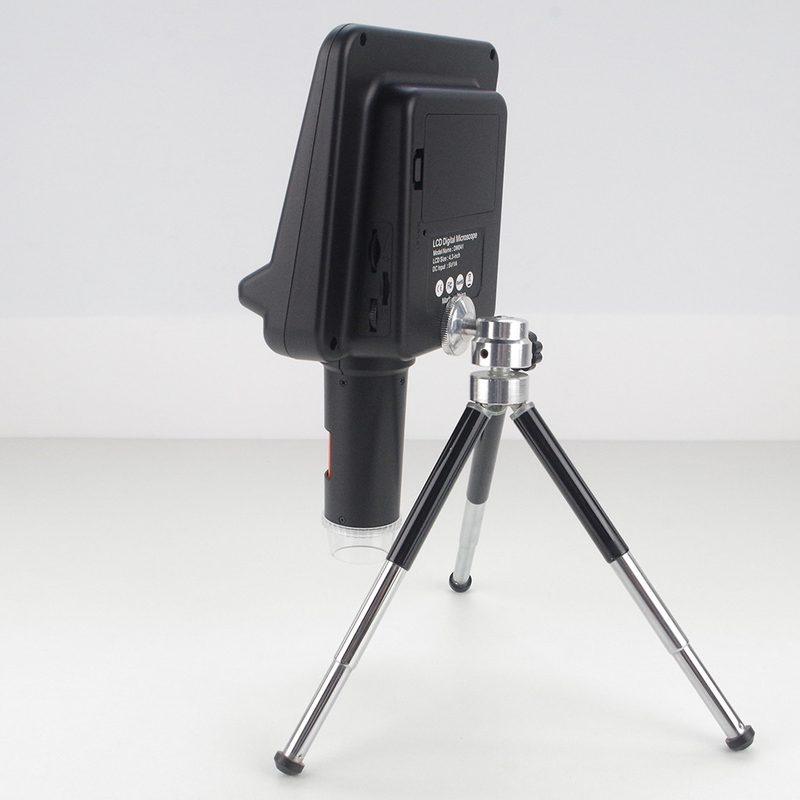

Stand

Comes with metal stand



Gemological Microscope Digital Lcd 110mm Usb Microscope With Screen 0

Packing ways

Neutral product with colorful gift box, 16pcs per carton.

According to export standard packing.

Packing way with customization available.
