8PCS White LED Coin Usb Microscope For Soldering Polarizing Adjustable

8PCS White LED Coin Usb Microscope For Soldering Polarizing Adjustable

8PCS White LED Coin Usb Microscope

Polarizing Coin Usb Microscope

Usb Microscope For Soldering Polarizing

Place of Origin:

China

Brand Name:

Toproview/Neutral/Customization

Certification:

CE/FCC/RoHS

Model Number:

DM042

Contact Us

Request A Quote
Product Details
Model Name:
DM042
Screen Size:
4.3'' Monitor
Connection Type:
USB 2.0/TV Port/HDMI Port
Image Sensor::
1/2.8" CMOS Image Sensor
Magnification:
Real 250x
Sensor Resolution:
Real 5MP
Payment & Shipping Terms
Minimum Order Quantity
Negotiation
Price
Negotiation
Packaging Details
Neutral/Customization Giftbox/16pcs per carton
Delivery Time
5~35 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union
Supply Ability
50000pcs/month
Product Description


8PCS White LED Build- in USB LCD Digital Microscope Camera Polarizing Adjustable


PRODUCT DESCRIPTION

Quick Details

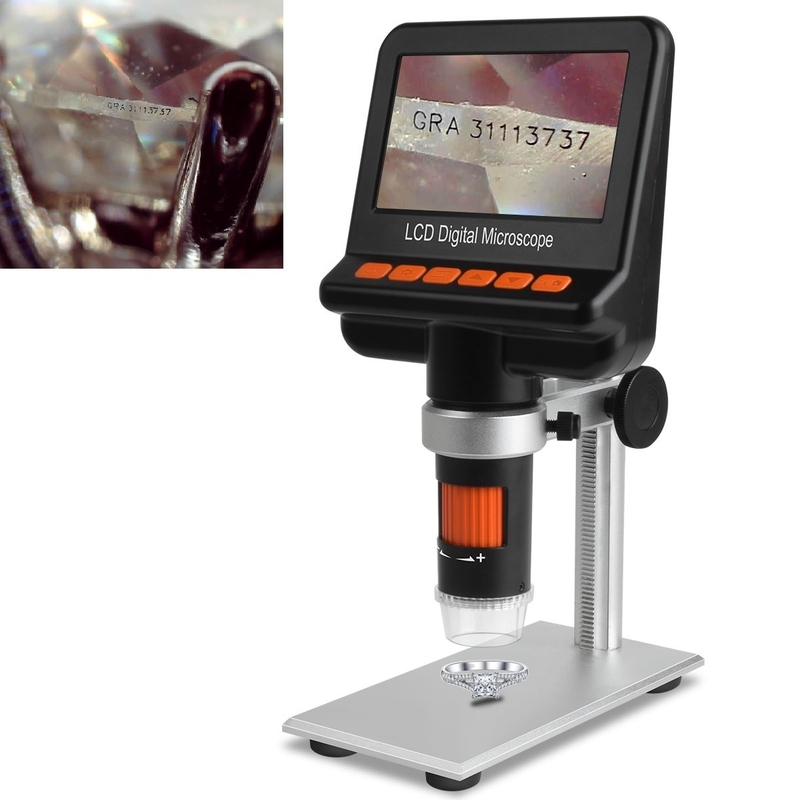

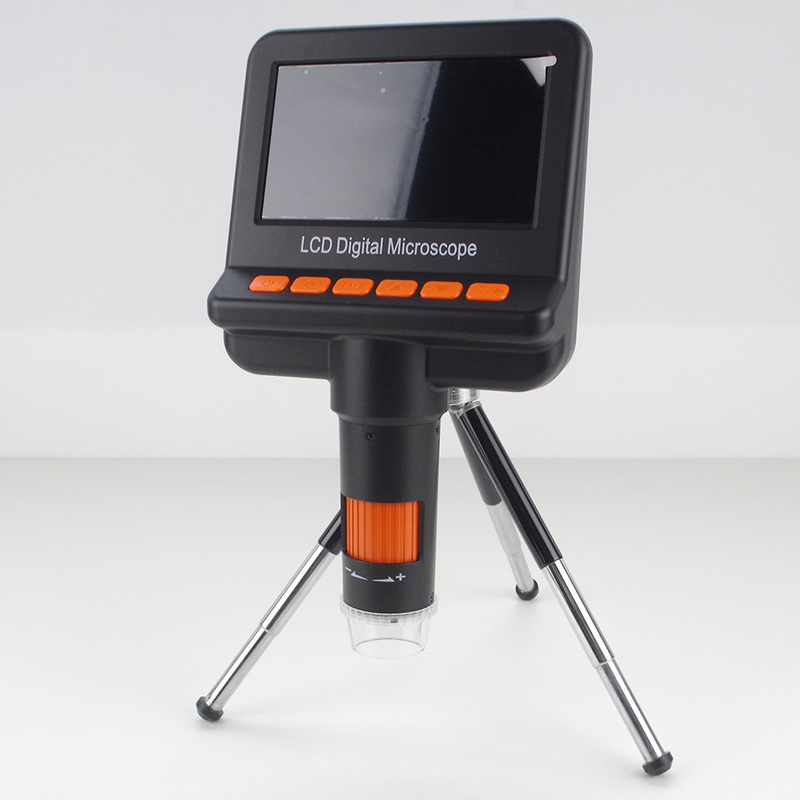

Equipped with 5 mega pixels HD sensor and industrial lens, Toproview DM042 3D HDMI Digital Microscope features 4.3 inch screen, enabling users to view parts and components of the PCB clearly so as to improve the precision and efficiency of their soldering and repair work.

With multifunctional connection type: supports output through USB port to PC; HDMI port to HD monitor; TV port to monitor. Also allow to work with the LCD screen directly, can take photo, video and playback etc., without any connection.


PRODUCT ADVANTAGE

New technology for digital microscope - Polarizer.

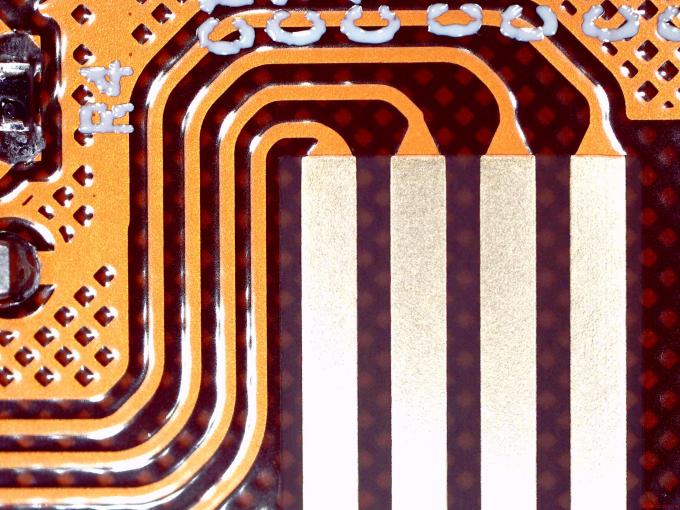

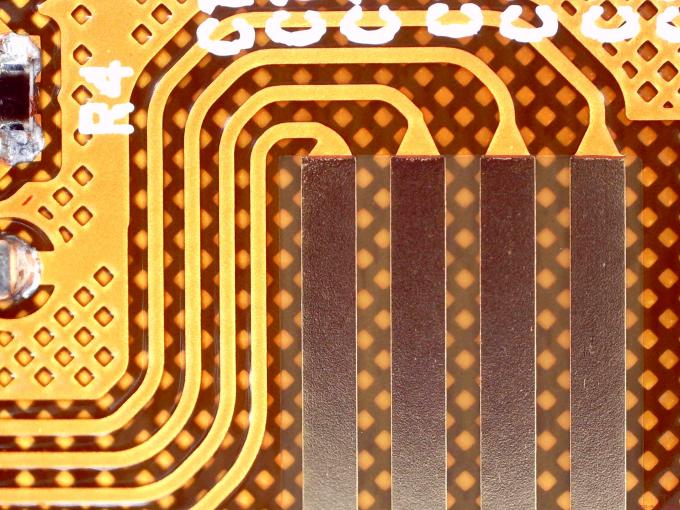

An innovative technology for the digital microscope called Polarizer was developed by our R&D team after the long time research and development, and this technology was used to all of our digital microscopes models. This new technology is creatively using the integrated polariscope knob to adjust the light intensity from the digital microscope and external environment, and attempt to reflect, reduce, filtrate the light and make it easy to observe the reflective objects. Like SMD board, diamond, crystal, porcelain, polishing metal etc., will be easy to observed with the help of this function.

LCD DIGITAL MICROSCOPE SPECIFICATIONS

MODEL

Model Name

DM042



Connection

USB 2.0 to PC/HDMI port to monitor/TV port to monitor

OPTICS

Polarizer

Yes



Magnification

Real 10x~250x(based on 21 inch Display)



Lens type

Optical glass



Focus range

Manual focus 0~110mm



Illumination

8 adjustable white LED

SENSOR

Sensor type

CMOS



Size

5 megapixel



Resolution

2590*1944



Frame rate

25 fps at 5MP output;
35 fps at 2MP output

FEATURES

Software

DigiCapture Pro for
Windows/MacOS



Measurement function

Yes



Certification

CE/FCC/RoHS

PHYSICAL

Dimensions

18*34*30cm



Gross weight

0.2kg



Stand

Comes with metal stand

 8PCS White LED Coin Usb Microscope For Soldering Polarizing Adjustable 0

8PCS White LED Coin Usb Microscope For Soldering Polarizing Adjustable 1
OEM&ODM Service

If you want to show your own brand LOGO on the product microscope, product package or software icon, it’s available. Come to us for more details right now!

OEM/ODM service: Our digital microscope products OEM and ODM service is always ready!
