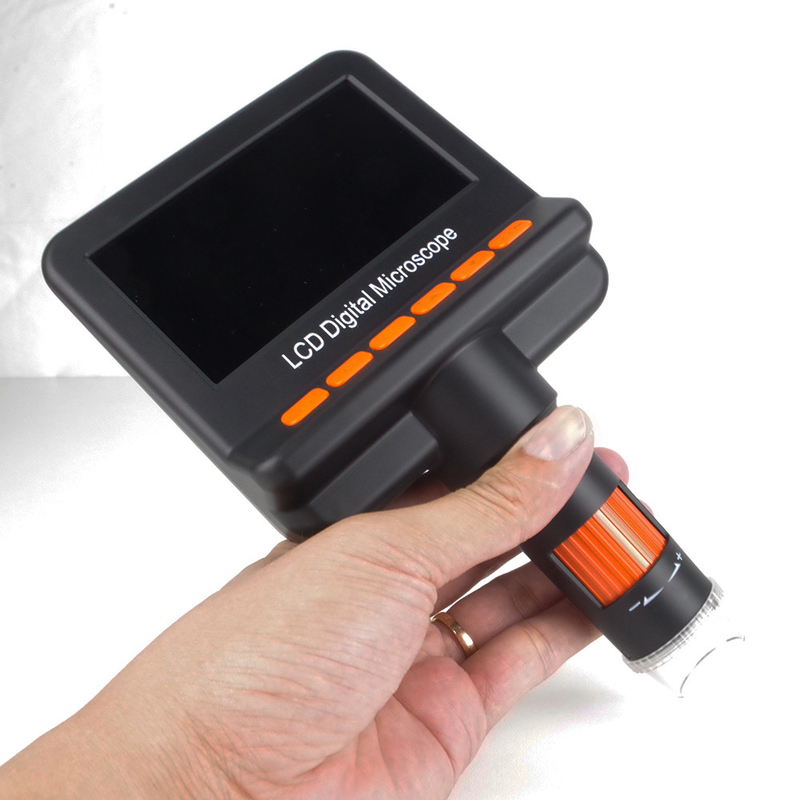

12MP High Resolution Polarizing USB LCD Digital Microscope for Kid Chirldren Education
PRODUCT DESCRIPTION
Main Features
* High magnification: real 250x and up to 1200x by digital zoom.
* High resolution: real 5MP resolution sensor, and up to 12MP resolution by digital zoom.
* Features HDMI output enabling the microscope to be connected with external monitors, giving user the unexpected experience of viewing and photographing.
Quick Details
Equipped with 5 mega pixels HD sensor, real 10x~250x magnification, build in polarization switch, Toproview DM042 HDMI micro soldering microscope does the great job in this field and market.
To look over current market, a micro soldering microscope is an essential tool for SMD soldering, PCB inspection, and other types of electronics work and repairs. The best electronics microscope for soldering should have an extended working distance, magnification from 10x-250x, and the ability to attach a camera to record videos and capture images. And model DM042 could meet all of the requirements.
LCD DIGITAL MICROSCOPE SPECIFICATIONS
|
MODEL |
Model Name |
DM042 |
|
|
Connection |
USB 2.0 to PC/HDMI port to monitor/TV port to monitor |
|
OPTICS |
Polarizer |
Yes |
|
|
Magnification |
Real 10x~250x(ba |
|
|
Lens type |
Optical glass |
|
|
Focus range |
Manual focus 0~110mm |
|
|
Illumination |
8 adjustable white LED |
|
SENSOR |
Sensor type |
CMOS |
|
|
Size |
5 megapixel |
|
|
Resolution |
2590*1944 |
|
|
Fr |
25 fps at 5MP output; |
|
FEATURES |
Software |
DigiCapture Pro for |
|
|
Measurement function |
Yes |
|
|
Certification |
CE/FCC/RoHS |
|
PHYSICAL |

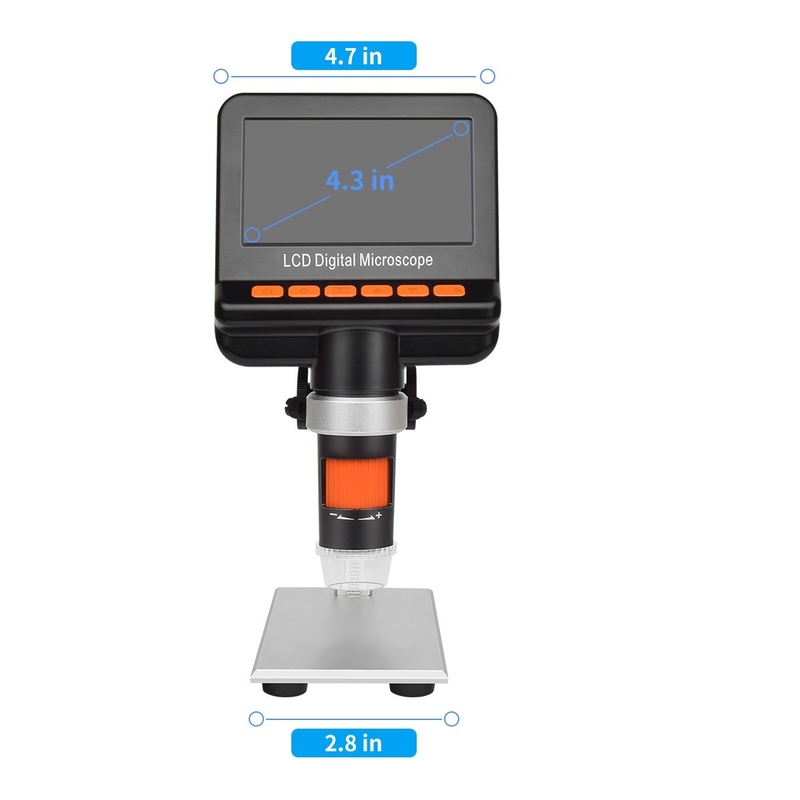

Dimensions |
18*34*30cm |
|
|
Gross weight |
0.2kg |
|
|
Stand |
Comes with me |
High quality sensor
With a high-quality sensor, model DM042 HDMI output polarizing LCD digital microscope has max 4032x3024 (12M 4032*3024) photo resolution which will provide clear and high-quality images. Moreover, the magnification can reach up to real 250X without interpolation and allows users to view the smallest solder joints on the display or on the external monitor connected with the microscope.
