Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | Toproview/Neutral/Customization |
| Certification: | CE/FCC/RoHS |
| Model Number: | DM042 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | Negotiation |
| Price: | Negotiation |
| Packaging Details: | Neutral/Customization Giftbox/16pcs per carton |
| Delivery Time: | 5~35 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 50000pcs/month |
|
Detail Information |
|||
| Model: | DM042 4.3'' LCD Digital Microscope | Screen Size: | 4.3 Inch |
|---|---|---|---|
| Connection Type: | USB 2.0/TV Port/HDMI Port | Image Sensor:: | 1/2.8" CMOS Image Sensor |
| Magnification: | Real 250x | Resolution: | Real 5MP |
| Theory: | Video Microscope,LCD Microscope | Light Source: | Led Adjustable Brightness |
| High Light: | Digital Microscope For Coins Polarizer 1200x,12MP LCD Digital Microscope FCC,FCC 1200x usb coin scope |
||
Product Description
HDMI 12MP Polarizing LCD USB Digital Microscope Camera 1200x for Kids Adults
PRODUCT DESCRIPTION
Main Features
* High magnification: real 250x and up to 1200x by digital zoom.
* High resolution: real 5MP resolution sensor, and up to 12MP resolution by digital zoom.
* Multifunctional connection type: supports output through USB port to PC; HDMI port to HD monitor; TV port to monitor. Also allow to work with the LCD screen directly, can take photo, video and playback etc., without any connection.
Quick Details

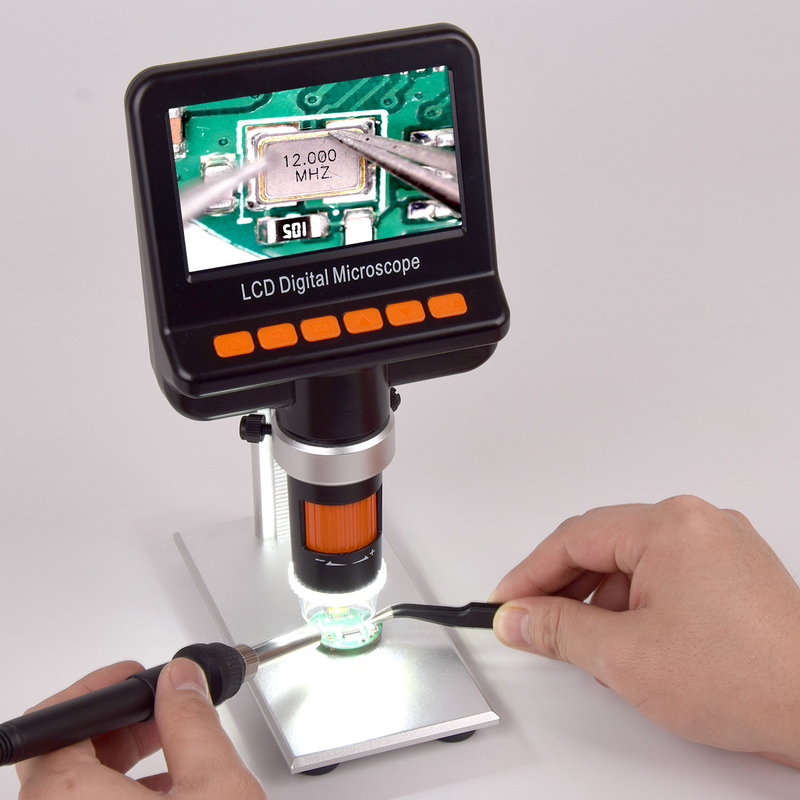

Equipped with 5 mega pixels HD sensor, real 10x~250x magnification, build in polarization switch, Toproview DM042 HDMI micro soldering microscope does the great job in this field and market.
To look over current market, a micro soldering microscope is an essential tool for SMD soldering, PCB inspection, and other types of electronics work and repairs. The best electronics microscope for soldering should have an extended working distance, magnification from 10x-250x, and the ability to attach a camera to record videos and capture images. And model DM042 could meet all of the requirements.
LCD DIGITAL MICROSCOPE SPECIFICATIONS
|
MODEL |
Model Name |
DM042 |
|
|
Connection |
USB 2.0 to PC/HDMI port to monitor/TV port to monitor |
|
OPTICS |
Polarizer |
Yes |
|
|
Magnification |
Real 10x~250x(ba |
|
|
Lens type |
Optical glass |
|
|
Focus range |
Manual focus 0~110mm |
|
|
Illumination |
8 adjustable white LED |
|
SENSOR |
Sensor type |
CMOS |
|
|
Size |
5 megapixel |
|
|
Resolution |
2590*1944 |
|
|
Fr |
25 fps at 5MP output; |
|
FEATURES |

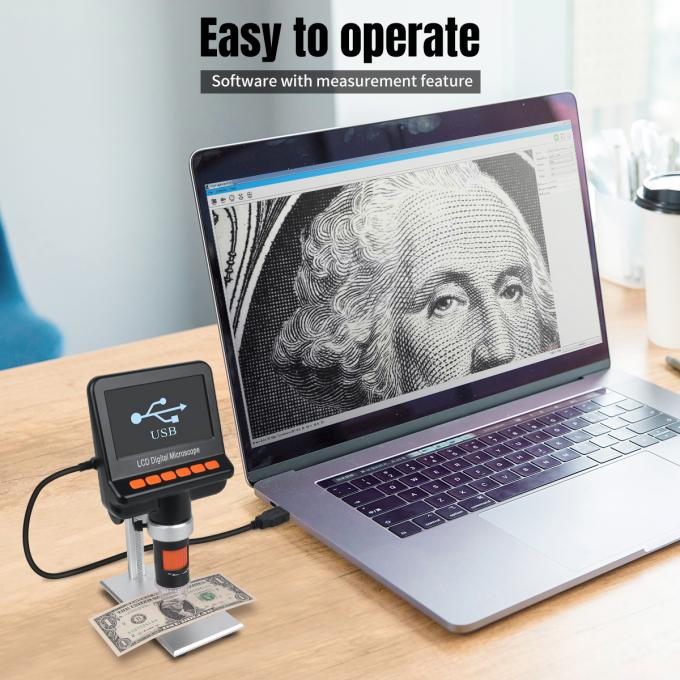

Software |
DigiCapture Pro for |
|
|
Measurement function |
Yes |
|
|
Certification |
CE/FCC/RoHS |
|
PHYSICAL |
Dimensions |
18*34*30cm |
|
|
Gross weight |
0.2kg |
|
|

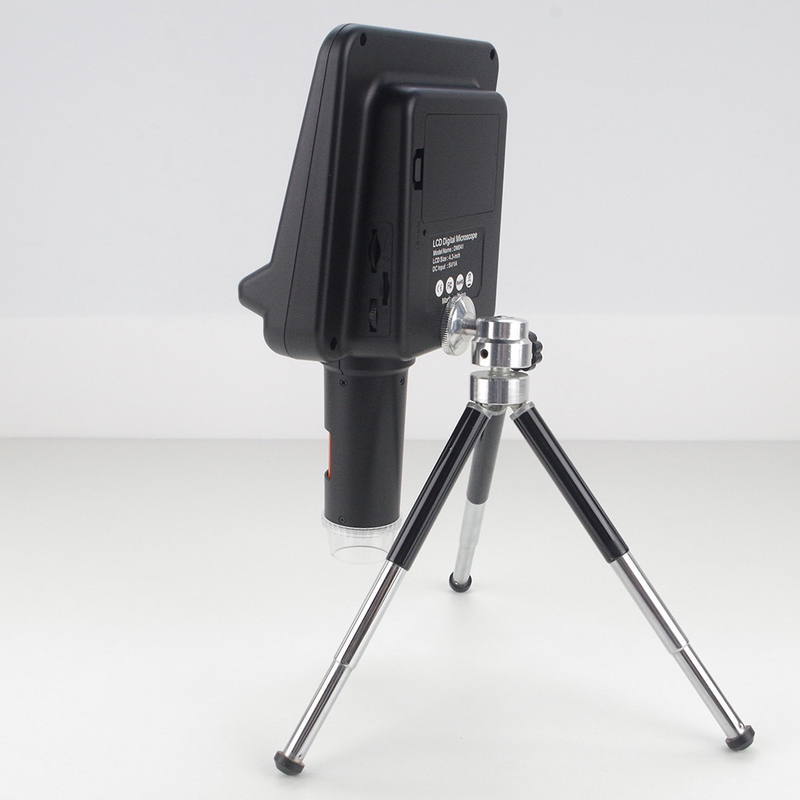

Stand |
Comes with me |
PRODUCT ADVANTAGE
New technology for digital microscope - Polarizer.
Polarized light microscopes can create different polarization configurations that depend on the relative orientation between polarizers: parallel polarization is for polarizers that are oriented parallel to each other, and cross polarization is the configuration for polarizers that are oriented perpendicular to each other. Depending on the polarization configuration and the interaction of incident light with the target, light will be transmitted or blocked. In this case, users can get the clear and without reflection light observation with this Toproview new technology LCD digital microscope.
