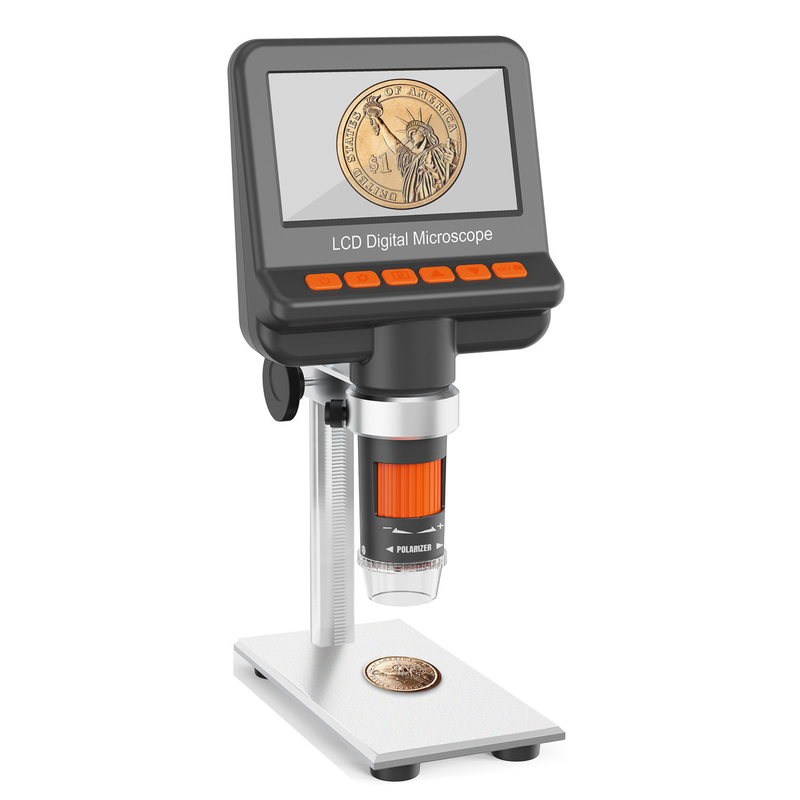

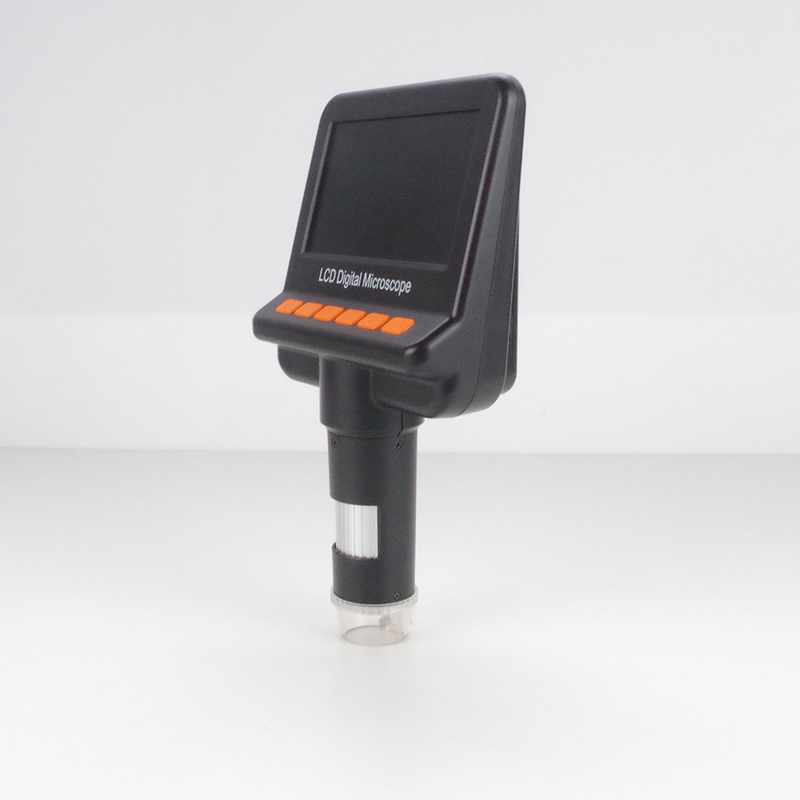

SMD Soldering Digital USB Coin Microscope With Screen Circuit Board Inspection

SMD Soldering Digital USB Coin Microscope With Screen Circuit Board Inspection

SMD Soldering Digital USB Coin Microscope

RoHS USB Coin Microscope

RoHS Coin Microscope With Screen Circuit Board

Place of Origin:

China

Brand Name:

Toproview/Neutral/Customization

Certification:

CE/FCC/RoHS

Model Number:

DM042

Contact Us

Request A Quote
Product Details
Model:
DM042 LCD Digital Microscope
Polarizer Built In:
Yes
Supported Operation Systems:
Windows; MacOS
Connection Type:
TV Port/HDMI Port /USB 2.0
Light Source:
Led Adjustable Brightness
Power Supply:
USB Port
Work Distance:
Manual Adjustment Of 0~110mm With Metal Stand
Payment & Shipping Terms
Minimum Order Quantity
Negotiation
Price
Negotiation
Packaging Details
Neutral/Customization Giftbox/16pcs per carton
Delivery Time
5~35 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union
Supply Ability
50000pcs/month
Product Description


Polarizing USB LCD Digital Microscope for Circuit Board Inspection SMD Soldering


PRODUCT DESCRIPTION

Main Features

* High magnification: real 250x and up to 1200x by digital zoom.

* High resolution: real 5MP resolution sensor, and up to 12MP resolution by digital zoom.

* Features HDMI output enabling the microscope to be connected with external monitors, giving user the unexpected experience of viewing and photographing.



Quick Details

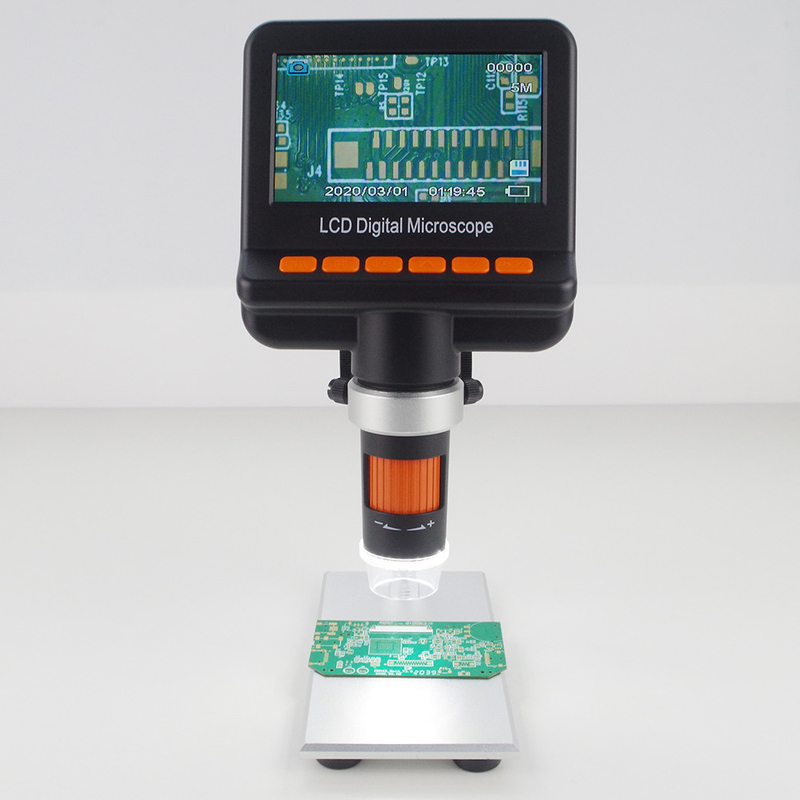

Equipped with 5 mega pixels HD sensor and industrial lens, Toproview DM042 3D HDMI Digital Microscope features 4.3 inch screen, enabling users to view parts and components of the PCB clearly so as to improve the precision and efficiency of their soldering and repair work.

With multifunctional connection type: supports output through USB port to PC; HDMI port to HD monitor; TV port to monitor. Also allow to work with the LCD screen directly, can take photo, video and playback etc., without any connection.

LCD DIGITAL MICROSCOPE SPECIFICATIONS

MODEL

Model Name

DM042



Connection

USB 2.0 to PC/HDMI port to monitor/TV port to monitor

OPTICS

Polarizer

Yes



Magnification

Real 10x~250x(based on 21 inch Display)



Lens type

Optical glass



Focus range

Manual focus 0~110mm



Illumination

8 adjustable white LED

SENSOR

Sensor type

CMOS



Size

5 megapixel



Resolution

2590*1944



Frame rate

25 fps at 5MP output;
35 fps at 2MP output

FEATURES

Software

DigiCapture Pro for
Windows/MacOS



Measurement function

Yes



Certification

CE/FCC/RoHS

PHYSICAL

Dimensions

18*34*30cm



Gross weight

0.2kg



Stand

Comes with metal stand

 SMD Soldering Digital USB Coin Microscope With Screen Circuit Board Inspection 0
 SMD Soldering Digital USB Coin Microscope With Screen Circuit Board Inspection 1



PRODUCT ADVANTAGE

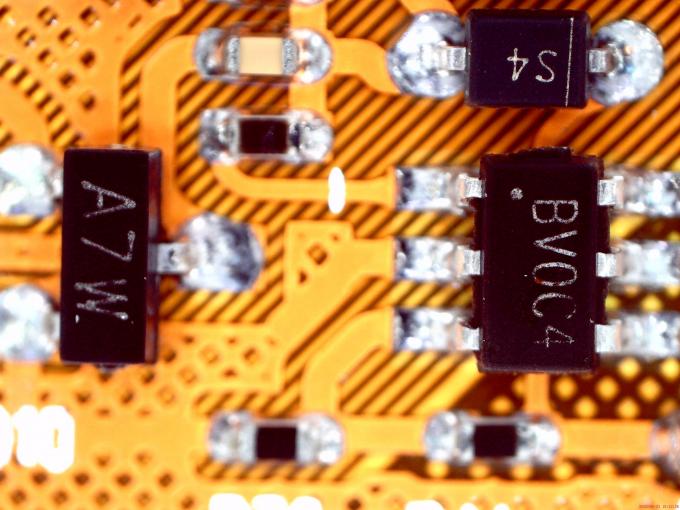

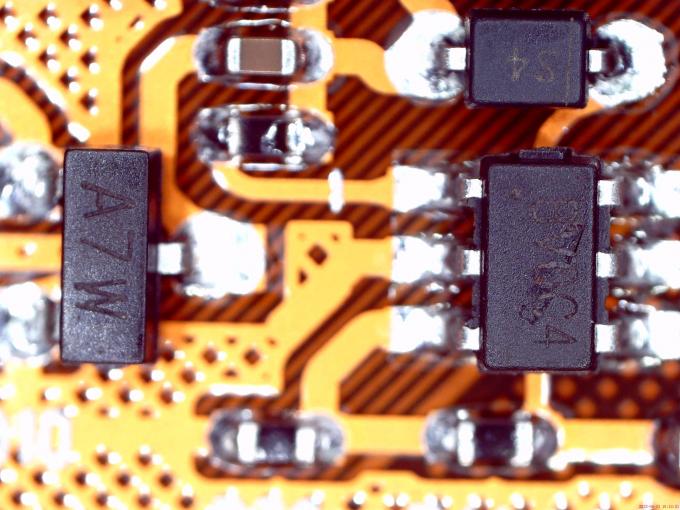

New technology for digital microscope - Polarizer.
Polarized light microscopes can create different polarization configurations that depend on the relative orientation between polarizers: parallel polarization is for polarizers that are oriented parallel to each other, and cross polarization is the configuration for polarizers that are oriented perpendicular to each other. Depending on the polarization configuration and the interaction of incident light with the target, light will be transmitted or blocked. In this case, users can get the clear and without reflection light observation with this Toproview new technology LCD digital microscope.
