Place of Origin:
China
Brand Name:
Toproview/Neutral/Customization
Certification:
CE/FCC/RoHS
Model Number:
DM042
Contact Us

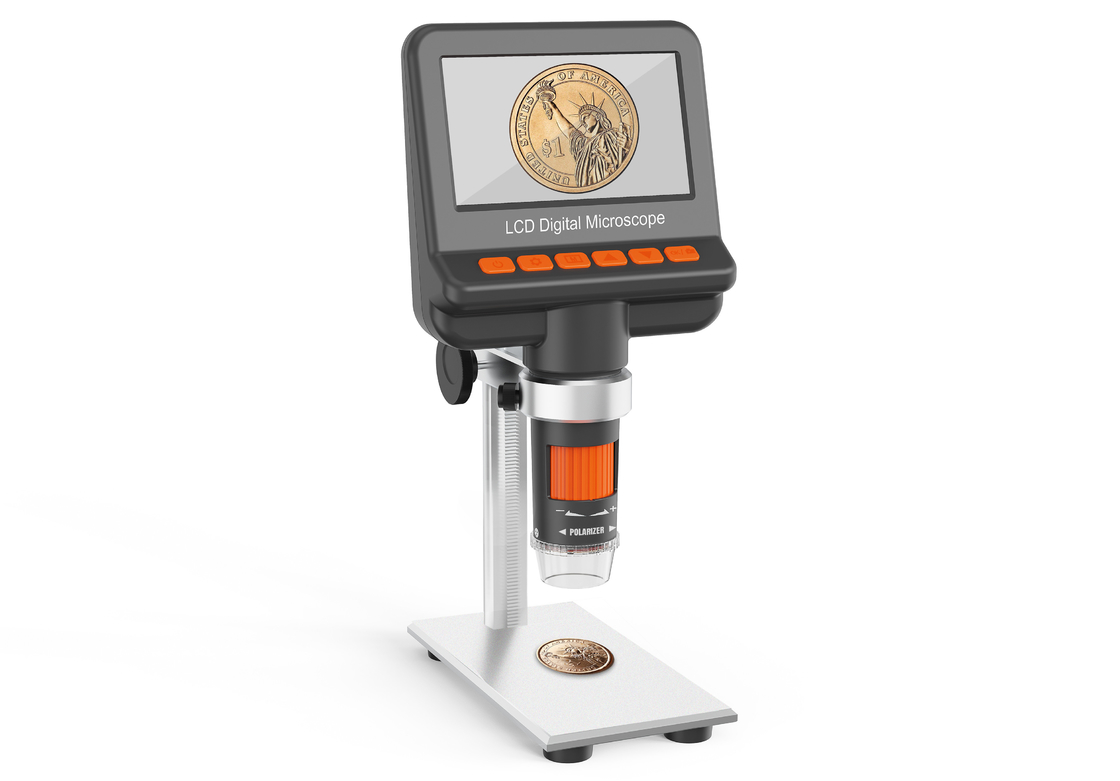

HDMI LCD Portable Digital Microscope Real 5MP Sensor 250x Magnification Polarization
PRODUCT DESCRIPTION
Main Features
* High magnification: real 250x and up to 1200x by digital zoom.
* High resolution: real 5MP resolution sensor, and up to 12MP resolution by digital zoom.
* Features HDMI output enabling the microscope to be connected with external monitors, giving user the unexpected experience of viewing and photographing.
Quick Details
DM042 is the polarizer type LCD digital microscopes that with high resolution and multiple output methods for various applications. It supports for 4 kinds of connection: live viewing, capture, recording by the device itself; through HDMI cable to output live into HDMI monitor; through TV cable to output live into TV monitor; through USB cable connecting to Windows, Mac computes or laptop and do some capture, store images and videos, measurements with attached PC software. The built-in adjustable polarizer allows to freely remove the unwanted reflection or glare from the object surface for a better contrast.
LCD DIGITAL MICROSCOPE SPECIFICATIONS
|
MODEL |
Model Name |
DM042 |
|
|
Connection |
USB 2.0 to PC/HDMI port to monitor/TV port to monitor |
|
OPTICS |
Polarizer |
Yes |
|
|
Magnification |
Real 10x~250x(ba |
|
|
Lens type |
Optical glass |
|
|
Focus range |
Manual focus 0~110mm |
|
|
Illumination |
8 adjustable white LED |
|
SENSOR |
Sensor type |
CMOS |
|
|
Size |
5 megapixel |
|
|
Resolution |
2590*1944 |
|
|
Fr |
25 fps at 5MP output; |
|
FEATURES |
Software |
DigiCapture Pro for |
|
|
Measurement function |
Yes |
|
|
Certification |
CE/FCC/RoHS |
|
PHYSICAL |
Dimensions |
18*34*30cm |
|
|
Gross weight |
0.2kg |
|
|
Stand |
Comes with me |
FAQ
Q:Why choose Toproview microscopes?
Toproview: Developed for professionals yet economical for consumer or casual use
Q:Why choose Toproview microscopes?
Toproview: If the selection of products do not meet your needs, custom options are available.
Send your inquiry directly to us
