OBM/OEM Portable Digital Microscope Software Polarizer WiFi / USB Port 2MP 1080P

OBM/OEM Portable Digital Microscope Software Polarizer WiFi / USB Port 2MP 1080P

OEM Portable Digital Microscope

WiFi USB Portable Digital Microscope

1080P WiFi Digital Microscope

Place of Origin:

Shenzhen , China

Brand Name:

Neutral / Customization



Model Number:


Contact Us

Request A Quote
Product Details
Customized Support:
Recording Button On Microscope:
WiFi / USB Port
Led,Aluminium Alloy,Glass,acrylic
Image Sensor:
2 Mega Pixels
Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
Neutral / Customization Giftbox / 20pcs per carton
Delivery Time
6~36 working days
Payment Terms
L/C, T/T, Western Union, D/A, D/P
Supply Ability
Product Description

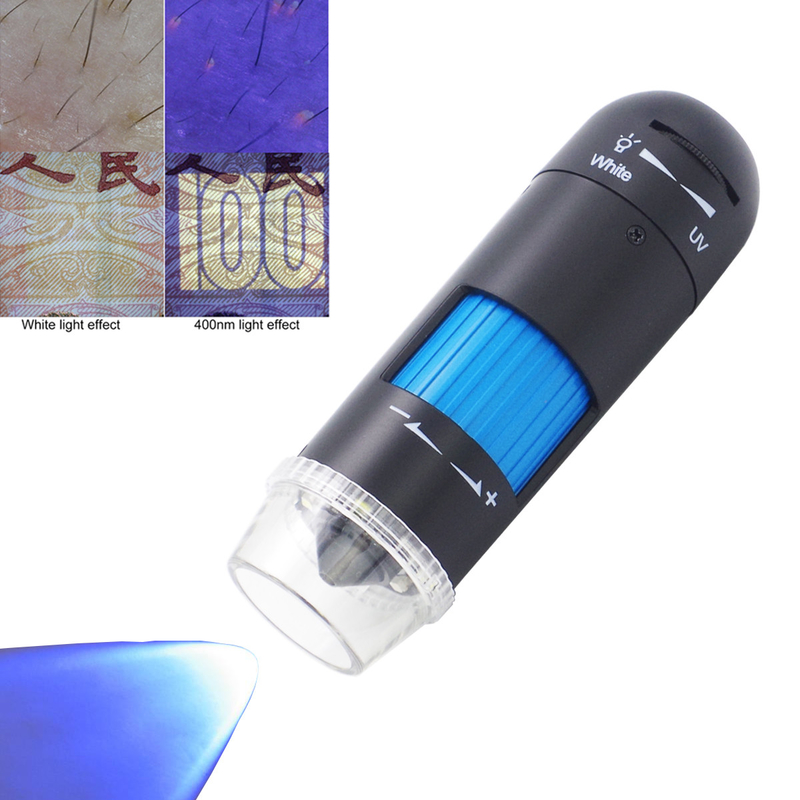

WiFi Digital Microscope Software Polarizer,USB,WiFi,Real 2MP 1080P



Quick Details

* DM023A portable digital microscope, which is without cable needed and allows users to carry to use anywhere, to capture image content and storage easily for reference. It enhances the users’ experience, especially for collectinghobby. Such as: coins, stamps and antique collectors and lab engineer, children's microscopic experience exploration tools.


Product Specification:

Model Model Name DM023A
Features Connection WiFi to Smart Devices / USB 2.0 to PC
Image Sensor 2 Megapixel CMOS
Photo And Video Resolution 1920*1088 / 1280*720 / 864*480
Magnification Ratio Real 10x~200x(Based On 24 inch Display)
Max.Frame Rate 25 fps at 2MP Output
Light Source 8Pcs SMT White LED
LED Brightness Adjustable Yes
Focus Range From 0mm to 110mm
Lens Type Optical Glass
Brand Name Toproview / Neutral / Customization
Customized Support OEM / ODM / OBM
Certification CE / FCC / RoHS
Advantage Switchable Polarizer Yes
Capture Microtouch On Microscope Yes
Recording Button On Microscope Yes
Digital Zoom Button On Microscope Yes
Rechargeable And Replaceable Battery 2000mAh 18650 Lithium-Ion
Battery Working Time Continue working for 2.5 hours
Charging Time 2.5hrs (When WiFi Digital Microscope Power Off)
SD Card Slot Support SD Card Storage Up To 32G (Not Included In The Neutral Package)
Warranty 1 Year
Software APP for Smart Devices Topscope Pro (Customizable)
APP Supported Operation Systems iOS 12.0 or later, Android 4.2 or later
APP Supported Photo And Video Recording Yes
APP Supported Battery Capacity Display Yes
PC Software DigiCapture Pro (Customizable)
PC Software Supported Operation Systems Windows 7/8/10 , macOS 11.2.1 or above
PC Software OSD Language There Are 16 Languages Built In The Software
PC Software With Professional Measurement Yes
PC Software Support Four Display Concurrently Yes
PC Software Support Photo,Video Recording,Timed Photo And Timed Video Yes
PC Software Support Plug and Play Yes
Package details Accessories CD, USB cable,replaceable battery,calibration ruler,metal stand,Quick Start Guide
Body Dimension 16.6*4.5*4.0cm
Gross Weight 0.2KG
Gift Box 26*18*8cm
Gross Weight 0.65KG
Carton Box 54.2*37*42cm
Gross Weight 14.5KG
Carton 20Pcs


Product Advantages:

1: It is perfectly suited for microscopic observations of any surfaces, both at home and outside. All of this makes this microscope an excellent gift for any schoolchild.

2: The Handheld Digital Microscope can be manipulated with one hand and easily focused using the barrel focus wheel.

OBM/OEM Portable Digital Microscope Software Polarizer WiFi / USB Port 2MP 1080P 0

OBM/OEM Portable Digital Microscope Software Polarizer WiFi / USB Port 2MP 1080P 1


Our Services


1. 7 Years professional led display manufacturer,

2. Shot delivery time: 5-15days.
3. Factory price.

4. OEM and ODM service
5. We can design special product for you.

6. 30% deposit for producing,70% balance to be paid before shipment.

7. EXW, FOB, CIF C&F, FCA, DDU, colorful trade term.
