Shenzhen Toproview Technology Co., Ltd

1080P Portable Lcd Digital Microscope Gem Jewelry Microscope Handheld

Product Details:
Place of Origin: Shenzhen , China
Brand Name: Neutral / Customization
Certification: CE / FCC / RoHS
Model Number: DM042
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Neutral / Customization Giftbox / 16pcs per carton
Delivery Time: 6~36 working days
Payment Terms: L/C, T/T, Western Union, D/A, D/P
Supply Ability: 60000pcs/month
  • Detail Information
  • Product Description

Detail Information

Model Name: DM042 Polarizer: Yes
Connection: 4.3 Inch LCD / USB 2.0 To PC / HDMI Port To Monitor / TV Port To Monitor Sensor: 5 Megapixel CMOS Image Sensor
Customized Support: OEM / ODM / OBM Magnification: Real 10x~250x, Up To 1200x
High Light:

Gem Jewelry Microscope Handheld FCC


FCC HDMI Portable Lcd Digital Microscope


Portable Lcd Digital Microscope Gem

Product Description

4.3 Inch HDMI 1080P LCD Digital Gem Microscope With 8 Adjustable LED Light Video Camera Microscope For Gem Inspection


1: Lift the bracket to obtain different object distances, and you can easily observe more objects of different sizes.

2: Supports HDMI display, get up to 1200 times magnification effect so that you can see more three-dimensional and vivid. Very suitable for welding, maintenance, product display, etc.


Product Specification:

Model Model Name DM042
Features Screen Size 4.3 inch
Connection 4.3 inch LCD / USB 2.0 to PC / HDMI Port To Monitor / TV Port To Monitor
Image Sensor 5 Megapixel 1/2.8" CMOS Image Sensor
Photo Resolution 12MP / 10MP / 8MP / 5MP / 3MP / 2MP
Video Resolution 1920*1080 / 1280*720
Magnification Ratio Real 10x~250x, Up To 1200x By Digital Zoom(Based On 21 inch Display)
Light Source 8Pcs SMT White LED
LED Brightness Adjustable Yes
Focus Range From 0mm to 55mm on metal stand
Lens Type Optical Glass
Advantage Switchable Polarizer Yes
Brand Name Toproview / Neutral / Customization
Customized Support OEM / ODM / OBM
Certification CE / FCC / RoHS
Focus Mode Manual Continuous Focus
Rechargeable And Replaceable Battery 1050mAh BL-5C Lithium-Ion
SD Card Slot Support SD Card Storage Up To 32G (Not Included In The Neutral Package)
Warranty 1 Year
Software PC Software DigiCapture Pro (Customizable)
PC Software Supported Operation Systems Windows 7 / 8 / 10 , macOS 11.2.1 or above
PC Software OSD Language There Are 16 Languages Built In The Software
PC Software With Professional Measurement Yes
PC Software Support Four Display Concurrently Yes
PC Software Support Photo,Video Recording,Timed Photo And Timed Video Yes
PC Software Support Plug and Play Yes
Package details Accessories CD, USB Cable,HDMI Cable,TV Cable,Rechargeable Battery,Calibration Ruler, Metal Stand
Body Dimension 235x123x65mm
Gross Weight 0.2KG
Gift Box 27.5*18.5*10.5cm
Gross Weight 0.85KG
Carton Box 46.5*33*37.5cm
Gross Weight 14.7KG
Carton 16Pcs


Product Advantages:

1: This Microscopes can be widely used in electronics, maintenance, textiles, jewelry, and student exploration industries, allowing you to detect parts and their small physical observations and analysis, and can also be used for children's learning exploration and observation Flowers, insects, coins, etc. increase the child's desire for knowledge and open the door to the microcosm.


Product picture:

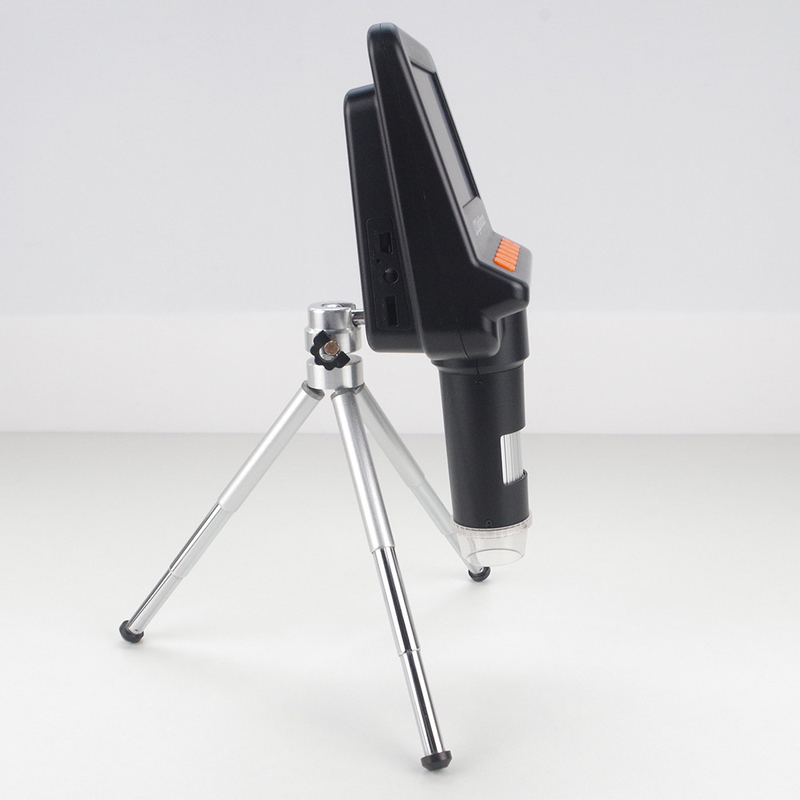

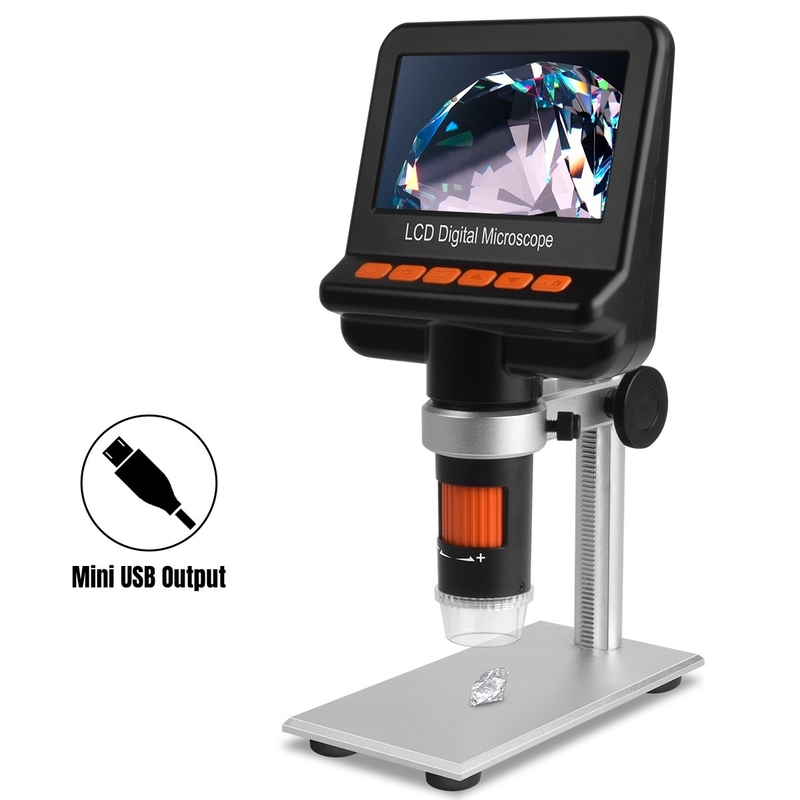

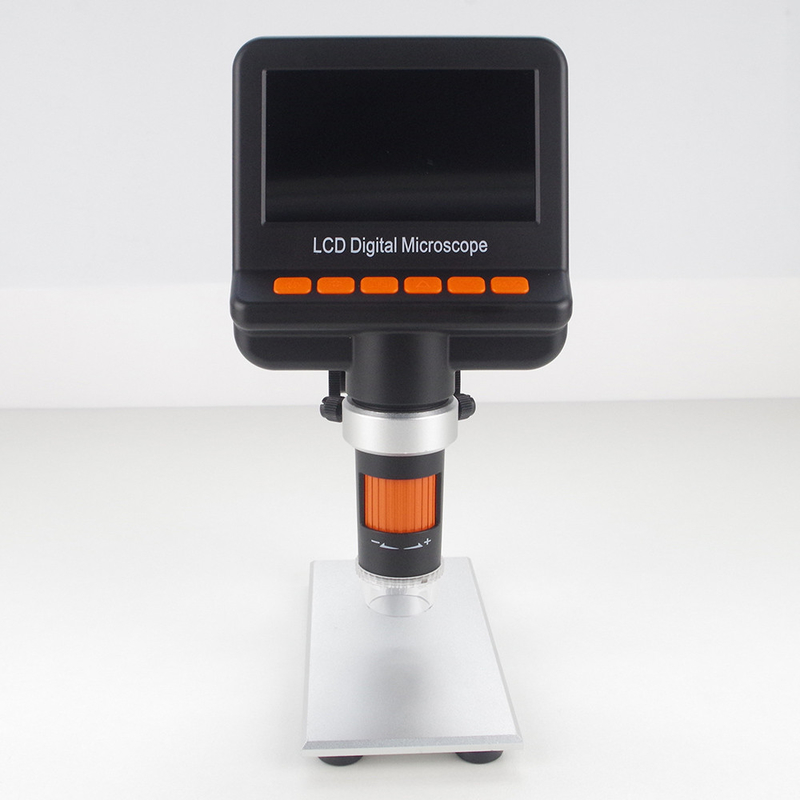

1080P Portable Lcd Digital Microscope Gem Jewelry Microscope Handheld 0



1080P Portable Lcd Digital Microscope Gem Jewelry Microscope Handheld 1


1080P Portable Lcd Digital Microscope Gem Jewelry Microscope Handheld 2
