2MP WIFI Portable Handheld USB Digital Gem Microscope With Polarized For Gem Detection
1: Comes with the professional measurement software developed by us, through which you can easily connect the microscope to your computer, and enjoy your work from now on.
2: The sturdy metal housing and bracket enable your microscope to withstand various operations, such as heating, welding, cutting, etc., so that your work is more assured.
Product Specification:
| Model | Model Name | DM023A |
| Features | Connection | WiFi to Smart Devices / USB 2.0 to PC |
| Image Sensor | 2 Megapixel CMOS | |
| Photo And Video Resolution | 1920*1088 / 1280*720 / 864*480 | |
| Magnification Ratio | Real 10x~200x(Based On 24 inch Display) | |
| Max.Frame Rate | 25 fps at 2MP Output | |
| Light Source | 8Pcs SMT White LED | |
| LED Brightness Adjustable | Yes | |
| Focus Range | From 0mm to 110mm | |
| Lens Type | Optical Glass | |
| Brand Name | Toproview / Neutral / Customization | |
| Customized Support | OEM / ODM / OBM | |
| Certification | CE / FCC / RoHS | |
| Advantage | Switchable Polarizer | Yes |
| Capture Microtouch On Microscope | Yes | |
| Recording Button On Microscope | Yes | |
| Digital Zoom Button On Microscope | Yes | |
| Rechargeable And Replaceable Battery | 2000mAh 18650 Lithium-Ion | |
| Battery Working Time | Continue working for 2.5 hours | |
| Charging Time | 2.5hrs (When WiFi Digital Microscope Power Off) | |
| SD Card Slot | Support SD Card Storage Up To 32G (Not Included In The Neutral Package) | |
| Warranty | 1 Year | |
| Software | APP for Smart Devices | Topscope Pro (Customizable) |
| APP Supported Operation Systems | iOS 12.0 or later, Android 4.2 or later | |
| APP Supported Photo And Video Recording | Yes | |
| APP Supported Battery Capacity Display | Yes | |
| PC Software | DigiCapture Pro (Customizable) | |
| PC Software Supported Operation Systems | Windows 7/8/10 , macOS 11.2.1 or above | |
| PC Software OSD Language | There Are 16 Languages Built In The Software | |
| PC Software With Professional Measurement | Yes | |
| PC Software Support Four Display Concurrently | Yes | |
| PC Software Support Photo,Video Recording,Timed Photo And Timed Video | Yes | |
| PC Software Support Plug and Play | Yes | |
| Package details | Accessories | CD, USB cable,replaceable battery,calibration ruler,metal stand,Quick Start Guide |
| Body Dimension | 16.6*4.5*4.0cm | |
| Gross Weight | 0.2KG | |
| Gift Box | 26*18*8cm | |
| Gross Weight | 0.65KG | |
| Carton Box | 54.2*37*42cm | |
| Gross Weight | 14.5KG | |
| Carton | 20Pcs |
Product Advantages:
1: When connecting your phone to the lcd microscope, you can compare the instant images under the microscope lens to any one captured on your phone app for further analysis easily .
2: Lightweight and small size are convenient for taking them with you everywhere. Easy to operate, allows you to take it on your trips for children to study plants, minerals, insects, or have fun outdoor activities.

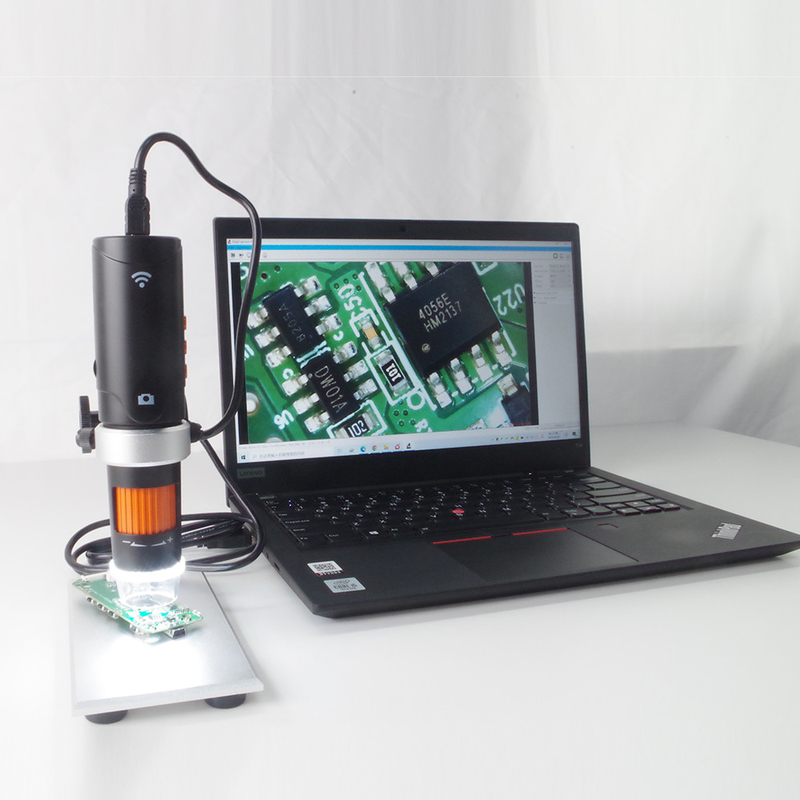

Product picture:
