Shenzhen Toproview Technology Co., Ltd

1080P HDMI Diamond Digital Microscope Lcd

Product Details:
Place of Origin: Shenzhen , China
Brand Name: Neutral / Customization
Certification: CE / FCC / RoHS
Model Number: DM042
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Neutral / Customization Giftbox / 16pcs per carton
Delivery Time: 6~36 working days
Payment Terms: L/C, T/T, Western Union, D/A, D/P
Supply Ability: 60000pcs/month
  • Detail Information
  • Product Description

Detail Information

Model Name: DM042 Polarizer: Yes
Connection: 4.3 Inch LCD / USB 2.0 To PC / HDMI Port To Monitor / TV Port To Monitor Image Sensor: 5 Megapixel 1/2.8" CMOS Image Sensor
Customized Support: OEM / ODM / OBM Magnification Ratio: Real 10x~250x, Up To 1200x By Digital Zoom(Based On 21 Inch Display)
High Light:

HDMI Diamond Inscription Reader Digital Microscope

,

Microscope Lcd 4.3inch

,

SMT Microscope Lcd

Product Description

1080P HDMI Jewelry Microscope Handheld With 4.3'' Handheld Tool For Coin Collection , SMT PCB Soldering



1: This inspection microscope adopts 4.3in IPS HD display screen that shows exquisite details and delicate pictures.

2: This LCD digital microscope with 1050mAh battery captures 12MP image and 1920x1080P video.



Product Specification:

Model Model Name DM042
Features Screen Size 4.3 inch
Connection 4.3 inch LCD / USB 2.0 to PC / HDMI Port To Monitor / TV Port To Monitor
Image Sensor 5 Megapixel 1/2.8" CMOS Image Sensor
Photo Resolution 12MP / 10MP / 8MP / 5MP / 3MP / 2MP
Video Resolution 1920*1080 / 1280*720
Magnification Ratio Real 10x~250x, Up To 1200x By Digital Zoom(Based On 21 inch Display)
Light Source 8Pcs SMT White LED
LED Brightness Adjustable Yes
Focus Range From 0mm to 55mm on metal stand
Lens Type Optical Glass
Advantage Switchable Polarizer Yes
Brand Name Toproview / Neutral / Customization
Customized Support OEM / ODM / OBM
Certification CE / FCC / RoHS
Focus Mode Manual Continuous Focus
Rechargeable And Replaceable Battery 1050mAh BL-5C Lithium-Ion
SD Card Slot Support SD Card Storage Up To 32G (Not Included In The Neutral Package)
Warranty 1 Year
Software PC Software DigiCapture Pro (Customizable)
PC Software Supported Operation Systems Windows 7 / 8 / 10 , macOS 11.2.1 or above
PC Software OSD Language There Are 16 Languages Built In The Software
PC Software With Professional Measurement Yes
PC Software Support Four Display Concurrently Yes
PC Software Support Photo,Video Recording,Timed Photo And Timed Video Yes
PC Software Support Plug and Play Yes
Package details Accessories CD, USB Cable,HDMI Cable,TV Cable,Rechargeable Battery,Calibration Ruler, Metal Stand
Body Dimension 235x123x65mm
Gross Weight 0.2KG
Gift Box 27.5*18.5*10.5cm
Gross Weight 0.85KG
Carton Box 46.5*33*37.5cm
Gross Weight 14.7KG
Carton 16Pcs



Product Advantages:

1: This LCD digital microscope is widely used in circuit board testing, clock repair, textile industry, coin identification, early childhood education testing, biological observation, jewelry, stamps, plants, quality control inspection.

2: This coin microscope has great pictures quality to look at every minute detail of each coin, and it is a good gift for coin collector.

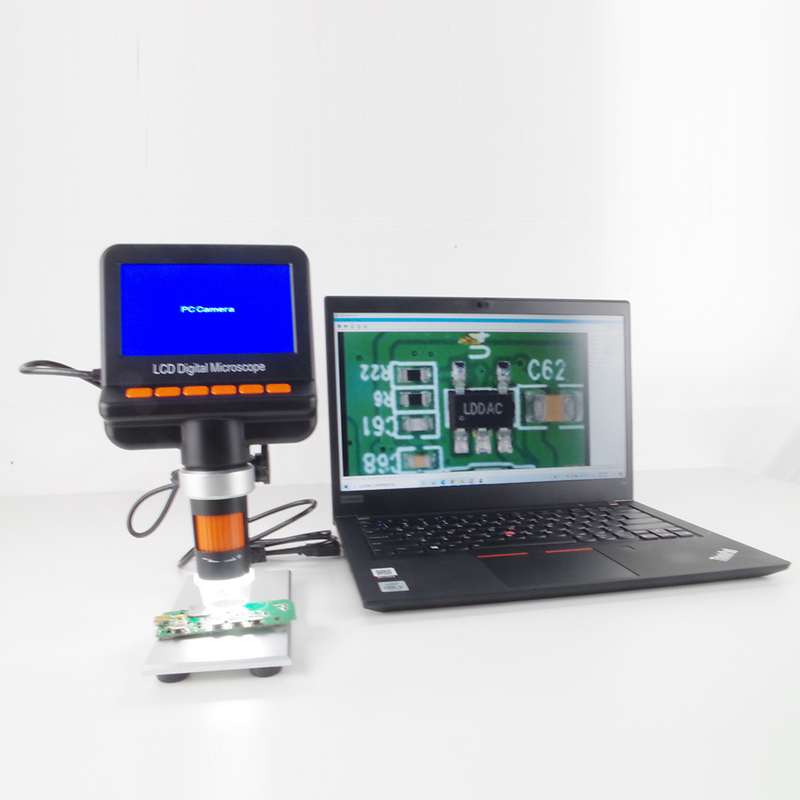

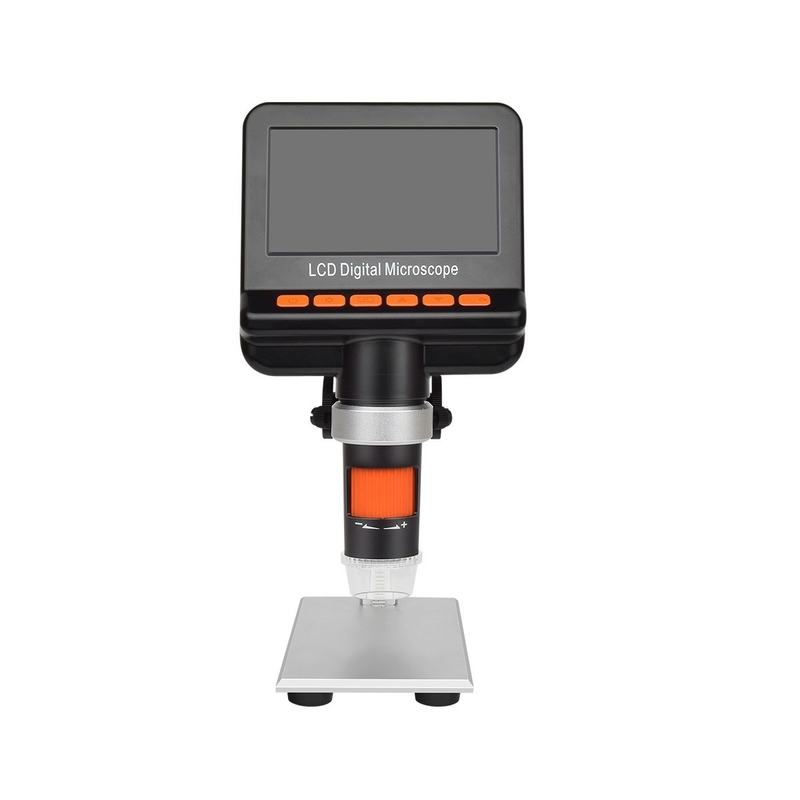

Product picture:

1080P HDMI Diamond Digital Microscope Lcd 0



FAQ:

1080P HDMI Diamond Digital Microscope Lcd 1



1080P HDMI Diamond Digital Microscope Lcd 2
