2MP Portable Digital Microscope USB 2.0 Jewelry Microscope Handheld PCB Solder

Product Details:
Place of Origin: Shenzhen , China
Brand Name: Neutral / Customization
Certification: CE / FCC / RoHS
Model Number: DM022B
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Neutral / Customization Giftbox / 16pcs per carton
Delivery Time: 6~36 working days
Payment Terms: L/C, T/T, Western Union, D/A, D/P
Supply Ability: 60000pcs/month
  • Detail Information
  • Product Description

Detail Information

Model Name: DM022B Resolution: 1920*1080 / 1280*720 / 640*480
Magnification Ratio: Real 10x~200x Frame: 30 Fps
Switchable Polarizer: Yes Sensor: 2 Megapixel 1/3" CMOS Image Sensor
High Light:

2MP Portable Digital Microscope

,

Portable Digital Microscope USB 2.0

,

USB 2.0 Jewelry Microscope Handheld

Product Description

2MP Portable USB Jewelry Microscope Handheld With Stand For PCB Soldering And Watch Repair

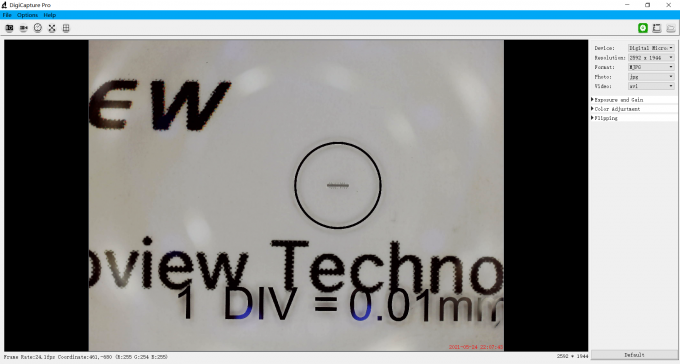

1: The microscope can be used to measure and support measurement software. Please download the measurement software and connect the microscope with the computer to start measuring.

2: This digital microscope is able to present live images and videos right before your eyes. Supporting measurement software, it can be used to measure with precision.



Product Specification:

Model Model Name DM022B
Features Connection USB 2.0 to PC
Image Sensor 2 Megapixel 1/3" CMOS Image Sensor
Photo And Video Resolution 1920*1080 / 1280*720 / 640*480
Magnification Ratio Real 10x~200x(Based On 21 inch Display)
Max.Frame Rate 30 fps at 2MP Output
Light Source 8Pcs SMT White LED
LED Brightness Adjustable Yes
Focus Range From 0mm to 55mm on metal stand
Lens Type Optical Glass
Advantage Switchable Polarizer Yes
Brand Name Toproview / Neutral / Customization
Customized Support OEM / ODM / OBM
Certification CE / FCC / RoHS
Focus Mode Manual Continuous Focus
Warranty 1 Year
Software PC Software DigiCapture Pro (Customizable)
PC Software Supported Operation Systems Windows 7 / 8 / 10 , macOS 11.2.1 or above
PC Software OSD Language There Are 16 Languages Built In The Software
PC Software With Professional Measurement Yes
PC Software Support Four Display Concurrently Yes
PC Software Support Photo,Video Recording,Timed Photo And Timed Video Yes
PC Software Support Plug and Play Yes
Package details Accessories CD, USB cable,calibration ruler,metal stand
Body Dimension 110x35x25mm
Gross Weight 0.06KG
Gift Box 22*16*9cm
Gross Weight 0.6KG
Carton Box 46.5*33*37.5cm
Gross Weight 10.5KG
Carton 16Pcs



Product Advantages:

1: The digital microscope can be used for a coin collection, stamp collection, skin inspection, industrial inspection(PCB), animals/plants/insect observation, jewelry appraisal, print circuit board repair.

2: This innovative digital microscope is designed for PCB checking, SMD soldering, QC inspection, watch repair and phone repair, etc.



Product picture:

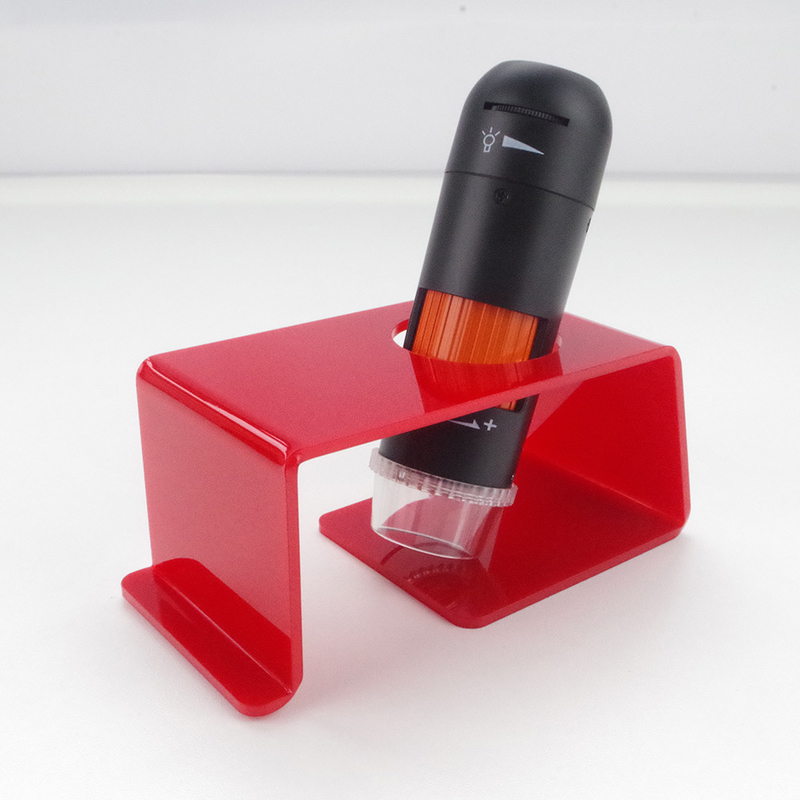

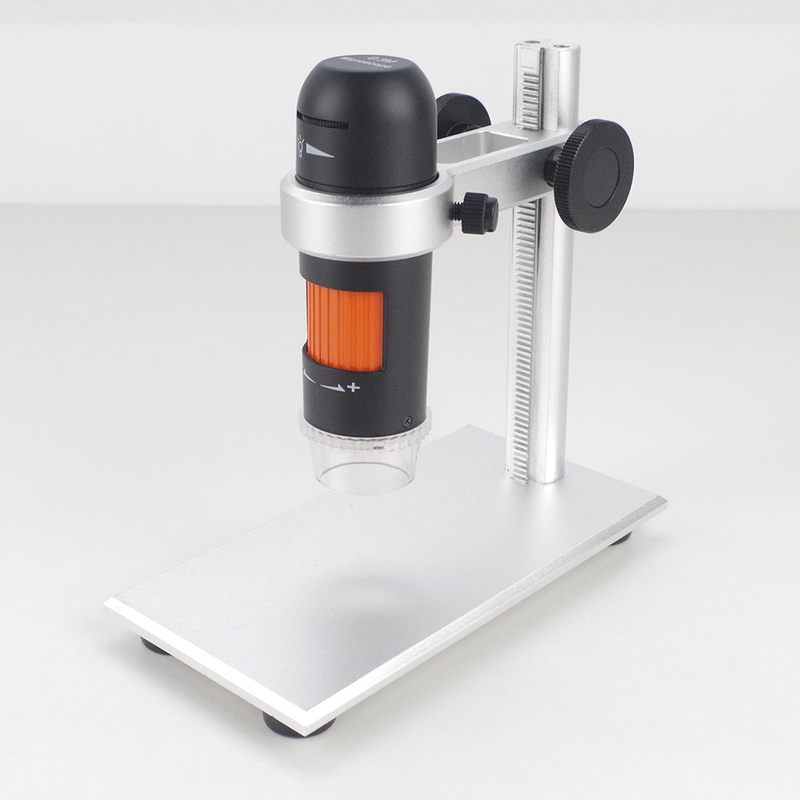

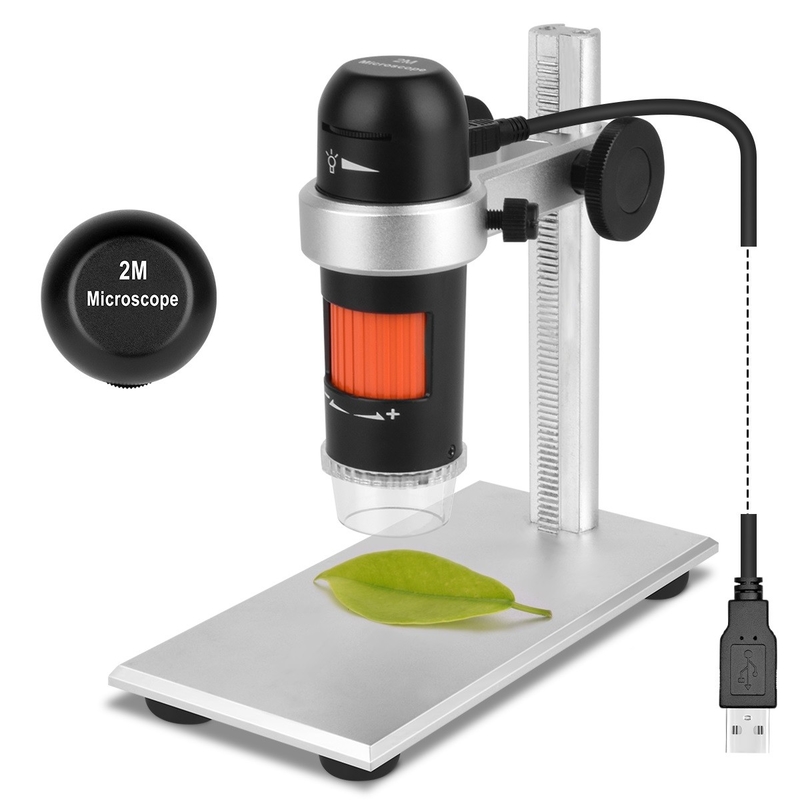

2MP Portable Digital Microscope USB 2.0 Jewelry Microscope Handheld PCB Solder 0



FAQ:

2MP Portable Digital Microscope USB 2.0 Jewelry Microscope Handheld PCB Solder 1
