Shenzhen Toproview Technology Co., Ltd

CE Portable Usb Phone Microscope Polarizer Handheld For Pc

Product Details:
Place of Origin: Shenzhen , China
Brand Name: Neutral / Customization
Certification: CE / FCC / RoHS
Model Number: DM022C
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Neutral / Customization Giftbox / 16pcs per carton
Delivery Time: 6~36 working days
Payment Terms: L/C, T/T, Western Union, D/A, D/P
Supply Ability: 60000pcs/month
  • Detail Information
  • Product Description

Detail Information

Model Name: DM022C Switchable Polarizer: Yes
Magnification Ratio: Real 10x~250x(Based On 21 Inch Display) Photo And Video Resolution: 5MP / 4MP / 3MP / 2MP / 1.3MP
Image Sensor: 5 Megapixel 1/3.2" CMOS Image Sensor Frame Rate: 25 Fps
High Light:

Usb Phone Microscope Polarizer


CE Portable Usb Phone Microscope


Polarizer Handheld Microscope For Pc

Product Description

5MP Portable USB Jewelry Microscope Handheld With Polarizer For Jewelry Inspection


1: This USB microscope camera is compatible with Windows and Mac.It is plug and play.

2: This digital microscope offers improvements on image distortion and capture more real and vivid image from any angle.


Product Specification:

Model Model Name DM022C
Features Connection USB 2.0 to PC
Image Sensor 5 Megapixel 1/3.2" CMOS Image Sensor
Photo And Video Resolution 5MP / 4MP / 3MP / 2MP / 1.3MP
Magnification Ratio Real 10x~250x(Based On 21 inch Display)
Max.Frame Rate 25 fps at 5MP Output
Light Source 8Pcs SMT White LED
LED Brightness Adjustable Yes
Focus Range From 0mm to 55mm on metal stand
Lens Type Optical Glass
Advantage Switchable Polarizer Yes
Brand Name Toproview / Neutral / Customization
Customized Support OEM / ODM / OBM
Certification CE / FCC / RoHS
Focus Mode Manual Continuous Focus
Warranty 1 Year
Software PC Software DigiCapture Pro (Customizable)
PC Software Supported Operation Systems Windows 7 / 8 / 10 , macOS 11.2.1 or above
PC Software OSD Language There Are 16 Languages Built In The Software
PC Software With Professional Measurement Yes
PC Software Support Four Display Concurrently Yes
PC Software Support Photo,Video Recording,Timed Photo And Timed Video Yes
PC Software Support Plug and Play Yes

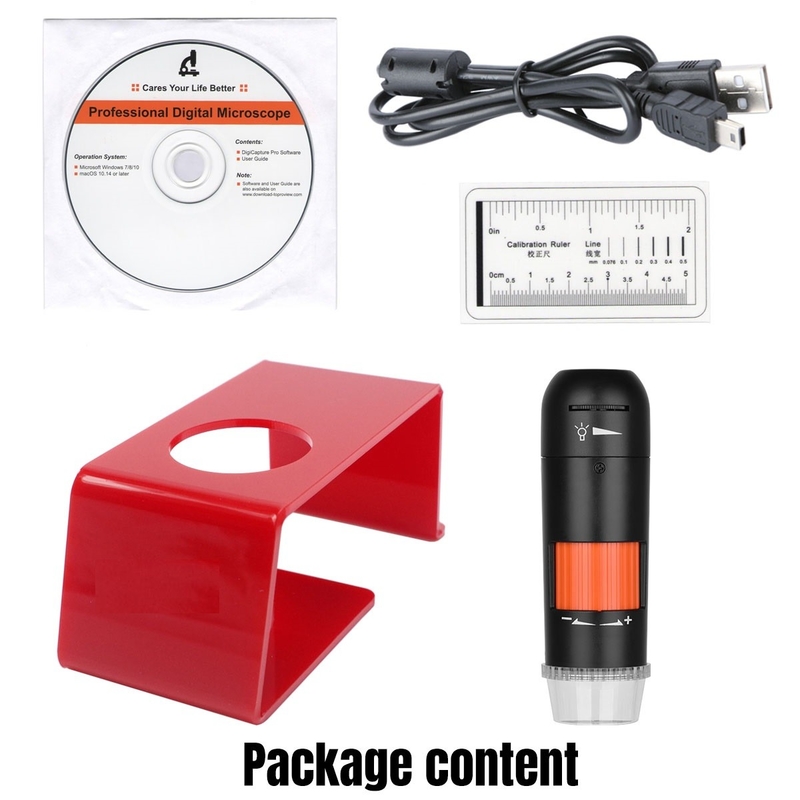

Package details Accessories CD, USB cable,calibration ruler,metal stand
Body Dimension 110x35x25mm
Gross Weight 0.06KG
Gift Box 22*16*9cm
Gross Weight 0.6KG
Carton Box 46.5*33*37.5cm
Gross Weight 10.5KG
Carton 16Pcs


Product Advantages:

1: Applicable to various microscopic requirements: authenticity of jewelry, industrial use, learning purpose, medical use.

2: This portable microscope With up to 250X magnification, it can offer a better viewing experience when doing soldering or repair work.


Product picture:

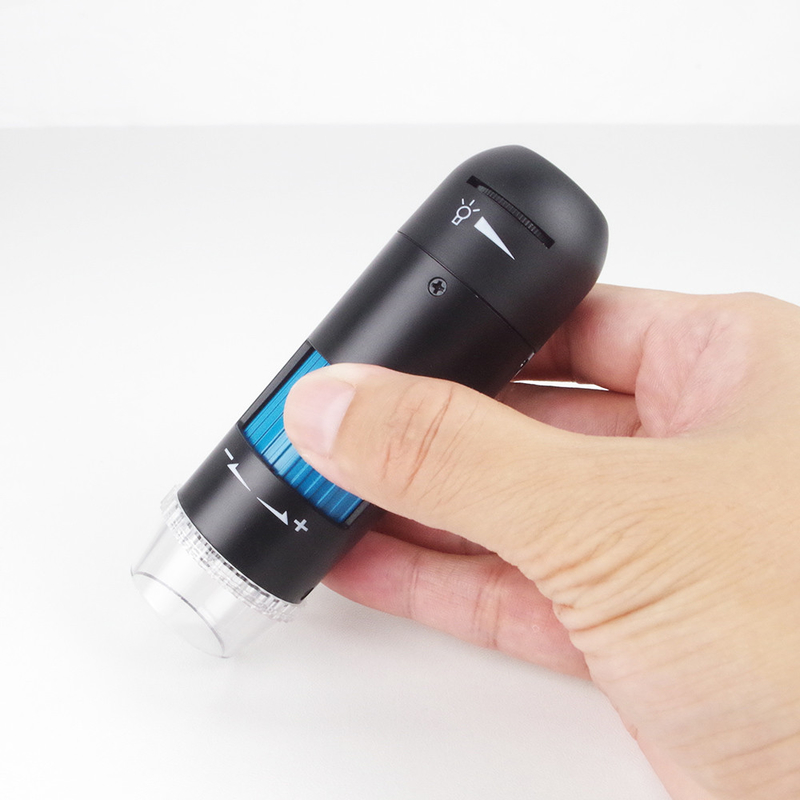

CE Portable Usb Phone Microscope Polarizer Handheld For Pc 0

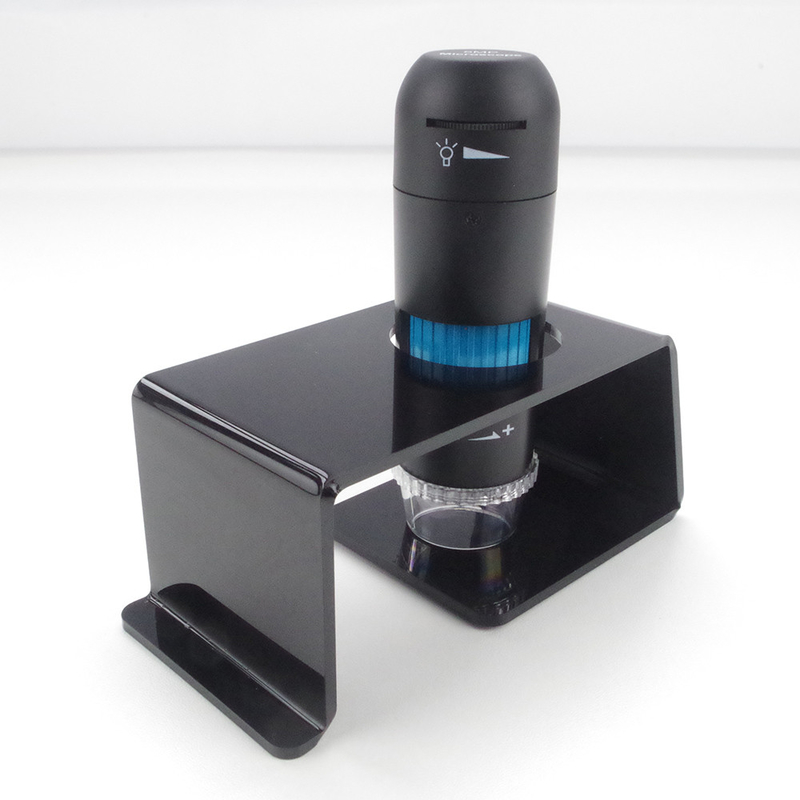

CE Portable Usb Phone Microscope Polarizer Handheld For Pc 1

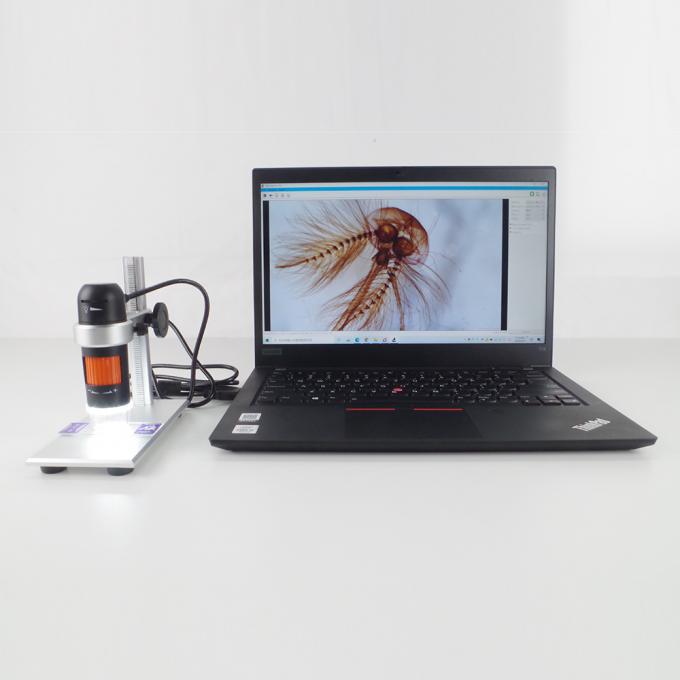

CE Portable Usb Phone Microscope Polarizer Handheld For Pc 2
