Shenzhen Toproview Technology Co., Ltd

Mini USB Jewelry Microscope Handheld RoHS Digital Microscope With Screen

Product Details:
Place of Origin: Shenzhen , China
Brand Name: Neutral / Customization
Certification: CE / FCC / RoHS
Model Number: DM023B
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Neutral / Customization Giftbox / 20pcs per carton
Delivery Time: 6~36 working days
Payment Terms: L/C, T/T, Western Union, D/A, D/P
Supply Ability: 60000pcs/month
  • Detail Information
  • Product Description

Detail Information

Model Name: DM023B Polarizer: No
Connection: WiFi / USB 2.0 Light Source: 4pcs White LED+4pcs 400nm UV LED
LED Brightness Adjustable: Yes Warranty: 1 Year
High Light:

USB Jewelry Microscope Handheld


Jewelry Microscope Handheld RoHS


RoHS Digital Microscope With Screen

Product Description

Portable Mini USB Wireless Jewelry Microscope Handheld For Children Adults Lab


1: This digital microscope adopts 8 LED light design that provides more excellent detail and optimal clarity in some dark places.

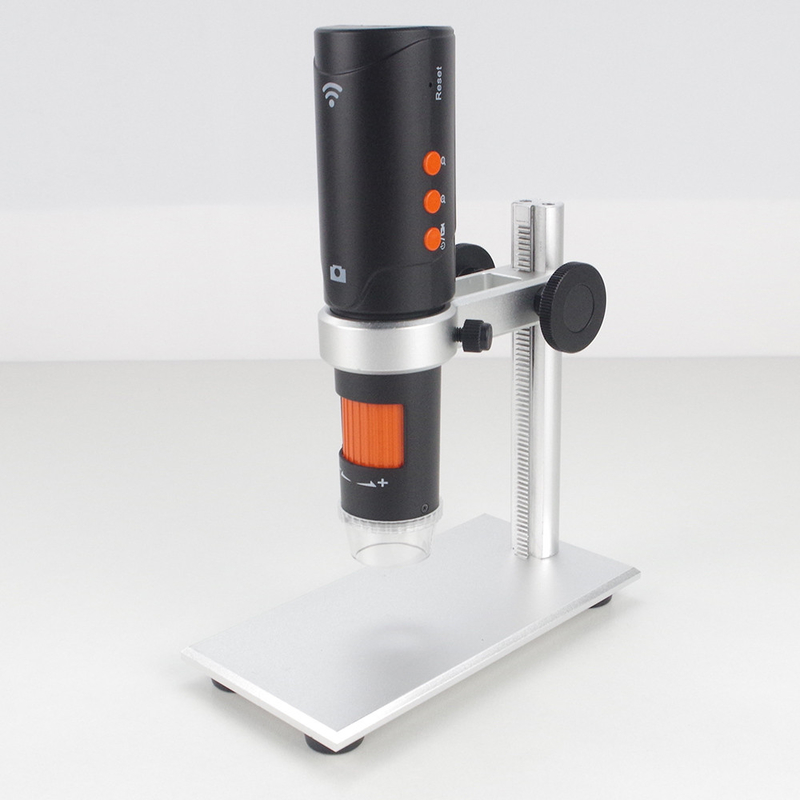

2: Adjust the height-adjustable stand of this USB microscope by the controller, the magnification and the distance between the camera and the object will be adjusted.


Product Specification:

Model Model Name DM023B
Features Connection WiFi to Smart Devices / USB 2.0 to PC
Image Sensor 2 Megapixel CMOS
Photo And Video Resolution 1920*1088 / 1280*720 / 864*480
Magnification Ratio Real 10x~200x(Based On 24 inch Display)
Max.Frame Rate 25 fps at 2MP Output
Light Source 4pcs white LED+4pcs 400nm UV LED
LED Brightness Adjustable Yes
Focus Range From 0mm to 110mm
Lens Type Optical Glass
Advantage Switchable Polarizer No
Capture Microtouch On Microscope Yes
Recording Button On Microscope Yes
Digital Zoom Button On Microscope Yes
Rechargeable And Replaceable Battery 2000mAh 18650 Lithium-Ion
Battery Working Time Continue working for 2.5 hours
Charging Time 2.5hrs (When WiFi Digital Microscope Power Off)
SD Card Slot Support SD Card Storage Up To 32G (Not Included In The Neutral Package)
Warranty 1 Year
Software APP for Smart Devices Topscope Pro (Customizable)
APP Supported Operation Systems iOS 12.0 or later, Android 4.2 or later
APP Supported Photo And Video Recording Yes
APP Supported Battery Capacity Display Yes
PC Software DigiCapture Pro (Customizable)
PC Software Supported Operation Systems Windows 7/8/10 , macOS 11.2.1 or above
PC Software OSD Language There Are 16 Languages Built In The Software
PC Software With Professional Measurement Yes
PC Software Support Four Display Concurrently Yes
PC Software Support Photo,Video Recording,Timed Photo And Timed Video Yes
PC Software Support Plug and Play Yes
Package details Accessories CD, USB cable,replaceable battery,calibration ruler,metal stand,Quick Start Guide
Body Dimension 16.6*4.5*4.0cm
Gross Weight 0.2KG
Gift Box 26*18*8cm
Gross Weight 0.65KG
Carton Box 54.2*37*42cm
Gross Weight 14.5KG
Carton 20Pcs


Product Advantages:

1: WiFi digital microscope with 10x to 200x magnification offers you a wonderful experience of recording a clear microworld and it can meet your daily needs. Microscope includes 8 LED lights provide excellent detail and optimal clarity.

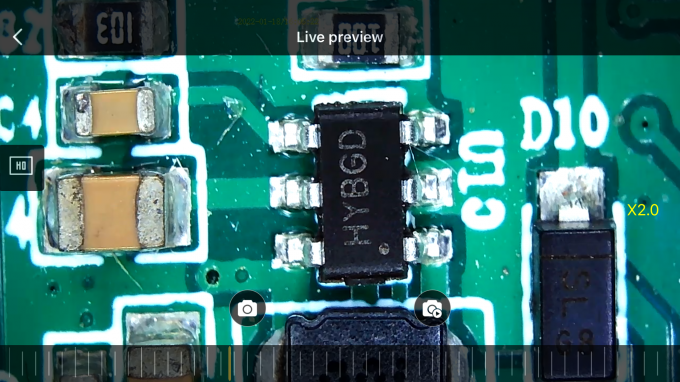

2: This portable microscope is able to capture HD snapshot of the unknown, mysterious places where the human eyes are difficult to see, along with recording a vivid live- video.


Product picture:

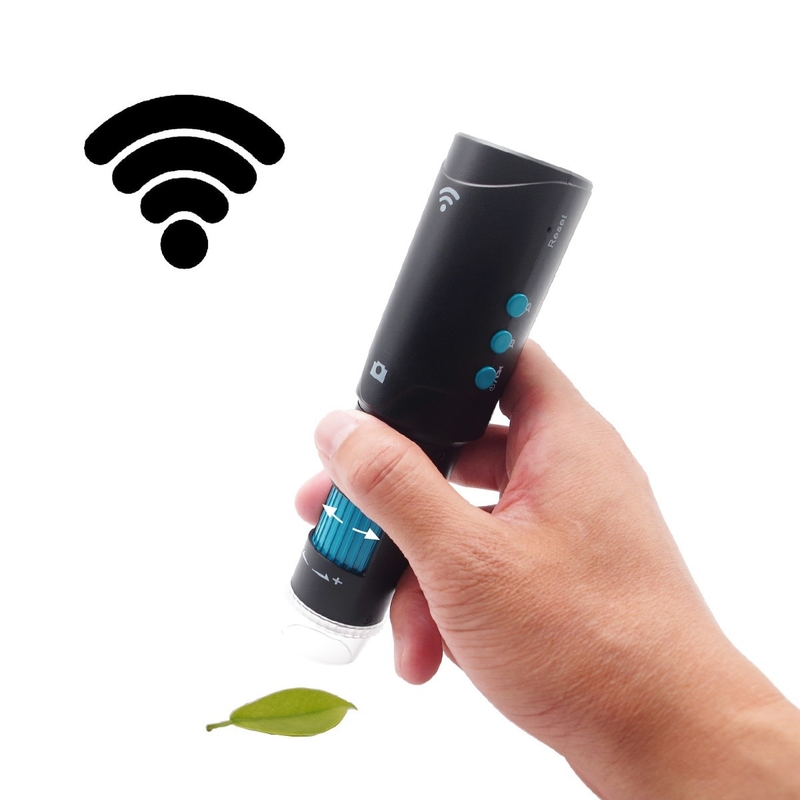

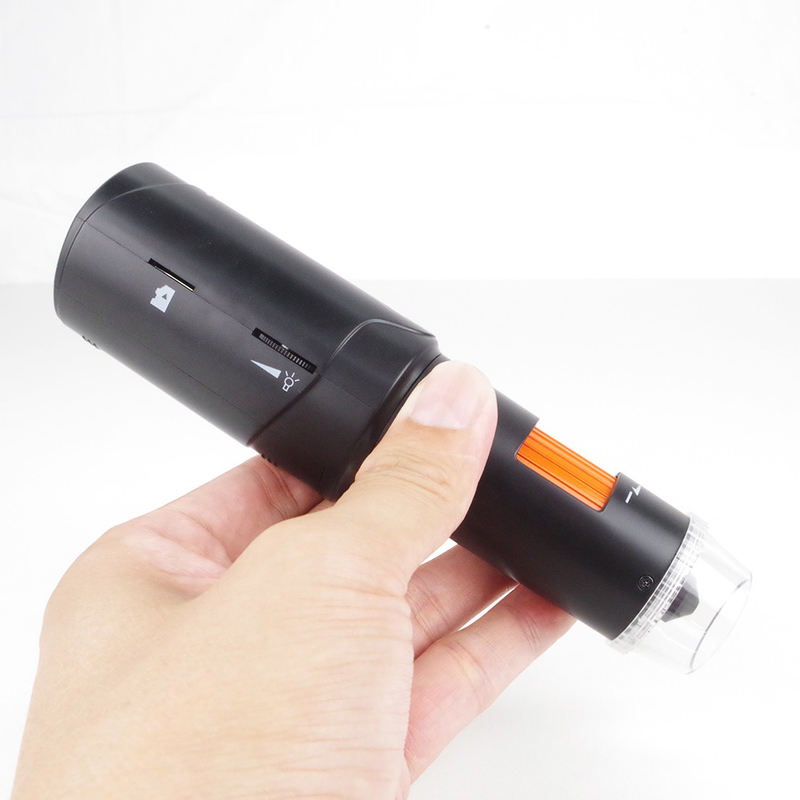

Mini USB Jewelry Microscope Handheld RoHS Digital Microscope With Screen 0



Mini USB Jewelry Microscope Handheld RoHS Digital Microscope With Screen 1
