Place of Origin:
China
Brand Name:
Toproview/Neutral/Customization
Certification:
CE/FCC/RoHS
Model Number:
DM022D(400nm)
Contact Us

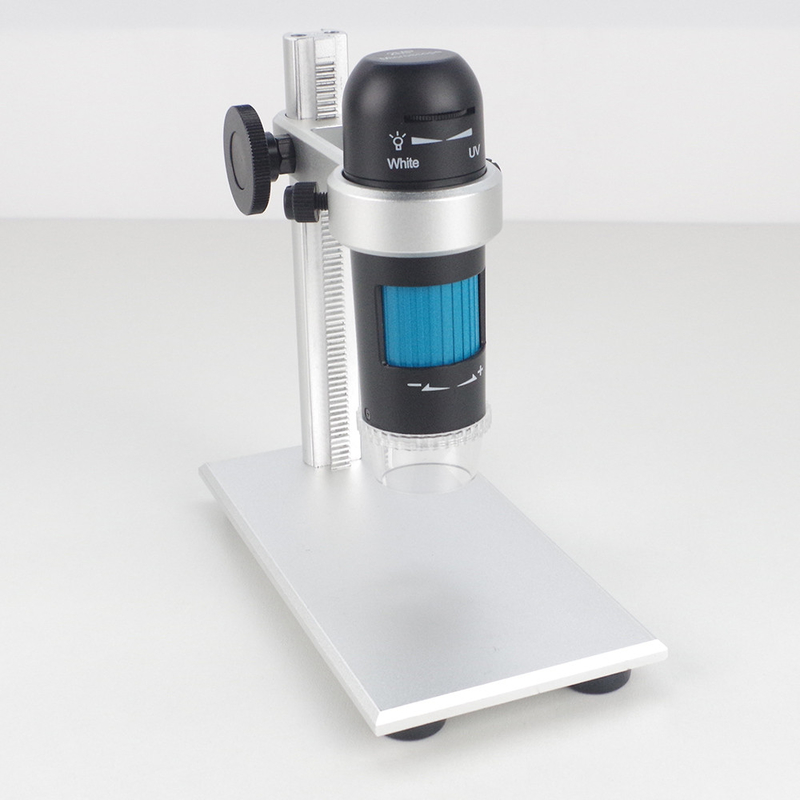

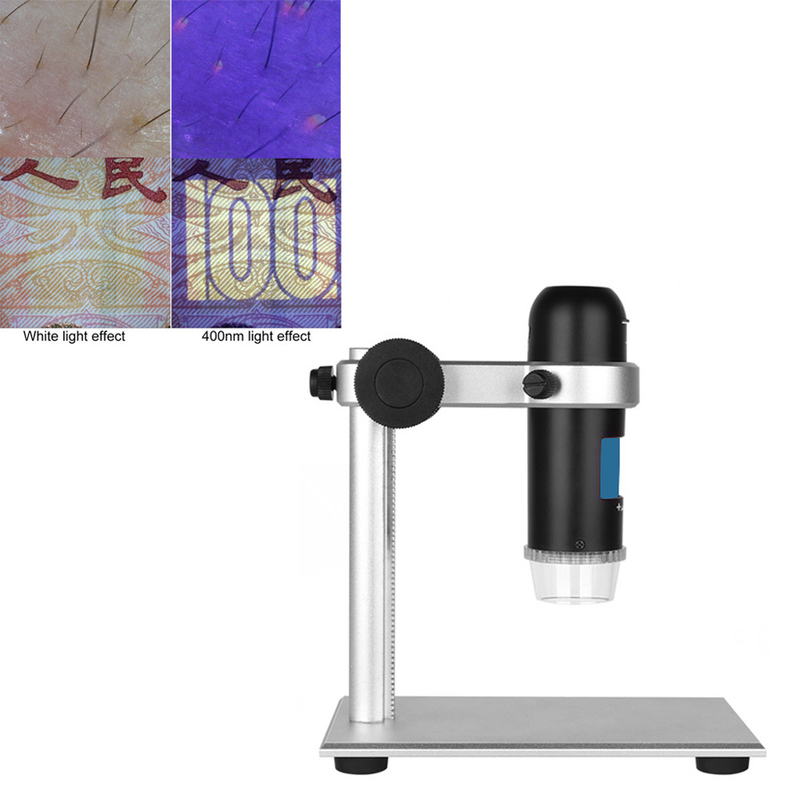

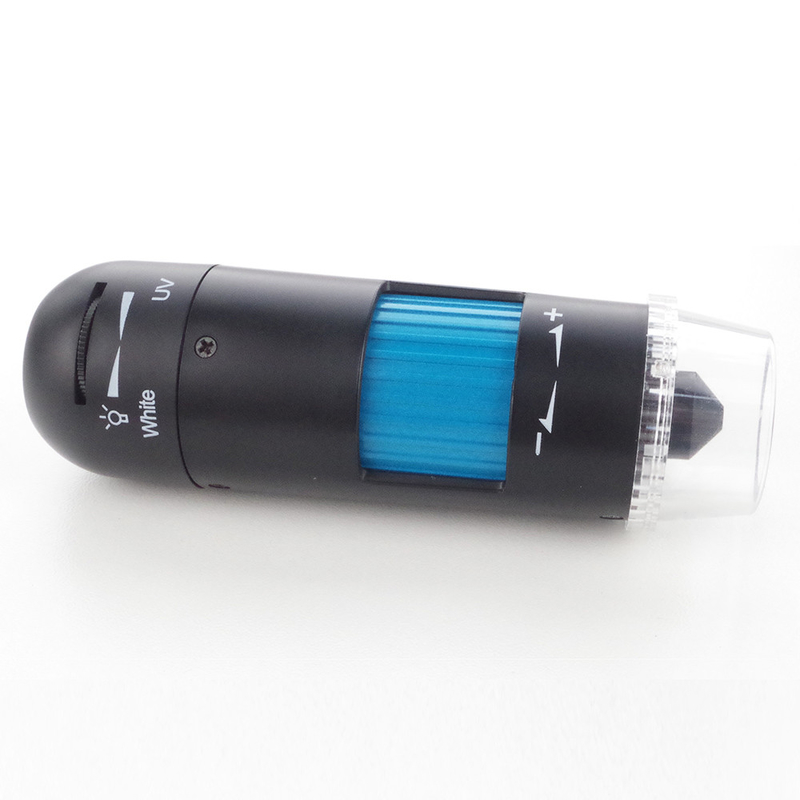

Real 200x Magnification UV Digital Skin Camera Microscope Scalp Analysis Scalp inspection
Quick Details
A digital dermatoscope (also known as dermoscope or microscope) is an essential tool for providing patients with optimized patient care, and high resolution imaging to better track any changes and promoting the early detection of skin cancer and other conditions.
This model is with UV light buitd in, will do the great job espeically for the problem skin like inflammation, blocked hair follicle, precipitated pigment etc.,
Main Features
* With UV light especially useful for skin, hair and scalp analyzer.
* Light source is dimmable LED ring illuminator included with 4 adjustable white LEDs + 4 adjustable UV LEDs (Model name: DM022D UV400nm)
* Optional resolution is from VGA, 720P, 1080P
* Adjustable magnification is from real 10x ~ 200x, normally we consider this magnification based on 21''monitor
* PC Software supports four living windows concurrently, user with special applications can support to use 4 microscope seeing the living at the same time.
PRODUCT SPECIFICATIONS
|
MODEL |
Model Name |
DM022D(400nm) |
|
|
Connection |
USB 2.0 |
|
OPTICS |
Polarizer |
Yes |
|
|
Magnification |
10x~200x |
|
|
Lens type |
Optical glass |
|
|
Focus range |
Manual focus 0~110mm |
|
|
Illumination |
8 adjustable LED(4pcs UV+4pcs white) |
|
SENSOR |
Sensor type |
CMOS |
|
|
Size |
2 megapixel |
|
|
Resolution |
2M pixels (1920*1080) |
|
|
Fr |
30 fps at 2MP output |
|
FEATURES |
Software |
DigiCapture Pro for |
|
|
Measurement function |
Yes |
|
|
Certification |
CE/FCC/RoHS |
|
PHYSICAL |
Dimensions |
18*34*30cm |
|
|
Gross weight |
0.2kg |
|
|
Stand |
Comes with me |
APPLICATIONS
* Skin and hair status confirmation
* Mineral prospections
* Art appreciation and authentication
* Cosmetic effects corroboration
* Laboratory and classroom research
* Field use for agricultural close quality control
* Education and on-site classroom demonstrations.
