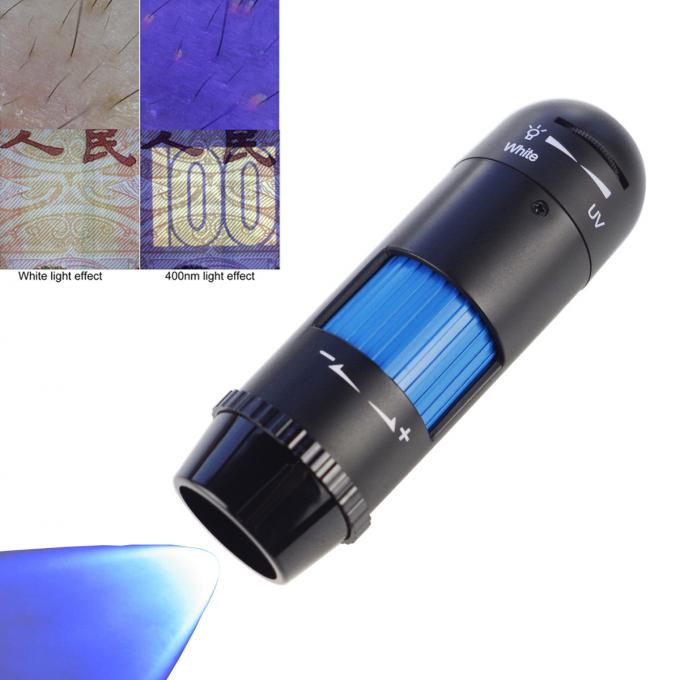

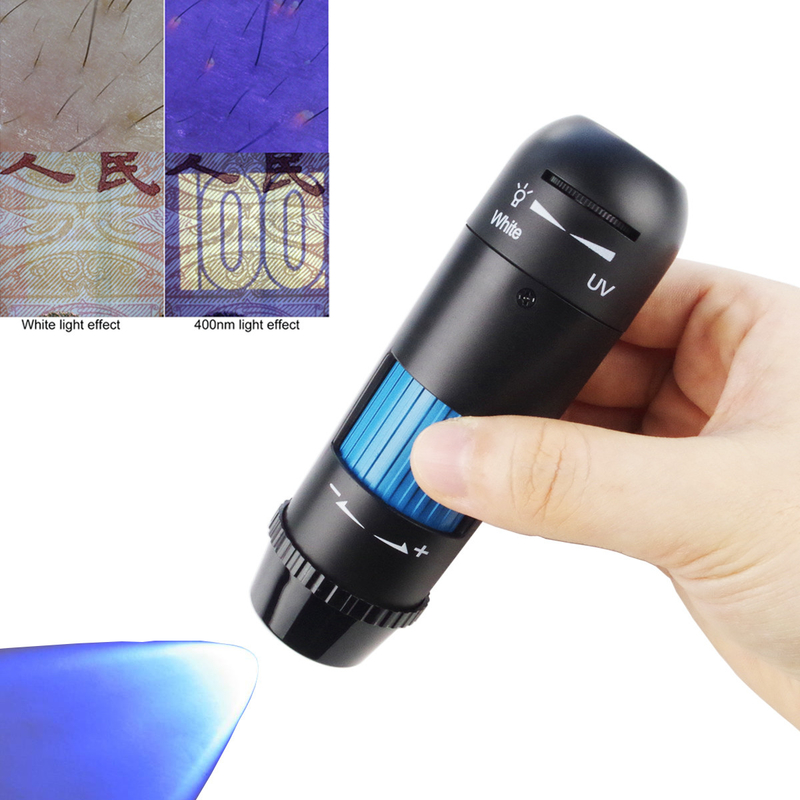

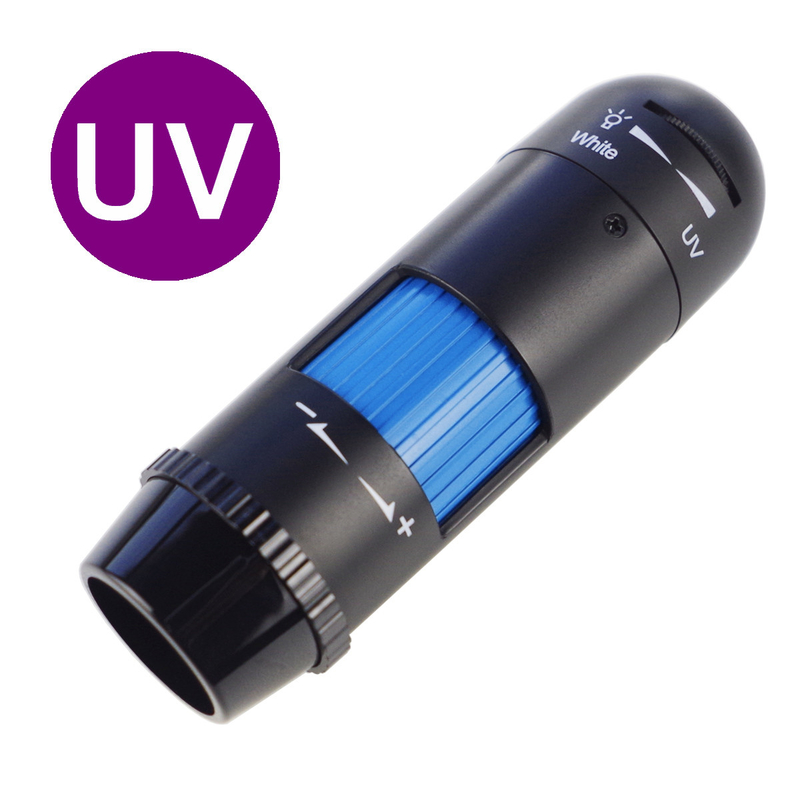

Handheld Skin Scope with Ultraviolet-visible (UV-vis)
Construction Details
Handheld or mounted operation.
Stand with metal rod with adjustable height and rotation.
USB 2.0 cable with an integrated shutter trigger and LED (white/UV) wheel.
Wide application field for UV type digital microscope:
• Skin, hair and scalp inspection
• Crime Investigations
• Graphology
• Mineralogy
• Jewelry and watch repair
• Museums and Restoration
PRODUCT SPECIFICATIONS
|
MODEL |
Model Name |
DM022D(400nm) |
|
|
Connection |
USB 2.0 |
|
OPTICS |
Polarizer |
Yes |
|
|
Magnification |
10x~200x |
|
|
Lens type |
Optical glass |
|
|
Focus range |
Manual focus 0~110mm |
|
|
Illumination |
8 adjustable LED(4pcs UV+4pcs white) |
|
SENSOR |
Sensor type |
CMOS |
|
|
Size |
2 megapixel |
|
|
Resolution |
2M pixels (1920*1080) |
|
|
Fr |
30 fps at 2MP output |
|
FEATURES |
Software |
DigiCapture Pro for |
|
|
Measurement function |
Yes |
|
|
Certification |
CE/FCC/RoHS |
|
PHYSICAL |
Dimensions |
18*34*30cm |
|
|
Gross weight |
0.2kg |
|
|
Stand |
Comes with me |
