Place of Origin:
China
Brand Name:
Toproview/Neutral/Customization
Certification:
CE/FCC/RoHS
Model Number:
DM022D(400nm)
Contact Us
Video

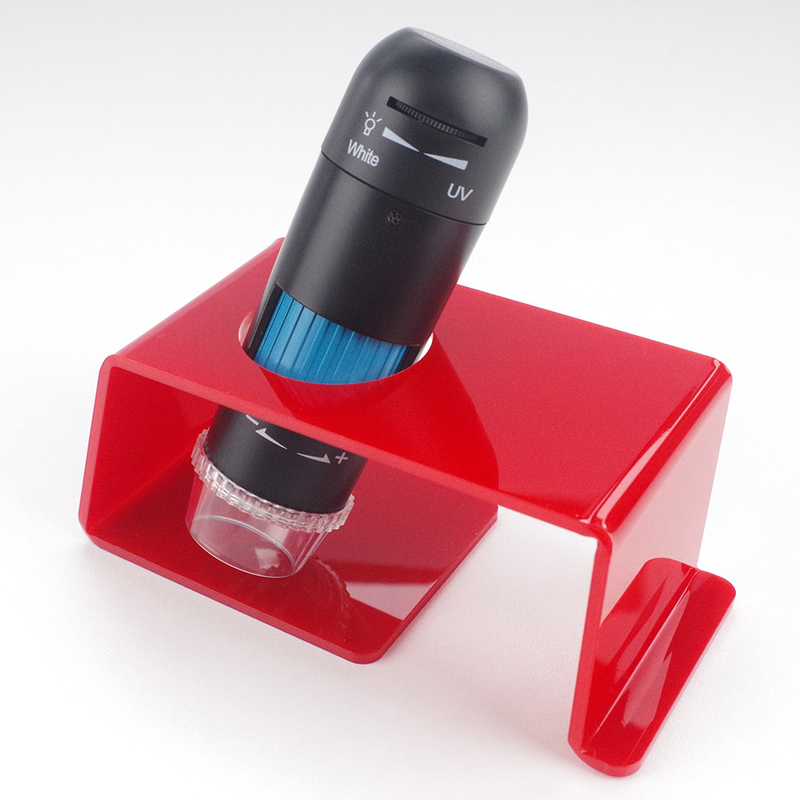

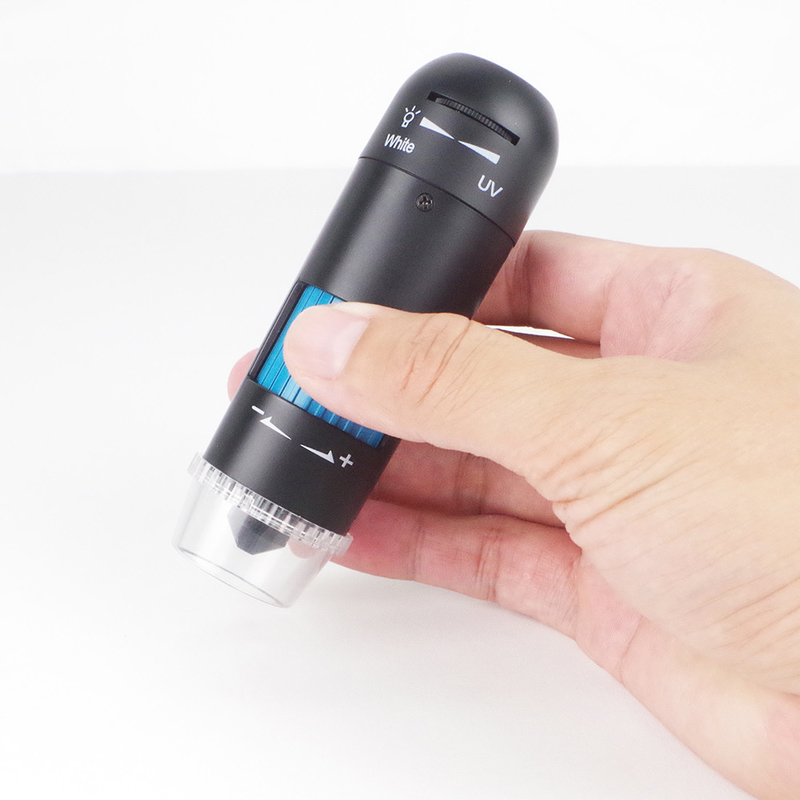

400nm LED UV Digital Microscope USB Compatible with Macbook and Windows Computer
Quick Details
* Model name: DM022D UV400nm with Light source is dimmable LED ring illuminator included with 4 adjustable white LEDs + 4 adjustable UV LEDs.
* With UV lens/light to see the hair follicle is blocked or the pigment precipitates or not.
Model DM022D UV Digital Microscope with real 2MP, 10x-200x, 4 white LEDs, 4 UV LEDs light. With wide usage for scientific and medical applications where UV light is required. From white light to UVlight or from UV light to white light, just to turn the LED dimmer and you will get what you want.
Main Fetures
* Computer software with measurment function.
* 16 languages are available for PC measuring software.

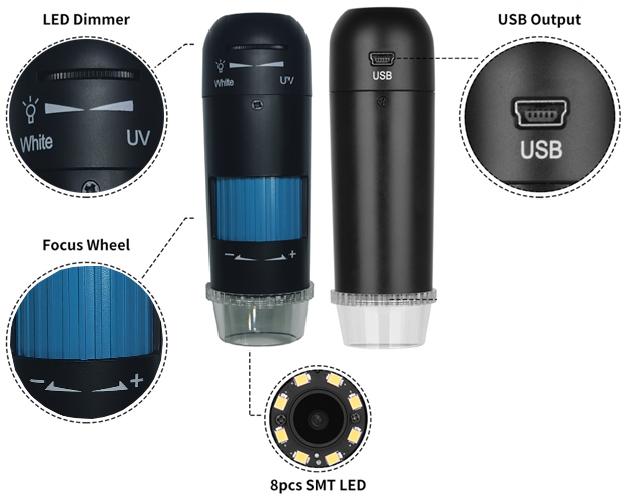

* Light source is dimmable LED ring illuminator included with 4 adjustable white LEDs + 4 adjustable UV LEDs (Model name: DM022D UV400nm)
* Optional resolution is from VGA, 720P, 1080P
* Adjustable magnification is from real 10x ~ 200x, normally we consider this magnification based on 21''monitor.
* Max. Frame up to25fps@2MP, live viewing and recording videos will be super smoothly.
PRODUCT SPECIFICATIONS
|
MODEL |
Model Name |
DM022D(400nm) |
|
|
Connection |
USB 2.0 |
|
OPTICS |
Polarizer |
Yes |
|
|
Magnification |
10x~200x |
|
|
Lens type |
Optical glass |
|
|
Focus range |
Manual focus 0~110mm |
|
|
Illumination |
8 adjustable LED(4pcs UV+4pcs white) |
|
SENSOR |
Sensor type |
CMOS |
|
|
Size |
2 megapixel |
|
|
Resolution |
2M pixels (1920*1080) |
|
|
Fr |
30 fps at 2MP output |
|
FEATURES |
Software |
DigiCapture Pro for |
|
|
Measurement function |
Yes |
|
|
Certification |
CE/FCC/RoHS |
|
PHYSICAL |
Dimensions |
18*34*30cm |
|
|
Gross weight |
0.2kg |
|
|
Stand |
Comes with me |
Applications
Wide application field: Skin dermatoscope hair scalp trichology crime investigations research and scientific analysis education forensics graphology mineralogy etc.,
