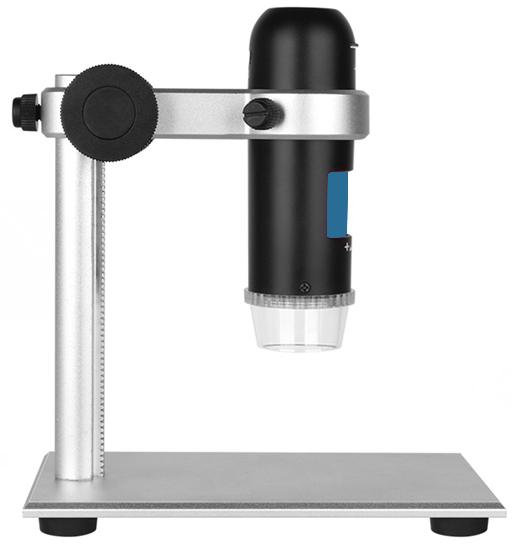

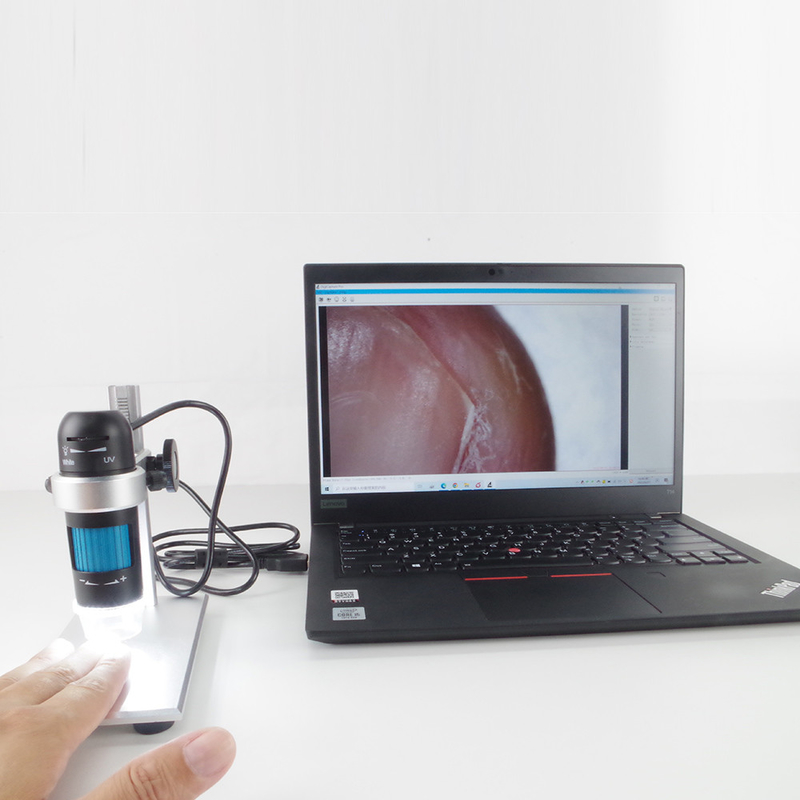

True 200x Magnification USB IR Digital Microscope with 1080P High Resolution for Antique Market
Quick Details
Model DM022D UV/IR Digital Microscope, 2MP, 10x-200x, 4 white LEDs, 4 UV LEDs or 4 IR LEDs light. For scientific and medical applications where UV or IR light is required. From white light to UV/IR light or from UV/IR light to white light, just to turn the LED dimmer and you will get what you want.
The light source of this model is white light+UV light individually, or white light+IR light individually. If there is the requirement of 3 lights(white light+UV light+IR light) together, let us know, we would offer the solution accordingly!
Main Features
* Light source is dimmable LED ring illuminator included with 4 adjustable white LEDs + 4 adjustable IR LEDs (Model name: DM022D IR850nm)
* Optional image and video resolution: 1080P, 720P, VGA
- Up to 200x model
- High detail and smooth live inspections
- Use covers to set up different magnifications
- Ready to use software for measuring.
- Hands free stands available separately
PRODUCT SPECIFICATIONS
|
MODEL |
Model Name |
DM022D(850nm) |
|
|
Connection |
USB 2.0 |
|
OPTICS |
Polarizer |
Yes |
|
|
Magnification |
10x~200x |
|
|
Lens type |
Optical glass |
|
|
Focus range |
Manual focus 0~110mm |
|
|
Illumination |
8 adjustable LED(4pcs IR+4pcs white) |
|
SENSOR |
Sensor type |
CMOS |
|
|
Size |
2 megapixel |
|
|
Resolution |
2M pixels (1920*1080) |
|
|
Fr |
30 fps at 2MP output |
|
FEATURES |
Software |
DigiCapture Pro for |
|
|
Measurement function |
Yes |
|
|
Certification |
CE/FCC/RoHS |
|
PHYSICAL |
Dimensions |
18*34*30cm |
|
|
Gross weight |
0.2kg |
|
|
Stand |
Comes with me |
OEM&ODM Service
We pride ourselves on providing high quality products, unbeatable low prices, huge selections and personalized customer service and looking forward to cooperate with you!
Our high-quality indepent R&D team are with more than 10 years experience in digital microscope field. With the rich experience in electronics circuits, firmware, product design for digital microscope, we could reach most of your requirement in OEM, ODM orders.
Just give us an idea, and we will do the rest for you. All are based on exclusivity term!
