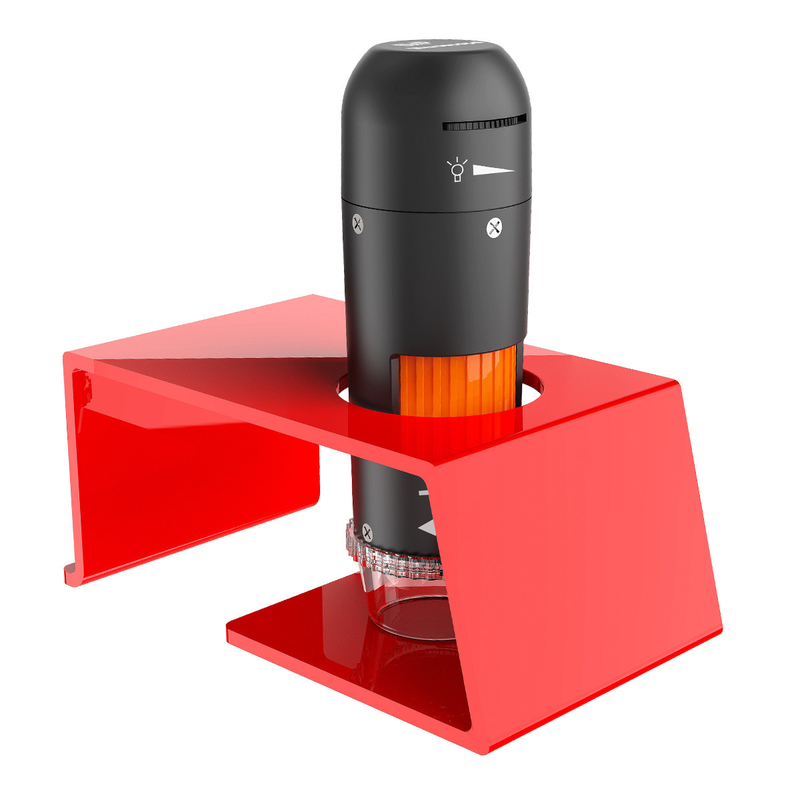

Long Distance 250x Polarizer USB Digital Microscope Handheld 5MP
Quick Details
With polarizer to reduct the reflection, useful for observing objects with shiny surface like metak, diamond, jewelry etc.,
Its 5M image sensor presents vivid and sharp amazing image. 8 LEDs with brightness adjustable are good for any inspection enviornment.
With this unit you may see a unique & “bigger” world. All those excellent features make it a good aid for your daily inspection on tiny objects.
Main Features
* Max frame rate is up to 25fps at 5MP output, user can get the super high quality and smooth viewing and recording.
* Supported operation systems with both Windows 7/8/10, and macOS 10.14 and above. No matter Windows computer/laptop or OS system Macbook are compatible. User can also do some mesuring and remard with the attached PC software.
* PC Software supports four living windows concurrently, user with special applications can support to use 4 microscope seeing the living at the same time.
* PC Software with 16 optional languages can reach most of the uses in the worldwide.
* Light source is the dimmable LED ring illuminator (8pcs SMT White LED).
PRODUCT SPECIFICATIONS
|
MODEL |
Model Name |
DM022C |
|
|
Connection |
USB 2.0 |
|
OPTICS |
Polarizer |
Yes |
|
|
Magnification |
Real 10x~250x(ba |
|
|
Lens type |
Optical glass |
|
|
Focus range |
Manual focus 0~110mm |
|
|
Illumination |
8 adjustable white LED |
|
SENSOR |
Sensor type |
CMOS |
|
|
Size |
5 megapixel |
|
|
Resolution |
2590*1944 |
|
|
Fr |
25 fps at 5MP output; |
|
FEATURES |
Software |
DigiCapture Pro for |
|
|
Measurement function |
Yes |
|
|
Certification |
CE/FCC/RoHS |
|
PHYSICAL |
Dimensions |
18*34*30cm |
|
|
Gross weight |
0.2kg |
|
|
Stand |
Comes with me |
