Place of Origin:
China
Brand Name:
Toproview/Neutral/Customization
Certification:
CE/FCC/RoHS
Model Number:
DM022C
Contact Us
Video

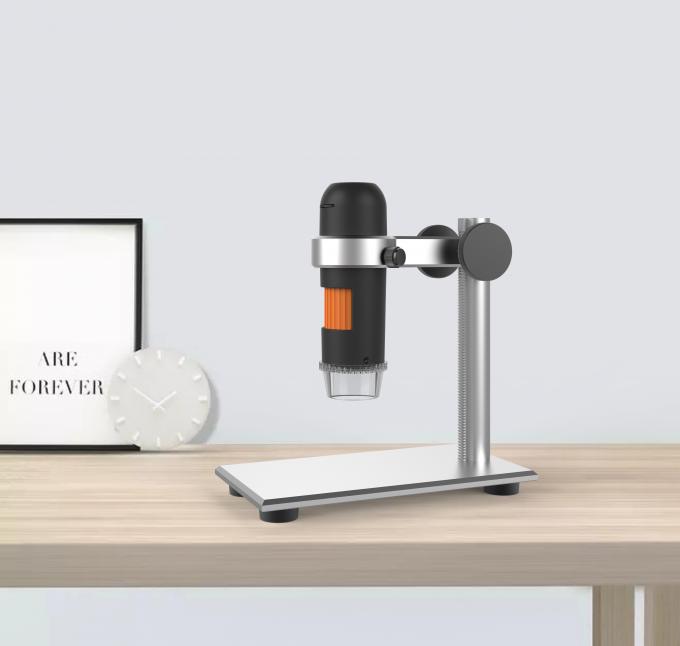

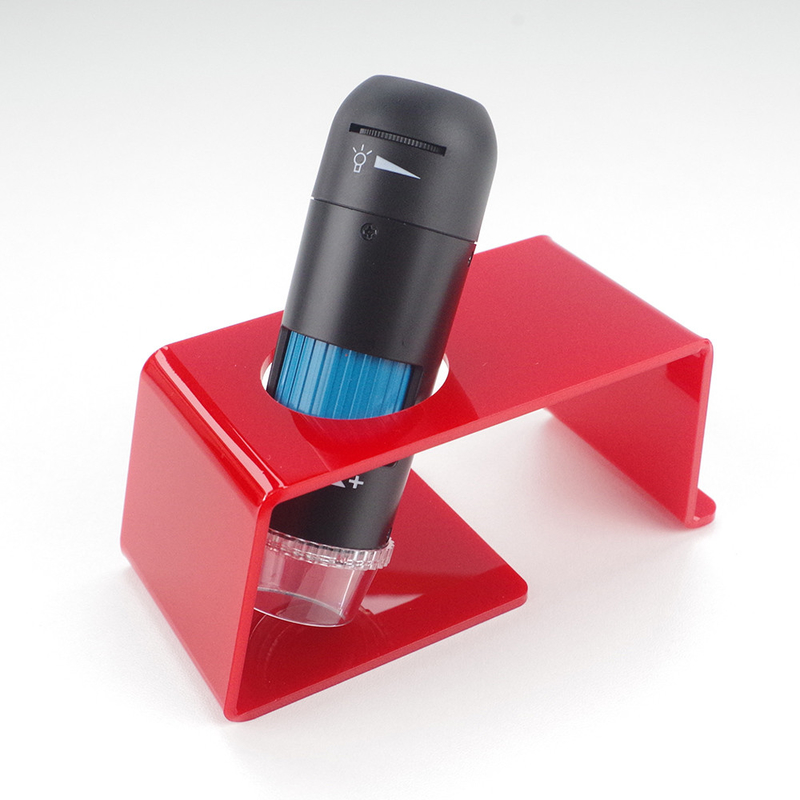

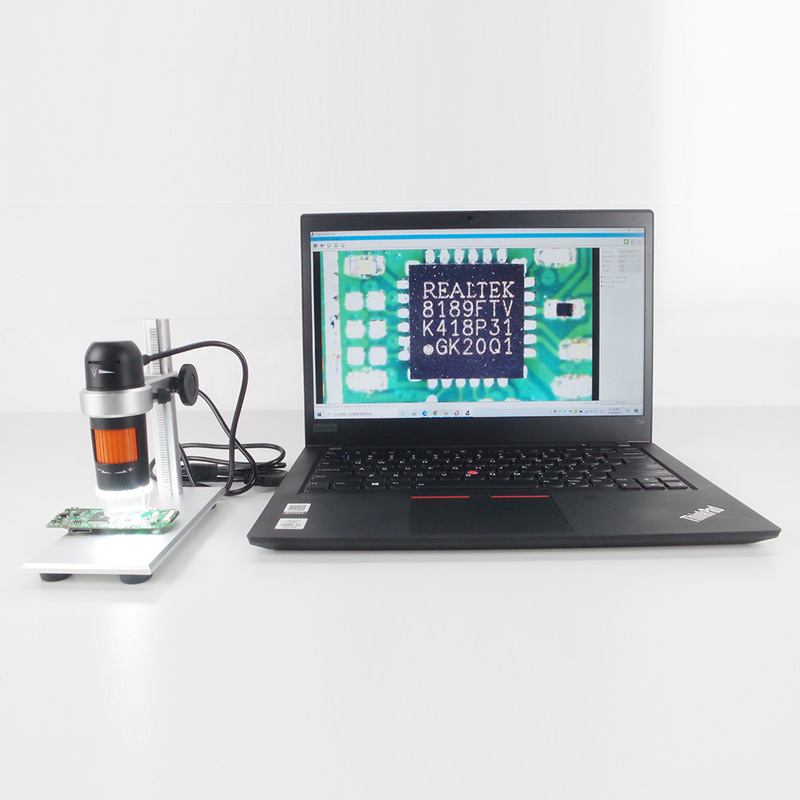

5MP Polarizer USB Digital Microscope with Measurement Function Real 250x
Quick Details
With both 5MP resolution and polarizer filter in the same product, users will get the incredible high quality mutifunctional USB microscope for the wide applications.
With this unit you may see a unique & “bigger” world. All those excellent features make it a good aid for your daily inspection on tiny objects.
Main Features
* PC Software with 16 optional languages can reach most of the uses in the worldwide.
* Light source is the dimmable LED ring illuminator (8pcs SMT White LED).
* Max frame rate is up to 25fps at 5MP output, user can get the super high quality and smooth viewing and recording.
* Image sensor is the high resolution 5M pixels; with real 250x magnification but not interpolation.
PRODUCT SPECIFICATIONS
|
MODEL |
Model Name |
DM022C |
|
|
Connection |
USB 2.0 |
|
OPTICS |
Polarizer |
Yes |
|
|
Magnification |
Real 10x~250x(ba |
|
|
Lens type |
Optical glass |
|
|
Focus range |
Manual focus 0~110mm |
|
|
Illumination |
8 adjustable white LED |
|
SENSOR |
Sensor type |
CMOS |
|
|
Size |
5 megapixel |
|
|
Resolution |
2590*1944 |
|
|
Fr |
25 fps at 5MP output; |
|
FEATURES |
Software |
DigiCapture Pro for |
|
|
Measurement function |
Yes |
|
|
Certification |
CE/FCC/RoHS |
|
PHYSICAL |
Dimensions |
18*34*30cm |
|
|
Gross weight |
0.2kg |
|
|
Stand |
Comes with me |
FAQ
Q: Can you accept OEM or ODM?
A: Yes, OEMand ODM are welcome. We have the fully ability to customize any design, shape and size as per customer’s specific requirements.
Q: What certificate do you have?
A: For all products we supply CE, FCC, RoHs.
Q:How could I get samples?
A: We support sample test before bulk order, contact me for more details just now!
