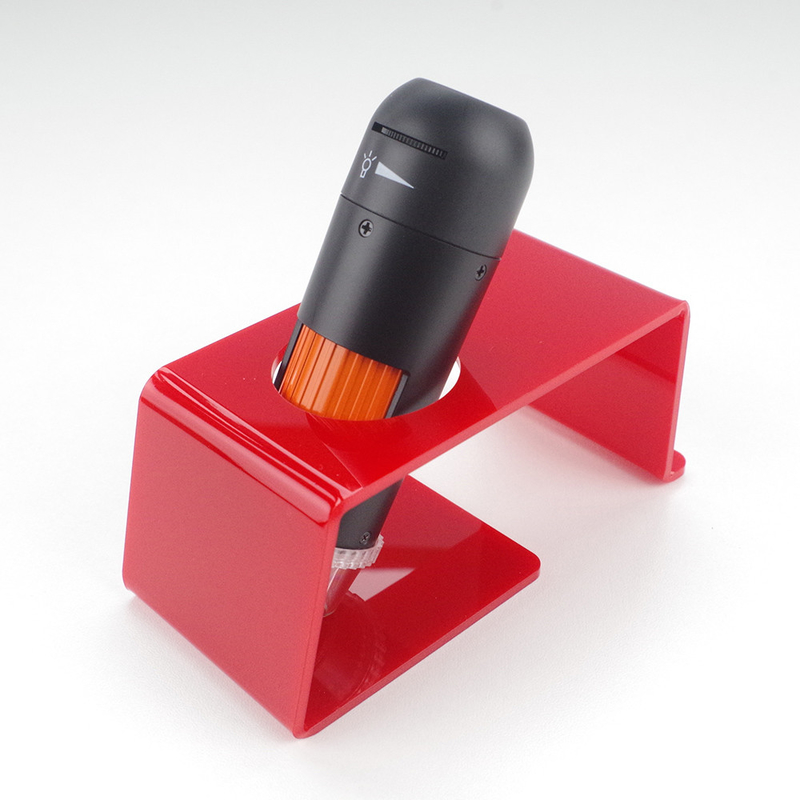

Real 250x 5.0MP USB Digital Microscope Compatible on Both Windows and macOS PC
Quick Details
True 5MP sensor to capture and save high-resolution images and videos of your specimens.
Simply by rotating the polarizer filter, the handheld digital microscope could amazingly decrease the reflection glare to almost any extent, and could thus help the user see through the surface of fully or partially transparent materials, such as jewelry, skin, glass, and plastic, or see clearly the high reflectivity materials, such as metal or soldering.
Main Features
With polarizer to reduct the reflection, useful for observing objects with shiny surface like metak, diamond, jewelry etc.,
* Max frame rate is up to 25fps at 5MP output, user can get the super high quality and smooth viewing and recording.
* Image sensor is the high resolution 5M pixels (2592*1944), CMOS Image Sensor.
* Supported operation systems with both Windows 7/8/10, and macOS 10.14 and above. No matter Windows computer/laptop or OS system Macbook are compatible. User can also do some mesuring and remard with the attached PC software.
PRODUCT SPECIFICATIONS
|
MODEL |
Model Name |
DM022C |
|
|
Connection |
USB 2.0 |
|
OPTICS |
Polarizer |
Yes |
|
|
Magnification |
Real 10x~250x(ba |
|
|
Lens type |
Optical glass |
|
|
Focus range |
Manual focus 0~110mm |
|
|
Illumination |
8 adjustable white LED |
|
SENSOR |
Sensor type |
CMOS |
|
|
Size |
5 megapixel |
|
|
Resolution |
2590*1944 |
|
|
Fr |
25 fps at 5MP output; |
|
FEATURES |
Software |
DigiCapture Pro for |
|
|
Measurement function |
Yes |
|
|
Certification |
CE/FCC/RoHS |
|
PHYSICAL |
Dimensions |
18*34*30cm |
|
|
Gross weight |
0.2kg |
|
|
Stand |
Comes with me |
FAQ
Q: Can you accept OEM or ODM?
A: Yes, OEMand ODM are welcome. We have the fully ability to customize any design, shape and size as per customer’s specific requirements.
Q: What certificate do you have?
A: For all products we supply CE, FCC, RoHs.
Q:How could I get samples?
A: We support sample test before bulk order, contact me for more details just now!
