250X USB Portable Digital Microscope For Iphone PCB Repair Soldering 5MP

Product Details:
Place of Origin: Shenzhen , China
Brand Name: Neutral / Customization
Certification: CE / FCC / RoHS
Model Number: DM022C
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Neutral / Customization Giftbox / 16pcs per carton
Delivery Time: 6~36 working days
Payment Terms: L/C, T/T, Western Union, D/A, D/P
Supply Ability: 60000pcs/month
  • Detail Information
  • Product Description

Detail Information

Model Name: DM022C Polarizer: Yes
Sensor: 5 Megapixel CMOS Image Sensor Frame Rate: 25 Fps
PC Software Support Plug And Play: Yes PC Software Support Photo,Video Recording,Timed Photo And Timed Video: Yes
High Light:

250X USB Portable Digital Microscope

,

250X Digital Microscope For Iphone

,

5MP USB Portable Digital Microscope

Product Description

250X Handheld USB Portable Digital Microscope For PCB Repair Soldering Coin Collection



1: True 5MP sensor to capture and save high-resolution images and videos of your specimens.

2: The microscope comes with special software allowing you to edit created files and perform precise measurements of linear sizes, radiuses and angles with an accuracy of 1 micrometer or better.



Product Specification:

Model Model Name DM022C
Features Connection USB 2.0 to PC
Image Sensor 5 Megapixel 1/3.2" CMOS Image Sensor
Photo And Video Resolution 5MP / 4MP / 3MP / 2MP / 1.3MP
Magnification Ratio Real 10x~250x(Based On 21 inch Display)
Max.Frame Rate 25 fps at 5MP Output
Light Source 8Pcs SMT White LED
LED Brightness Adjustable Yes
Focus Range From 0mm to 55mm on metal stand
Lens Type Optical Glass
Advantage Switchable Polarizer Yes
Brand Name Toproview / Neutral / Customization
Customized Support OEM / ODM / OBM
Certification CE / FCC / RoHS
Focus Mode Manual Continuous Focus
Warranty 1 Year
Software PC Software DigiCapture Pro (Customizable)
PC Software Supported Operation Systems Windows 7 / 8 / 10 , macOS 11.2.1 or above
PC Software OSD Language There Are 16 Languages Built In The Software
PC Software With Professional Measurement Yes
PC Software Support Four Display Concurrently Yes
PC Software Support Photo,Video Recording,Timed Photo And Timed Video Yes
PC Software Support Plug and Play Yes
Package details Accessories CD, USB cable,calibration ruler,metal stand
Body Dimension 110x35x25mm
Gross Weight 0.06KG
Gift Box 22*16*9cm
Gross Weight 0.6KG
Carton Box 46.5*33*37.5cm
Gross Weight 10.5KG
Carton 16Pcs



Product Advantages:

1: The Handheld Digital Microscope is Mac and Windows OS compatible making saving and sharing videos and still images easy.

2: PC software is compatible with Windows and Mac operating systems and allows for capturing still images, video and time lapse videos.

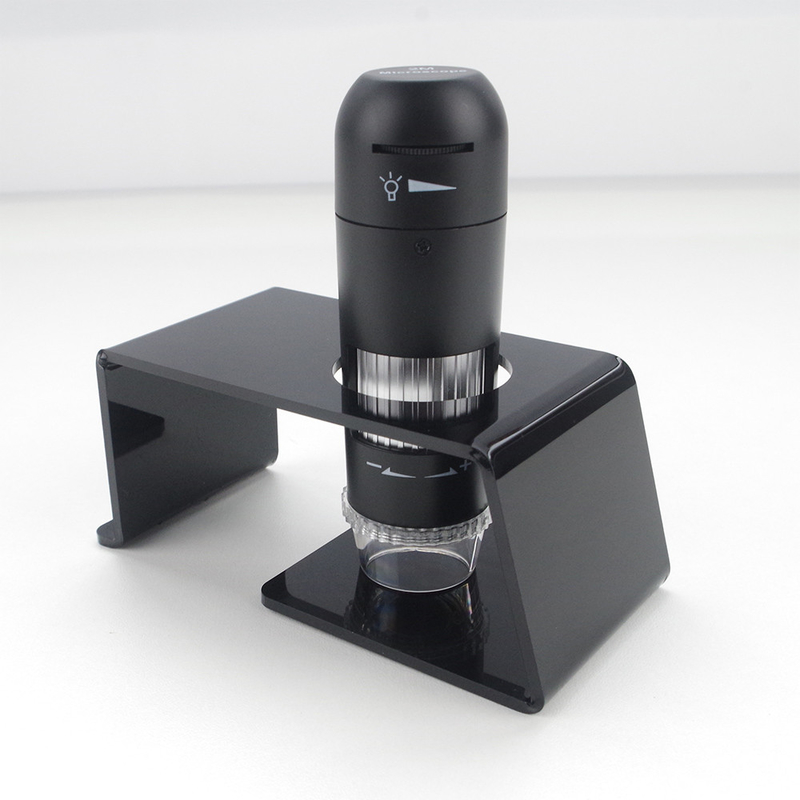

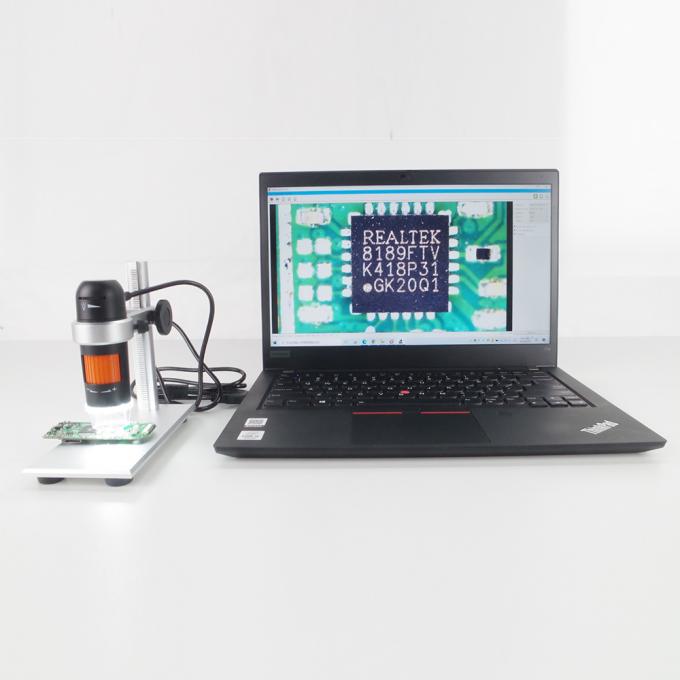

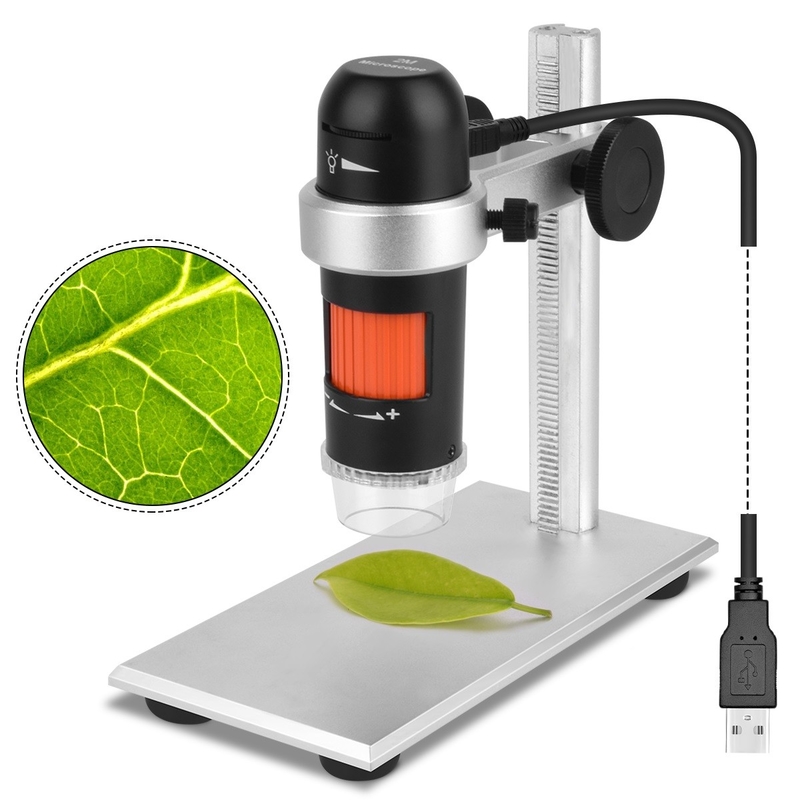

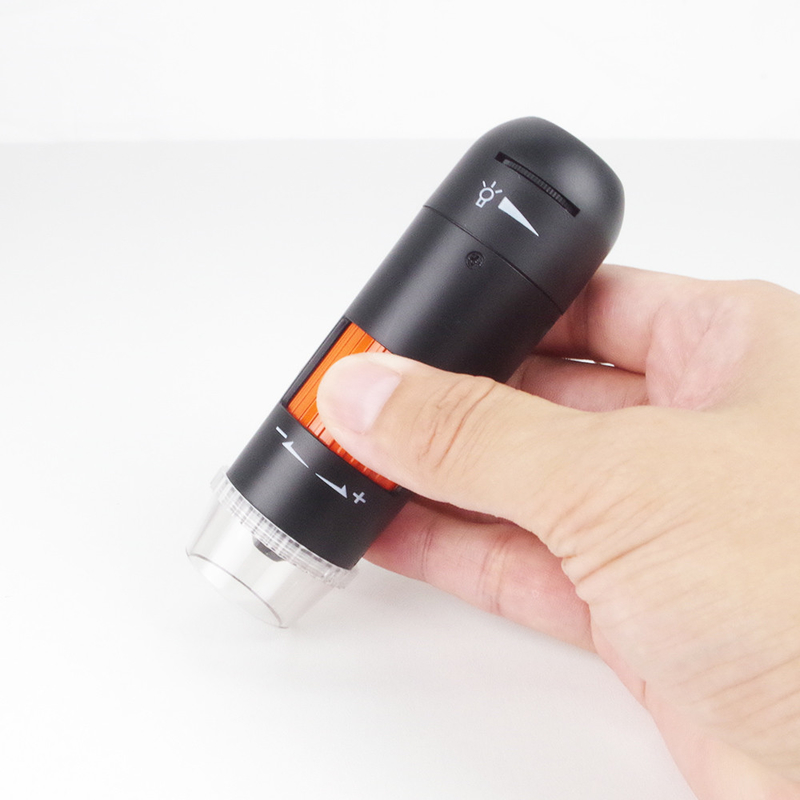

Product picture:
