Shenzhen Toproview Technology Co., Ltd

Polarizer Mini Usb Microscope WIFI 2MP

Product Details:
Place of Origin: Shenzhen , China
Brand Name: Neutral / Customization
Certification: CE / FCC / RoHS
Model Number: DM023A
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Neutral / Customization Giftbox / 20pcs per carton
Delivery Time: 6~36 working days
Payment Terms: L/C, T/T, Western Union, D/A, D/P
Supply Ability: 60000pcs/month
  • Detail Information
  • Product Description

Detail Information

Model Name: DM023A Polarizer: Yes
Photo And Video Resolution: 1920*1088 / 1280*720 / 864*480 Max.Frame Rate: 25 Fps At 2MP Output
SD Card Slot: Support SD Card Storage Up To 32G (Not Included In The Neutral Package) Warranty: 1 Year
High Light:

Polarizer Mini Usb Microscope


Mini Usb Microscope WIFI 2MP


WIFI 2MP Portable Digital Microscope

Product Description

WIFI Portable Digital Microscope With Polarizer For Observations Of Any Surfaces , Both At Home And Outside


1: Images and videos are saved to a memory card (purchased separately). The image quality is high: you get up to 2Mpx images and Full HD videos.

2: The microscope can be powered by a built-in battery, so it can be used away from a power outlet. The battery allows for up to 2.5 hours of standalone work.


Product Specification:

Model Model Name DM023A
Features Connection WiFi to Smart Devices / USB 2.0 to PC
Image Sensor 2 Megapixel CMOS
Photo And Video Resolution 1920*1088 / 1280*720 / 864*480
Magnification Ratio Real 10x~200x(Based On 24 inch Display)
Max.Frame Rate 25 fps at 2MP Output
Light Source 8Pcs SMT White LED
LED Brightness Adjustable Yes
Focus Range From 0mm to 110mm
Lens Type Optical Glass
Brand Name Toproview / Neutral / Customization
Customized Support OEM / ODM / OBM
Certification CE / FCC / RoHS
Advantage Switchable Polarizer Yes
Capture Microtouch On Microscope Yes
Recording Button On Microscope Yes
Digital Zoom Button On Microscope Yes
Rechargeable And Replaceable Battery 2000mAh 18650 Lithium-Ion
Battery Working Time Continue working for 2.5 hours
Charging Time 2.5hrs (When WiFi Digital Microscope Power Off)
SD Card Slot Support SD Card Storage Up To 32G (Not Included In The Neutral Package)
Warranty 1 Year
Software APP for Smart Devices Topscope Pro (Customizable)
APP Supported Operation Systems iOS 12.0 or later, Android 4.2 or later
APP Supported Photo And Video Recording Yes
APP Supported Battery Capacity Display Yes
PC Software DigiCapture Pro (Customizable)
PC Software Supported Operation Systems Windows 7/8/10 , macOS 11.2.1 or above
PC Software OSD Language There Are 16 Languages Built In The Software
PC Software With Professional Measurement Yes
PC Software Support Four Display Concurrently Yes
PC Software Support Photo,Video Recording,Timed Photo And Timed Video Yes
PC Software Support Plug and Play Yes
Package details Accessories CD, USB cable,replaceable battery,calibration ruler,metal stand,Quick Start Guide
Body Dimension 16.6*4.5*4.0cm
Gross Weight 0.2KG
Gift Box 26*18*8cm
Gross Weight 0.65KG
Carton Box 54.2*37*42cm
Gross Weight 14.5KG
Carton 20Pcs


Product Advantages:

1: The built-in rechargeable battery allows for using the microscope away from a power outlet, making it portable and available for use both indoors and outdoors.

2: You can use the microscope to study anything: ready-to-use microscope slides, stones, fabrics, insects, leaves, electronics, and small mechanisms.


Product picture:

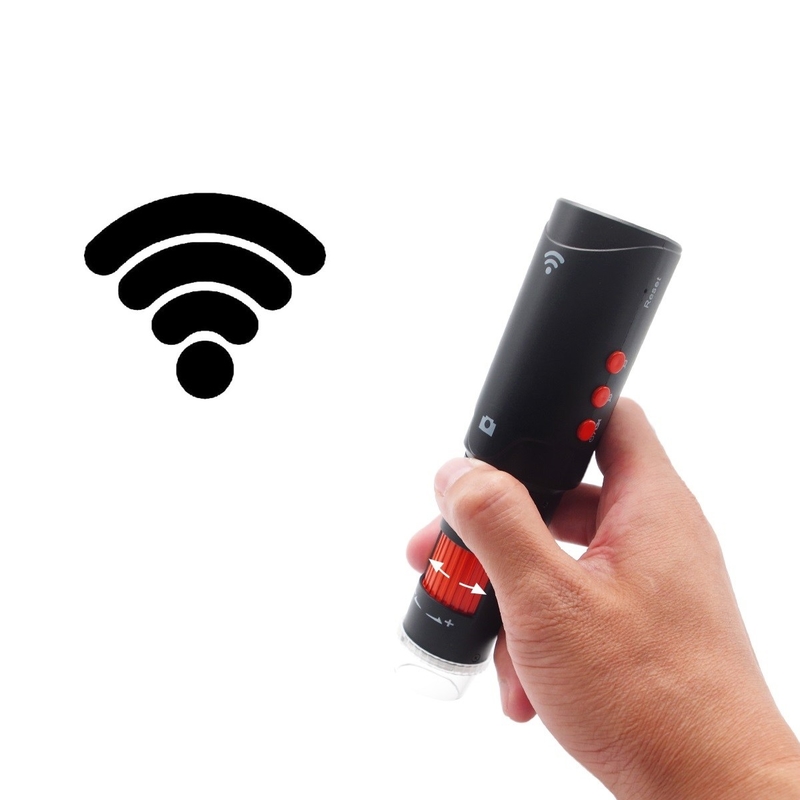

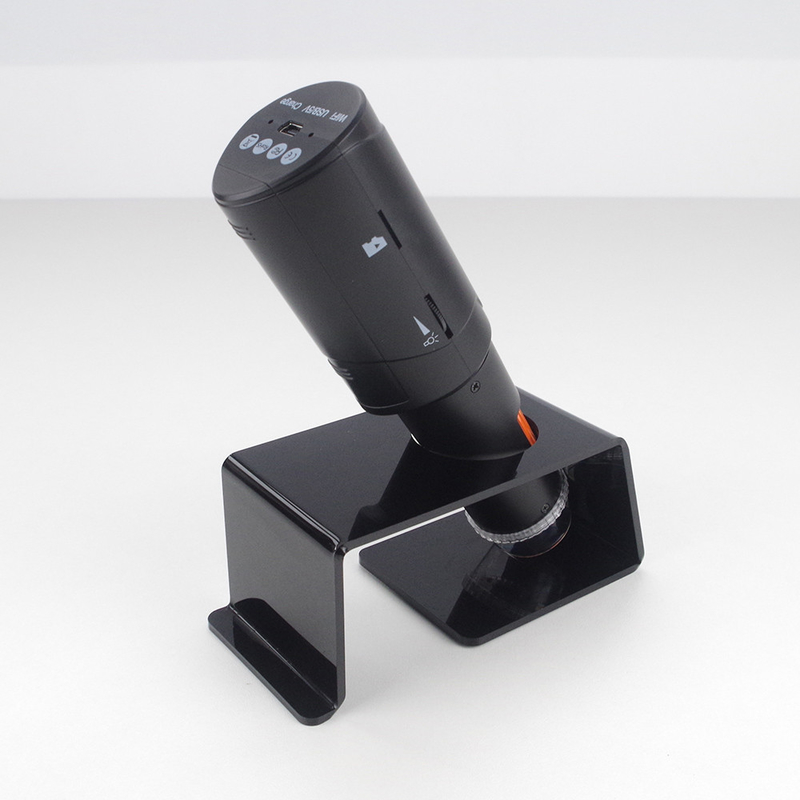

Polarizer Mini Usb Microscope WIFI 2MP 0

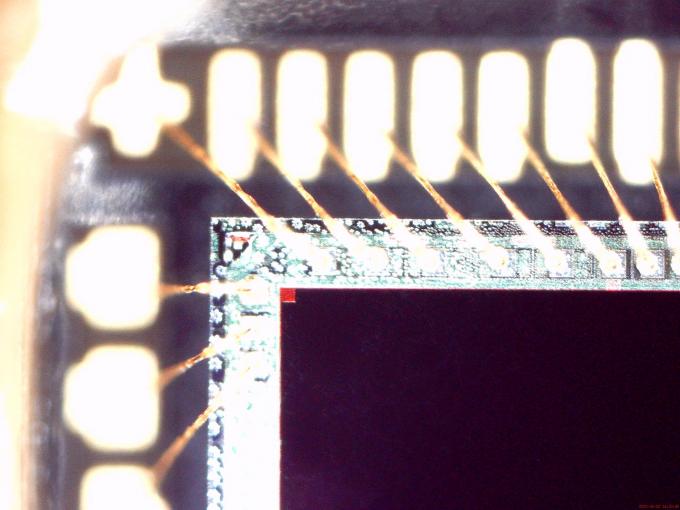

                                                    Before Polarizer Adjustment


Polarizer Mini Usb Microscope WIFI 2MP 1

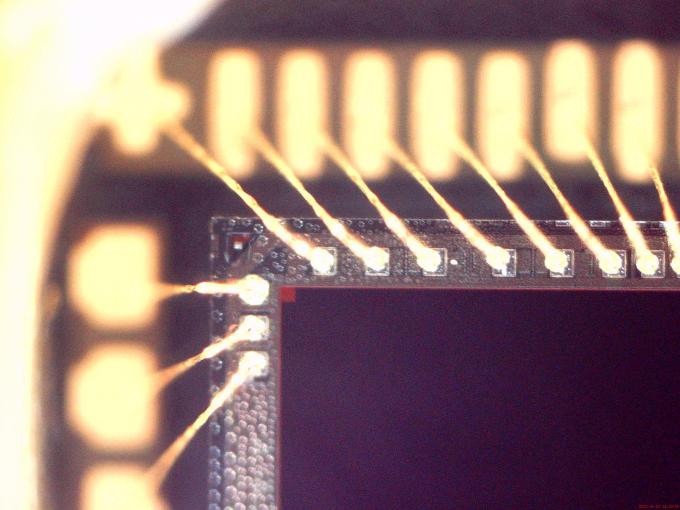

                                                       After Polarizer Adjustment

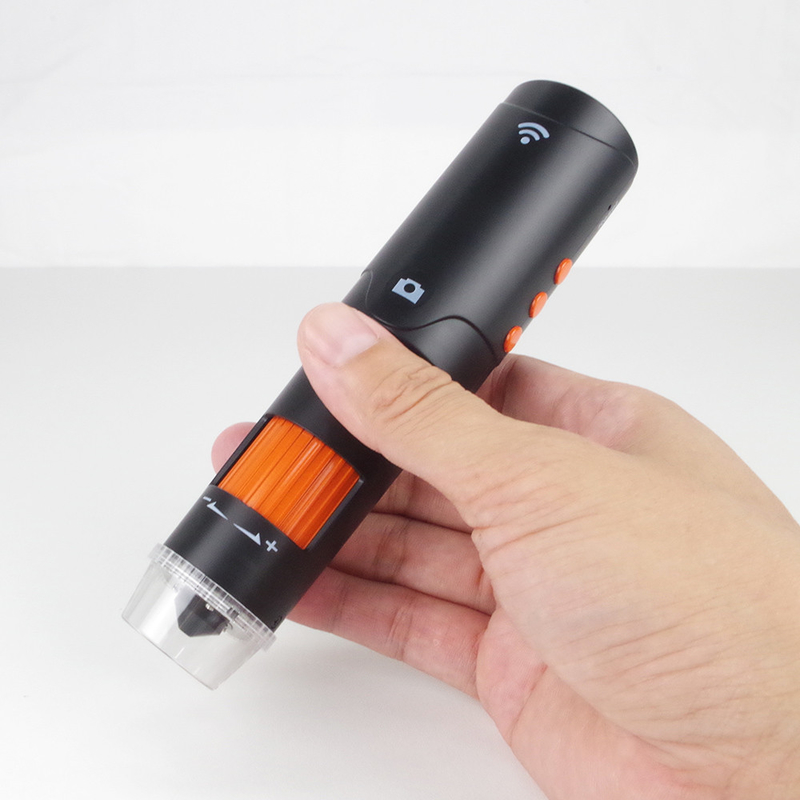

Polarizer Mini Usb Microscope WIFI 2MP 2
