Handheld OEM Portable Digital Microscope For Computer USB 2.0 Polarizer

Handheld OEM Portable Digital Microscope For Computer USB 2.0 Polarizer

Handheld OEM Portable Digital Microscope

Digital Microscope For Computer USB 2.0

Polarizer Digital Microscope For Computer

Place of Origin:

China

Brand Name:

Toproview/Neutral/Customization

Certification:

CE/FCC/RoHS

Model Number:

DM022C

Contact Us

Request A Quote
Product Details
Polarizer Built-in:
Yes
Magnification On 21''monitor:
Real 10x~250x
Max. Frame:
25fps@5MP
Light Source:
8 LED (adjustable By Control Wheel)
Color:
Black
Name:
Digital Usb Microscope
Anti-shake:
Yes
Port:
USB 2.0
Payment & Shipping Terms
Minimum Order Quantity
100pcs
Price
$45~$70/pc
Packaging Details
Neutral/Customization Giftbox/16pcs per carton
Delivery Time
5~35 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
50000pcs/month
Product Description



Real 5MP Polarizer Handhled Digital Microscope OEM supported



PRODUCT DESCRIPTION

Main Features

5M image sensor

With Polarizer scroll to anti reflective light

Compatible with Windows and Mac

With Measurement function



Quick Details

DM022 Series models are the polarizer type USB microscopes that with different and optional resolution, magnification from 0.3MP to 5MP, 10x to 250x. Through USB connection to Windows and Mac computers or laptops. With Toproview PC software “DigiCapture Pro” you can capture, store images and videos and take measurements. The built-in adjustable polarizer allows to freely remove the unwanted reflection or glare from the object surface for a better contrast.

PRODUCT SPECIFICATION

MODEL

Model Name

DM022C



Connection

USB 2.0

OPTICS

Polarizer

Yes



Magnification

Real 10x~250x(based on 21 inch Display)



Lens type

Optical glass



Focus range

Manual focus 0~110mm



Illumination

8 adjustable white LED

SENSOR

Sensor type

CMOS



Size

5 megapixel



Resolution

2590*1944



Frame rate

25 fps at 5MP output;
35 fps at 2MP output

FEATURES

Software

DigiCapture Pro for
Windows/MacOS



Measurement function

Yes



Certification

CE/FCC/RoHS

PHYSICAL

Dimensions

18*34*30cm



Gross weight

0.2kg

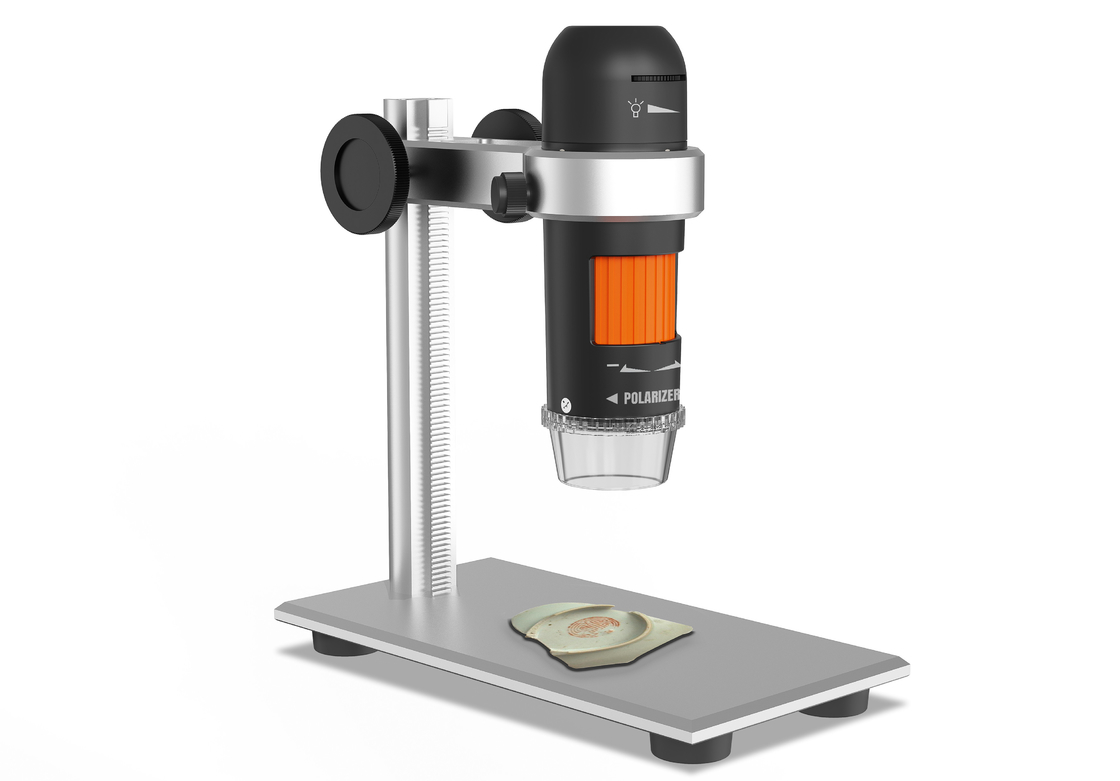

Stand

Comes with metal stand

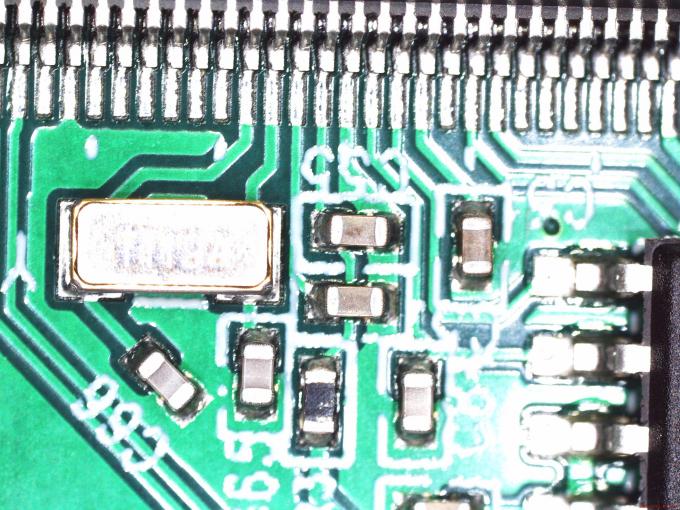

After polarizing

Handheld OEM Portable Digital Microscope For Computer USB 2.0 Polarizer 0

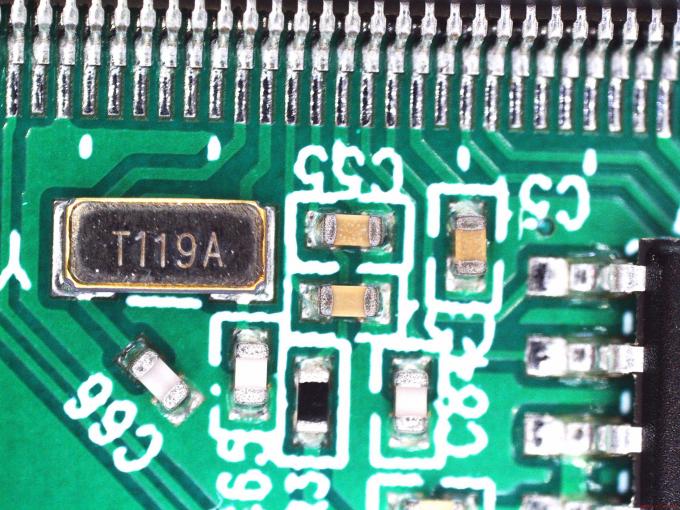

Before polarizing

Handheld OEM Portable Digital Microscope For Computer USB 2.0 Polarizer 1

PACKING METHOD

Neutral product with colorful giftbox, 16pcs per carton.

According to export standard packing.

Packing way with customization availble.



APPLICATIONS

• Industrial and Electronic Inspection

• Skin | Dermatoscope

• Hair | Scalp | Trichology

• Research & Scientific Analysis

• Education | Forensics

• Textile Inspection | Print Inspection

• Collectibles | Jewelry & Watch Repair
