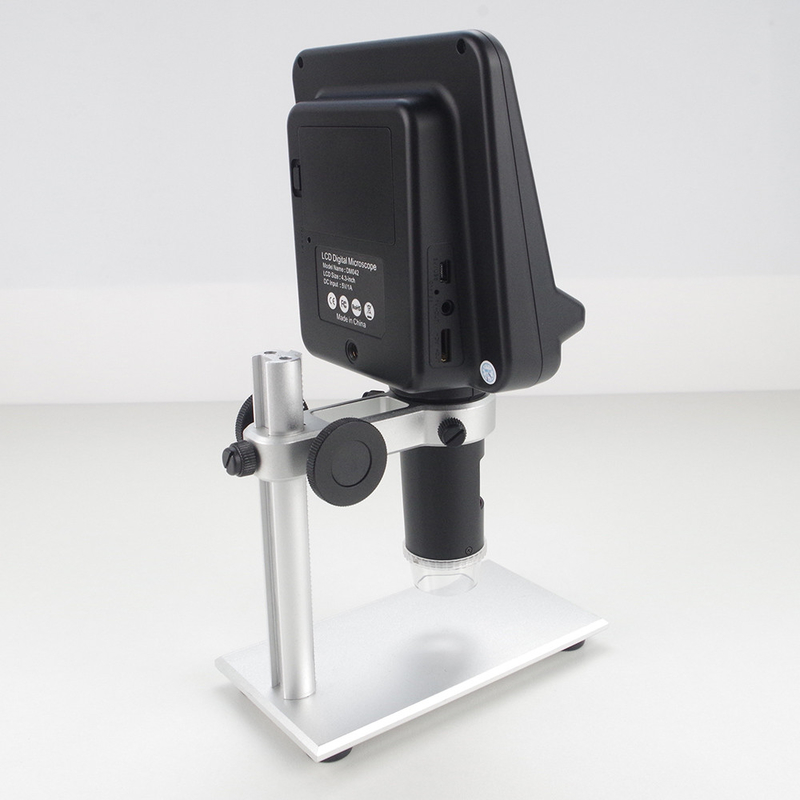

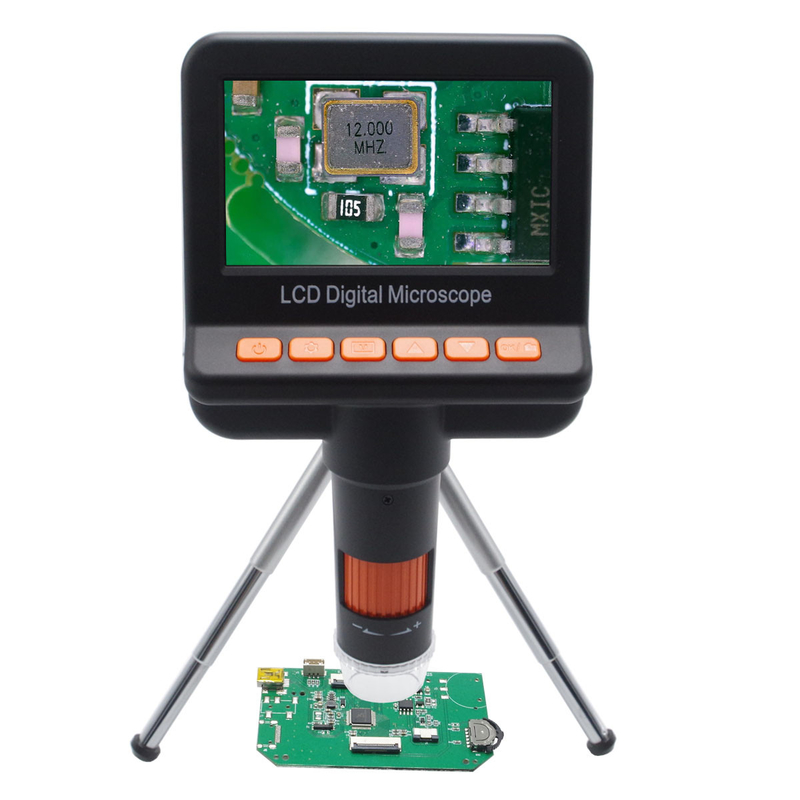

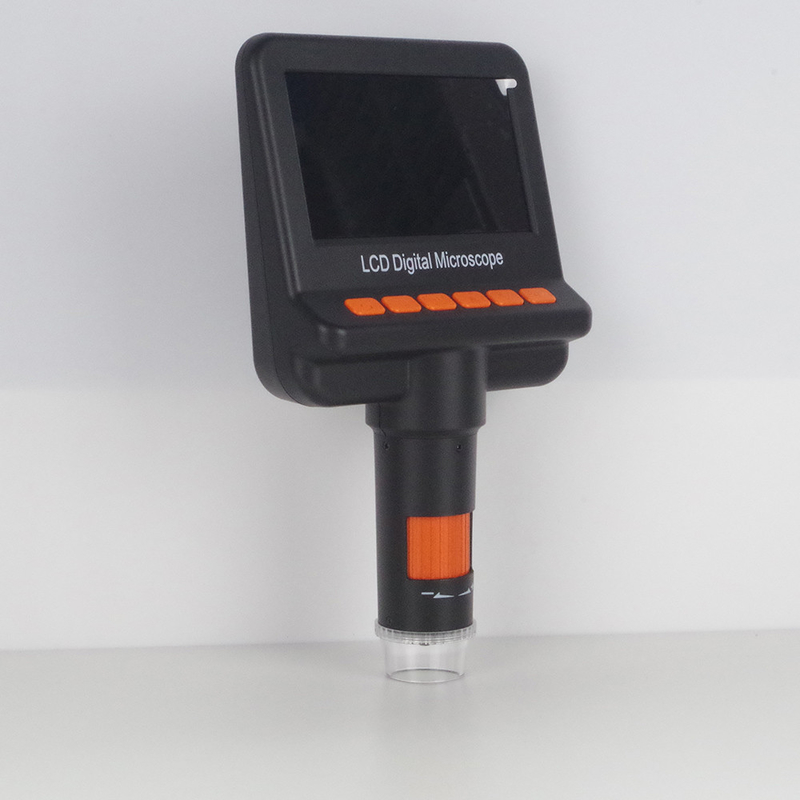

4.3 Inch LCD Digital Microscope With Screen And Adjustable Stand For PCB Repair
1: This LCD digital microscope with screen support hook up to PC or laptop for a larger view,if you want observe in larger scale and facilitate data sharing and analysis,you just need connect it to your laptop or PC by usb cable, very easy.
2: This multi-functional remote control allows you to easily take photos, record videos, zoom in/out, and set up basic microscope settings.
Product Specification:
| Model | Model Name | DM041 |
| Features | Screen Size | 4.3 inch |
| Connection | 4.3 inch LCD / USB 2.0 to PC | |
| Image Sensor | 0.3 Megapixel 1/6.5" CMOS Image Sensor | |
| Photo Resolution | 2MP / 1.3MP / VGA | |
| Video Resolution | 1280*720 / 640*480 / 320*240 | |
| Magnification Ratio | Real 10x~150x, Up To 500x By Digital Zoom(Based On 21 inch Display) | |
| Light Source | 8Pcs SMT White LED | |
| LED Brightness Adjustable | Yes | |
| Focus Range | From 0mm to 55mm on metal stand | |
| Lens Type | Optical Glass | |
| Advantage | Switchable Polarizer | Yes |
| Brand Name | Toproview / Neutral / Customization | |
| Customized Support | OEM / ODM / OBM | |
| Certification | CE / FCC / RoHS | |
| Focus Mode | Manual Continuous Focus | |
| Rechargeable And Replaceable Battery | 1050mAh BL-5C Lithium-Ion | |
| SD Card Slot | Support SD Card Storage Up To 32G (Not Included In The Neutral Package) | |
| Warranty | 1 Year | |
| Software | PC Software | DigiCapture Pro (Customizable) |
| PC Software Supported Operation Systems | Windows 7 / 8 / 10 , macOS 11.2.1 or above | |
| PC Software OSD Language | There Are 16 Languages Built In The Software | |
| PC Software With Professional Measurement | Yes | |
| PC Software Support Four Display Concurrently | Yes | |
| PC Software Support Photo,Video Recording,Timed Photo And Timed Video | Yes | |
| PC Software Support Plug and Play | Yes | |
| Package details | Accessories | CD, USB Cable,Rechargeable Battery,Calibration Ruler, Metal Stand |
| Body Dimension | 235x123x65mm | |
| Gross Weight | 0.2KG | |
| Gift Box | 27.5*18.5*10.5cm | |
| Gross Weight | 0.75KG | |
| Carton Box | 46.5*33*37.5cm | |
| Gross Weight | 13.5KG | |
| Carton | 16Pcs |
Product Advantages:
1: Specially designed for electronic repairs and solder(phone, PC, watch etc ), QC inspection, insect and plants observations, fabric weaving, coins and tiny electrical components inspection etc.
2: This LCD coin microscope can adjust and magnify tiny object from 10X-500X,you can clearly see the metal surface of error coins,the lines of plants' surface, the joints of insects, the surface of skin and each interface of PCB. It can bring an amazing micro world to you and your kids.
Product picture:
