Shenzhen Toproview Technology Co., Ltd

12MP Microscope Digital Lcd 1200X Video Microscope For Pcb Inspection Mac

Product Details:
Place of Origin: Shenzhen , China
Brand Name: Neutral / Customization
Certification: CE/FCC/RoHS
Model Number: DM042
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Neutral / Customization Giftbox / 16pcs per carton
Delivery Time: 6~36 working days
Payment Terms: L/C, T/T, Western Union, D/A, D/P
Supply Ability: 60000pcs/month
  • Detail Information
  • Product Description

Detail Information

Model Name: DM042 Switchable Polarizer: Yes
Brand Name: Toproview / Neutral / Customization Light Source: 8Pcs SMT White LED
PC Software With Professional Measurement: Yes Magnification Ratio: Real 10x~250x, Up To 1200x By Digital Zoom(Based On 21 Inch Display)
High Light:

12MP Microscope Digital Lcd


Microscope Digital Lcd 1200X


1200X Video Microscope For Pcb Inspection

Product Description

LCD Digital Microscope With 12MP Resolution And 1200X Magnification Compatible with Mac And Windows Computer


1: This LCD digital microscope also supports connecting to PC via usb cable and view object on bigger PC display.

2: This new digital usb microscope we use adjustable aluminum alloy bracket instand of old version plastic bracket,make you view the object more steadily and accurately.


Product Specification:

Model Model Name DM042
Features Screen Size 4.3 inch
Connection 4.3 inch LCD / USB 2.0 to PC / HDMI Port To Monitor / TV Port To Monitor
Image Sensor 5 Megapixel 1/2.8" CMOS Image Sensor
Photo Resolution 12MP / 10MP / 8MP / 5MP / 3MP / 2MP
Video Resolution 1920*1080 / 1280*720
Magnification Ratio Real 10x~250x, Up To 1200x By Digital Zoom(Based On 21 inch Display)
Light Source 8Pcs SMT White LED
LED Brightness Adjustable Yes
Focus Range From 0mm to 55mm on metal stand
Lens Type Optical Glass
Advantage Switchable Polarizer Yes
Brand Name Toproview / Neutral / Customization
Customized Support OEM / ODM / OBM
Certification CE / FCC / RoHS
Focus Mode Manual Continuous Focus
Rechargeable And Replaceable Battery 1050mAh BL-5C Lithium-Ion
SD Card Slot Support SD Card Storage Up To 32G (Not Included In The Neutral Package)
Warranty 1 Year
Software PC Software DigiCapture Pro (Customizable)
PC Software Supported Operation Systems Windows 7 / 8 / 10 , macOS 11.2.1 or above
PC Software OSD Language There Are 16 Languages Built In The Software
PC Software With Professional Measurement Yes
PC Software Support Four Display Concurrently Yes
PC Software Support Photo,Video Recording,Timed Photo And Timed Video Yes
PC Software Support Plug and Play Yes
Package details Accessories CD, USB Cable,HDMI Cable,TV Cable,Rechargeable Battery,Calibration Ruler, Metal Stand
Body Dimension 235x123x65mm
Gross Weight 0.2KG
Gift Box 27.5*18.5*10.5cm
Gross Weight 0.85KG
Carton Box 46.5*33*37.5cm
Gross Weight 14.7KG
Carton 16Pcs


Product Advantages:

1: The LCD Digital Microscope Designed to encourage a curiosity and a strive to learn more, this versatile video microscope is easy-to-use and powerful enough for any kids who shows mild interest in science.

2: This Handheld microscope can be used without holder. It's perfect for observing little living things outside.


Product picture:

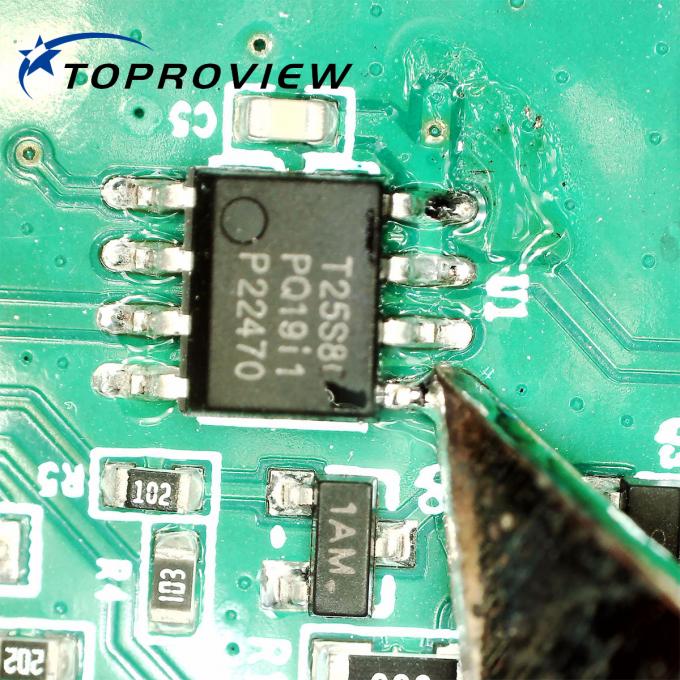

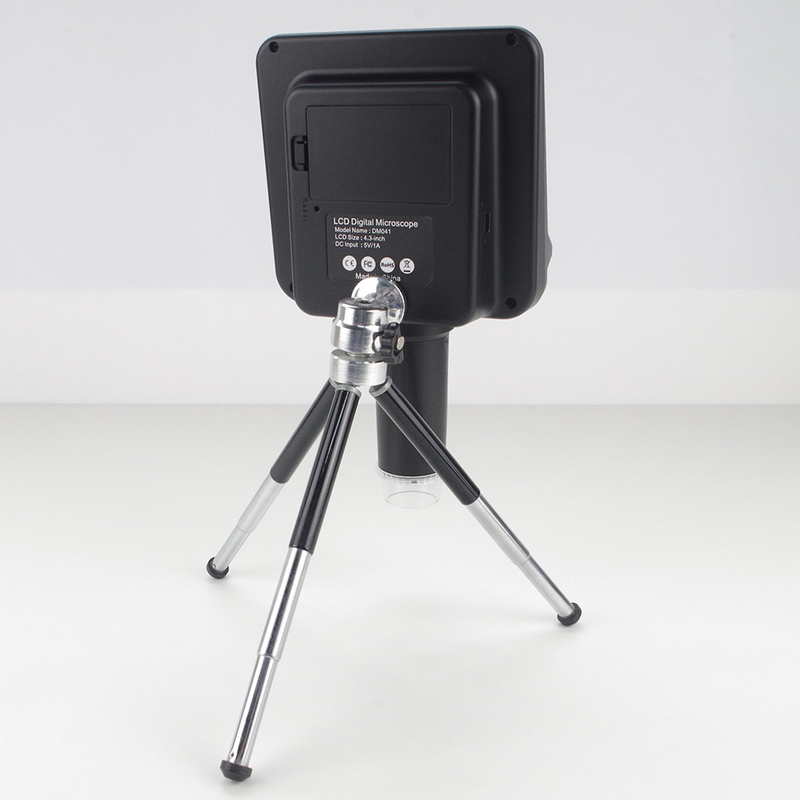

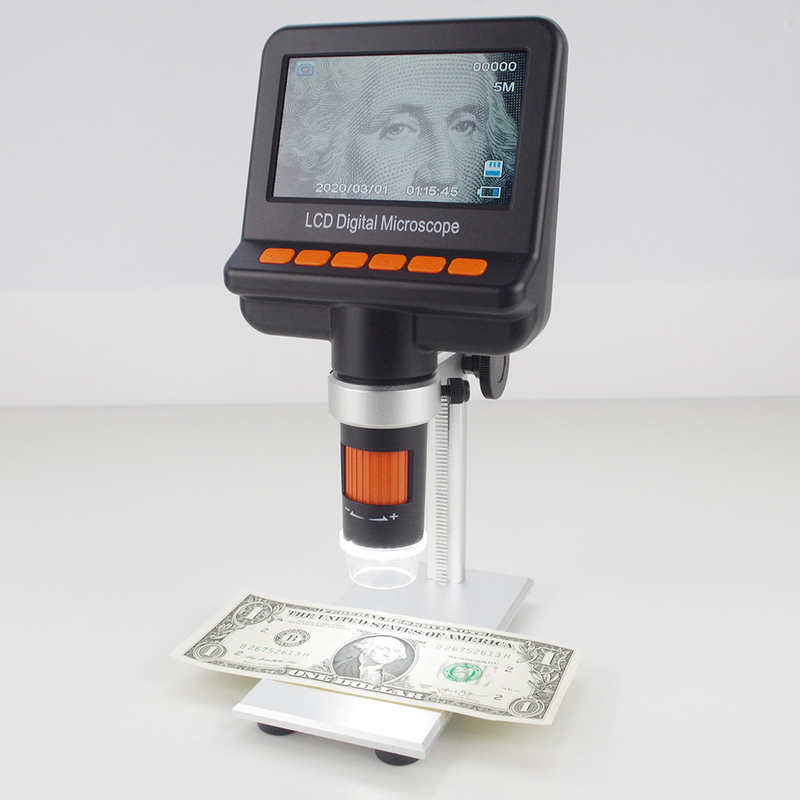

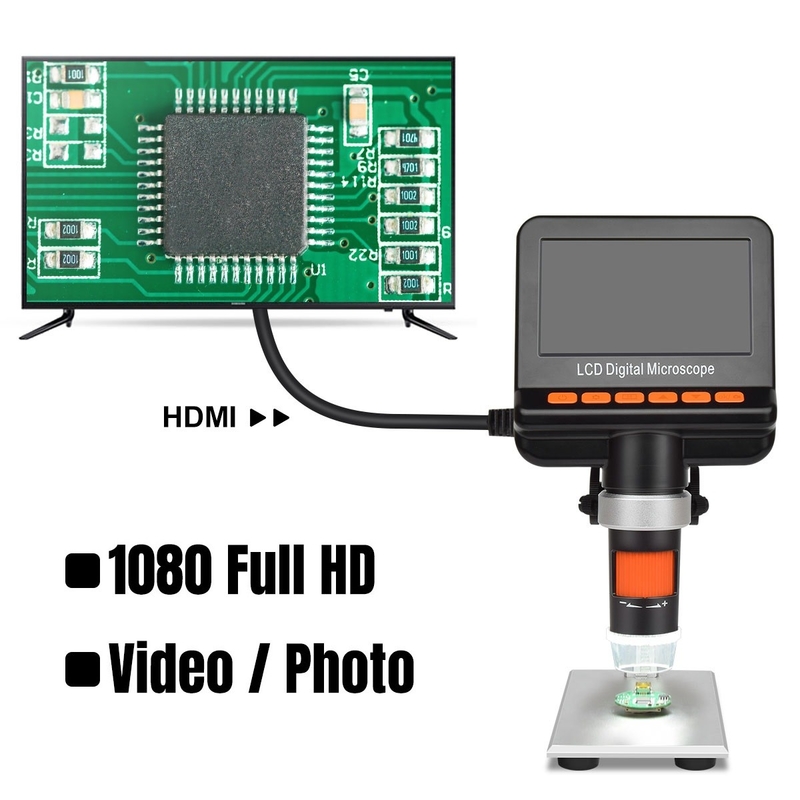

12MP Microscope Digital Lcd 1200X Video Microscope For Pcb Inspection Mac 0



12MP Microscope Digital Lcd 1200X Video Microscope For Pcb Inspection Mac 1
